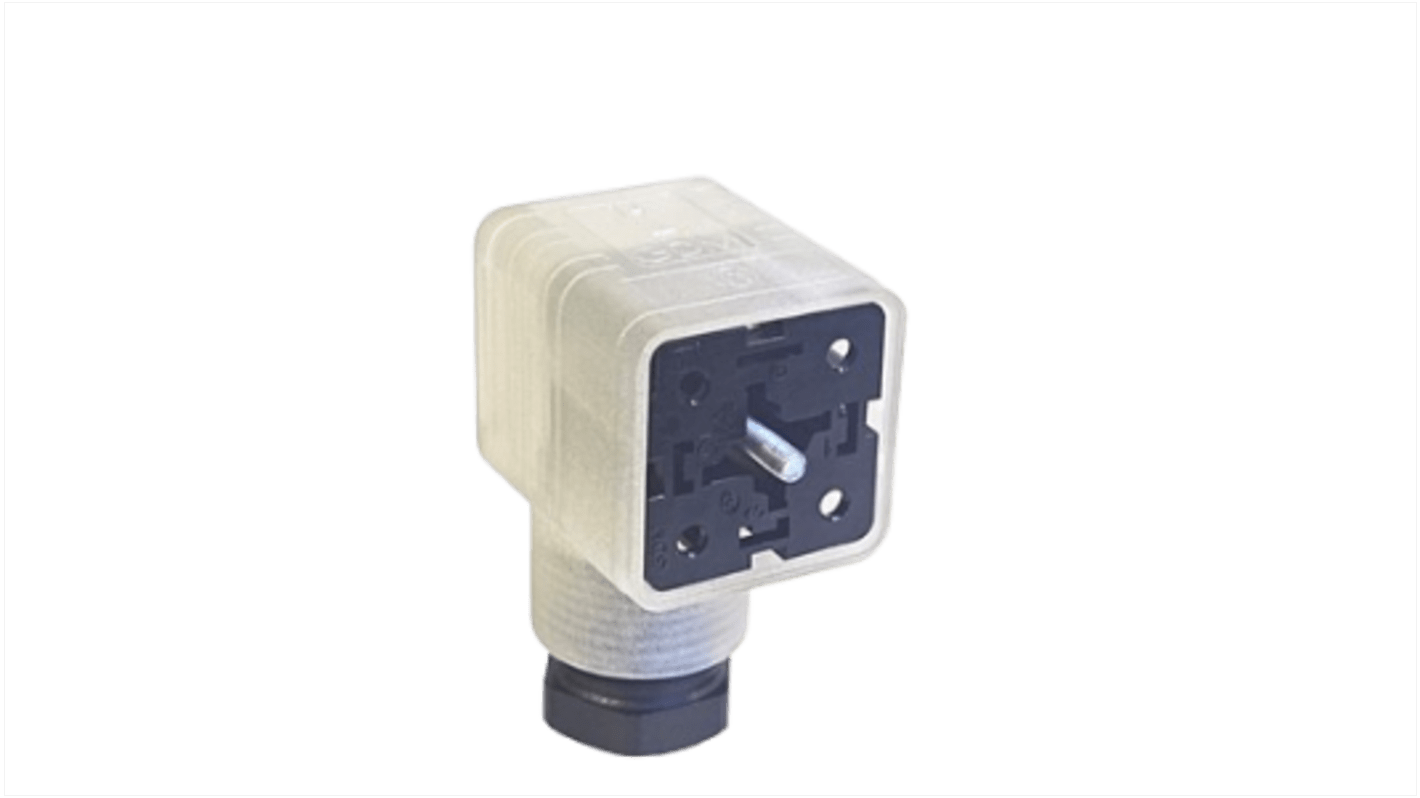

Hirschmann GDML 2P+E DIN 43650 A, Female Solenoid Valve Connector, with Indicator Light, 120 V Voltage

GDML series valve connectors are suitable for use in machine building and tooling, equipment manufacturing, designed to facilitate power and signal transmission for components such as magnetic valves, pressure transducers flow monitors and temperature sensors. These durable valve connectors are not affected by voltage surges or electro magnetic interference.

Electronic insert

These connectors are only suitable for power coupling to a fixing point or item of plant, or for internal wiring of equipment.

When you need a reliable way to link solenoid valves to pneumatic circuits in the field, reach for this solenoid valve connector from Belden Hirschmann. Its 120V AC/DC voltage rating and 8A current rating make it suitable for high-powered systems. It stands up to industrial vibrations, heat and harsh chemicals thanks to the sturdy glass-reinforced polyamide housing. Thanks to an IP65 rating, you can count on this durable DIN 43650 connector to keep cable connections safe from dust and water spray.

• Performs in harsh conditions, thanks to an operating temperature range between -40°C and +80°C
• Screw-down terminals for straightforward installation
• Flame-retardant materials protect circuits in case of a fire

• Factory automation
• Renewable energy generation
• Transportation industries

The versatile unit accepts cables in a broad diameter range from 4 to 10mm.

IEC60529, DIN EN 175 301-803-A

Type A DIN 43650 Hirschmann

A comprehensive range of cable sockets, appliance connector bases and accessories typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.,All Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.,All are supplied complete with centre retaining screw, while plug bases are solder terminated and supplied with fixing screws. Suitable gasket to provide IP65 sealing, stock-no. 156-4729. Supplied in bags of 10
