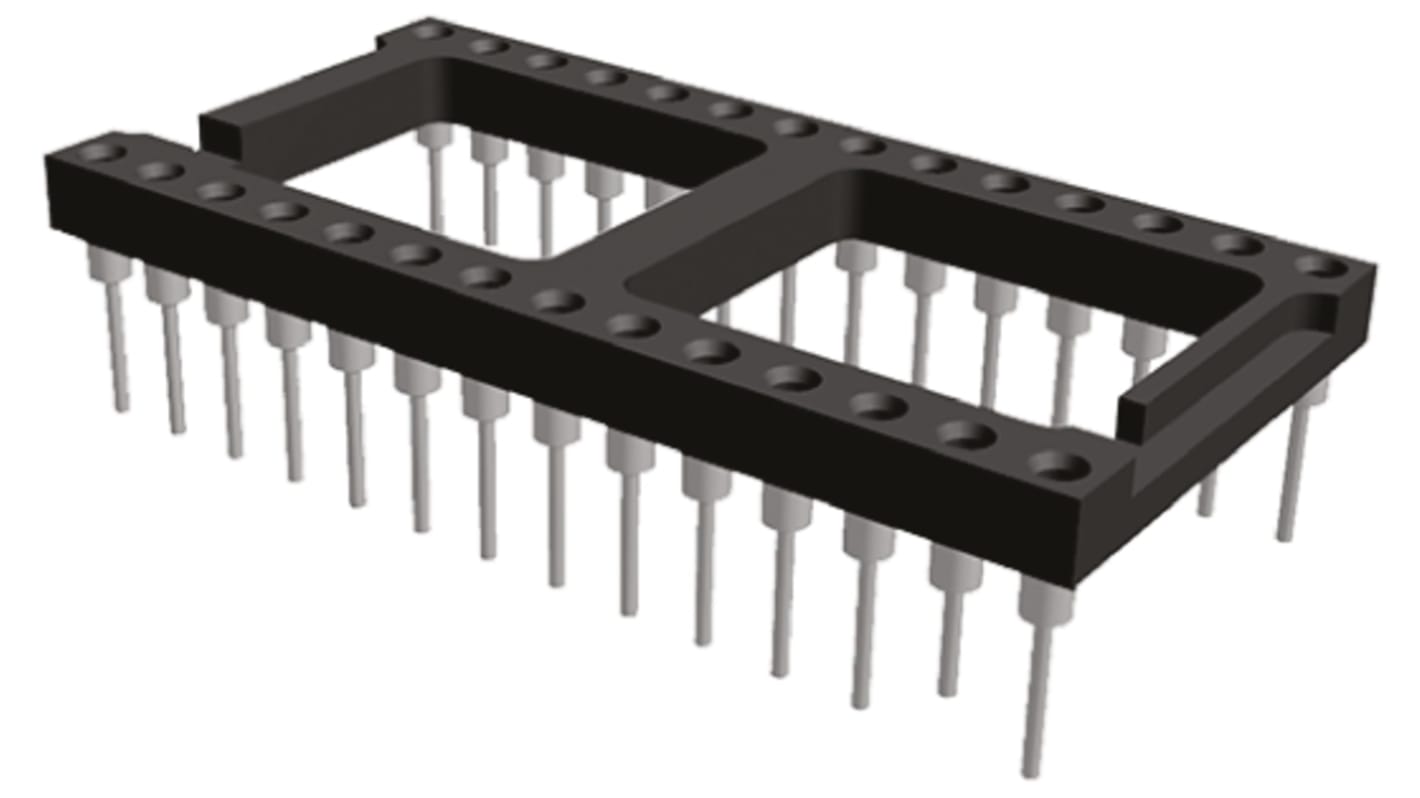

TE Connectivity, Economy 800 2.54mm Pitch Vertical 28 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A
- RS Stock No.:
- 745-5050
- Mfr. Part No.:
- 828-AG10D
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 745-5050
- Mfr. Part No.:
- 828-AG10D
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 28 | |
| Mounting Type | Through Hole | |
| Pin Type | Turned | |
| Pitch | 2.54mm | |
| Row Width | 15.24mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Current Rating | 3A | |
| Orientation | Vertical | |
| Length | 35.56mm | |
| Width | 17.78mm | |
| Depth | 2.67mm | |
| Dimensions | 35.56 x 17.78 x 2.67mm | |
| Series | Economy 800 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Housing Material | PET | |
| Contact Material | Beryllium Copper | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 28 | ||
Mounting Type Through Hole | ||
Pin Type Turned | ||
Pitch 2.54mm | ||
Row Width 15.24mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Current Rating 3A | ||
Orientation Vertical | ||
Length 35.56mm | ||
Width 17.78mm | ||
Depth 2.67mm | ||
Dimensions 35.56 x 17.78 x 2.67mm | ||
Series Economy 800 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Housing Material PET | ||
Contact Material Beryllium Copper | ||
TE Connectivity PCB DIP Sockets with Machined Contacts - Economy 800 Series
Economy 800 series PCB DIP sockets with open ladder style frame and 2.54mm centerline. These PCB DIP IC sockets mount vertically and have machined gold plated contacts with four fingered mating.
Anti-wicking, machined body design, prevents flux and solder contamination
Gold plated beryllium copper contacts for prolonged durability
Low-profile open-framed insulator for cooling, cleaning and inspection
Gold plated beryllium copper contacts for prolonged durability
Low-profile open-framed insulator for cooling, cleaning and inspection
