TE Connectivity 2.54mm Pitch Vertical 28 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 3A

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

TE Connectivity 800 Series Open Frame DIP Socket Connectors

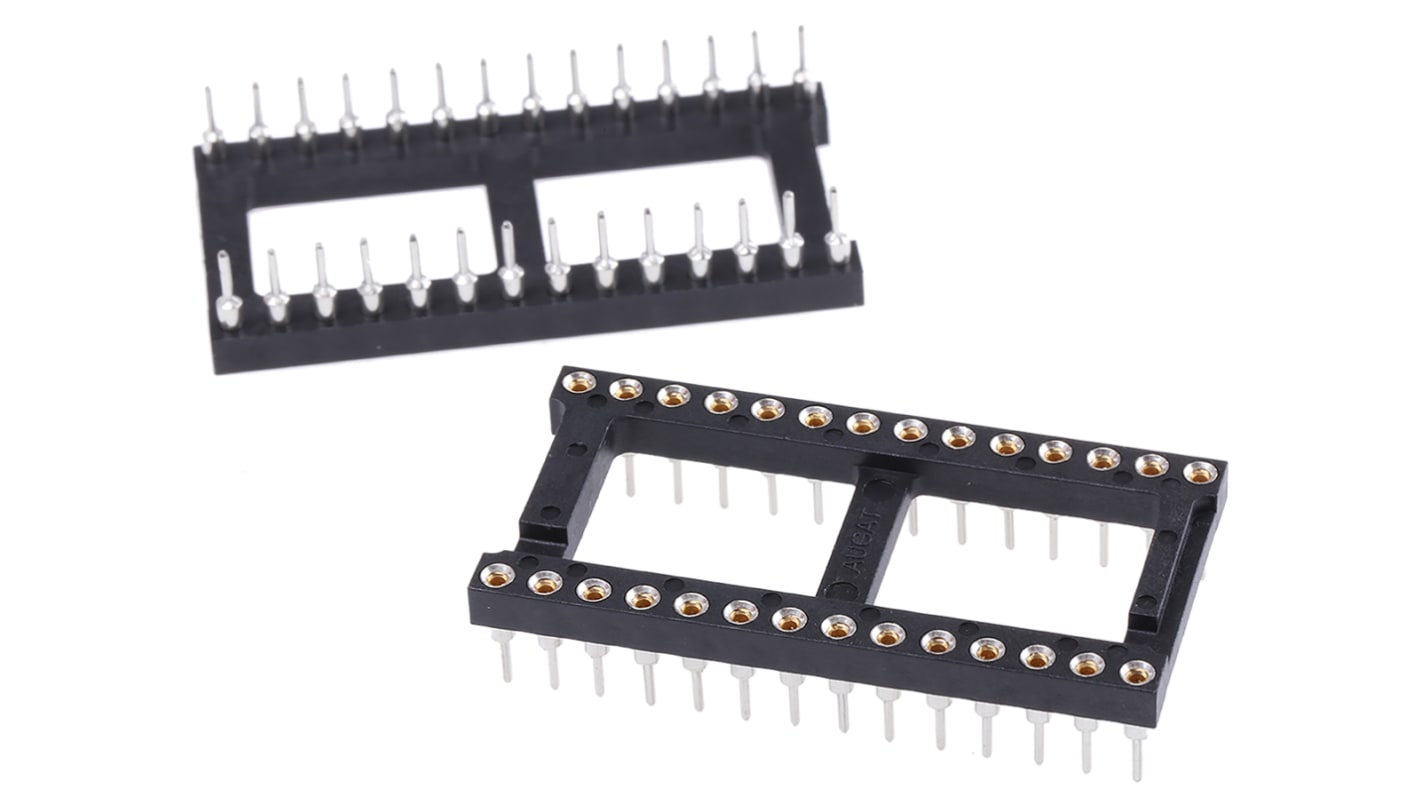

800 Series DIP socket connectors with a standard profile, ladder style open frame and 2.54mm centreline. These 800 series PCB through hole mount DIP sockets have gold plated stamped and formed contacts and a 2.67mm height above the PCB.
Stock number 680-1528 is 16 way and has 7.62mm row to row spacing
Stock number 680-3458 is 28 way and has 15.24mm row to row spacing

Specifications
Attribute Value
Number of Contacts 28
Mounting Type Through Hole
Pin Type Stamped
Pitch 2.54mm
Row Width 15.24mm
Frame Type Open Frame
Termination Method Solder
Contact Plating Gold
Current Rating 3A
Orientation Vertical
Length 35.56mm
Width 4.57mm
Depth 17.78mm
Dimensions 35.56 x 4.57 x 17.78mm
Maximum Operating Temperature +105°C
Contact Material Beryllium Copper
Housing Material PET
Minimum Operating Temperature -55°C
65 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 2.20
(exc. VAT)
£ 2.64
(inc. VAT)
Units
Per unit
Per Pack*
5 - 70
£2.20
£11.00
75 - 245
£1.72
£8.60
250 - 495
£1.442
£7.21
500 - 1245
£1.392
£6.96
1250 +
£1.188
£5.94
*price indicative
