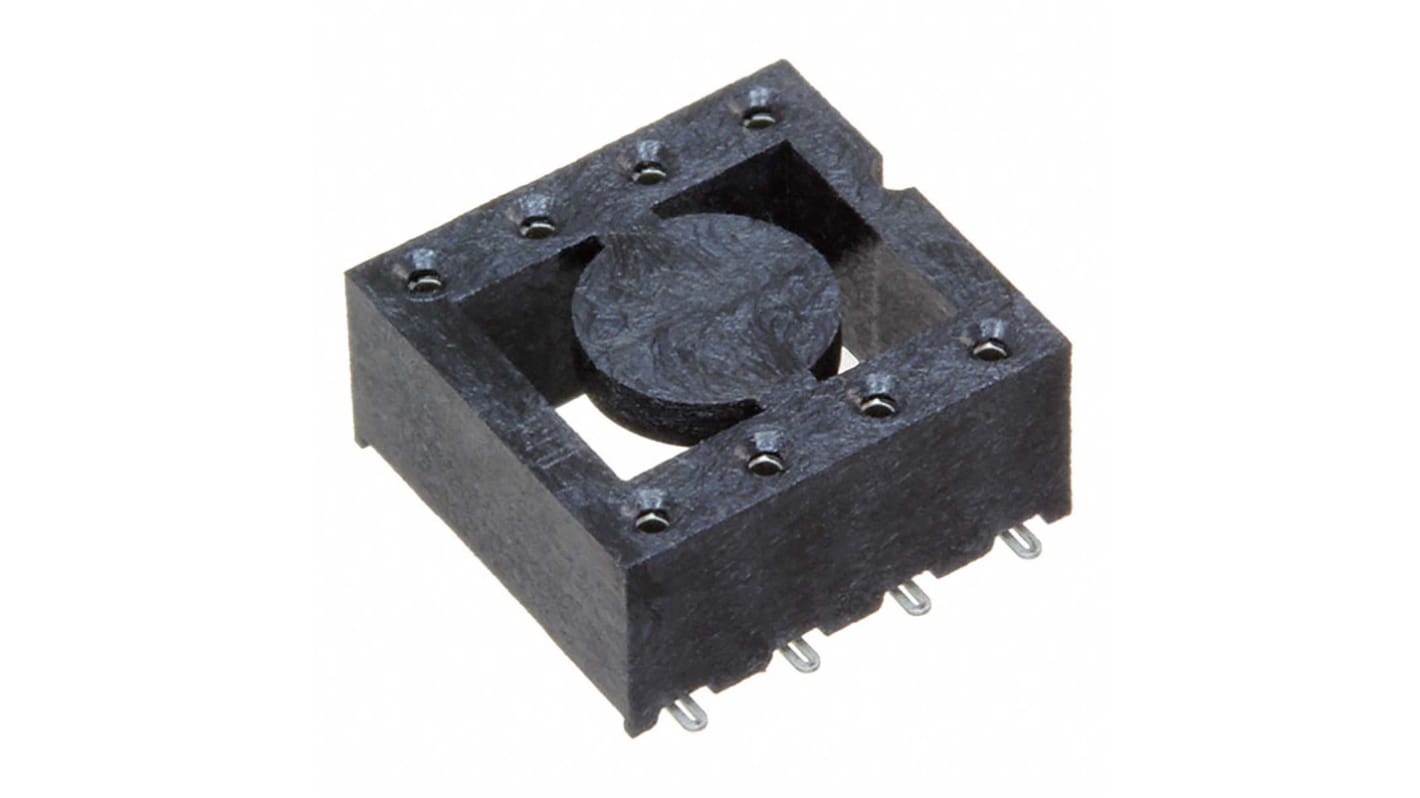

Samtec, ICF 2.54mm Pitch Vertical 8 Way, PCB Mount Stamped Pin Open Frame IC Dip Socket

  • RS Stock No. 197-6815
  • Mfr. Part No. ICF-308-T-O
  • Brand Samtec
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The Samtec ICA series screw machine DIP socket with open end and standard profile. It has tin plating.

Available up to 24 contacts per row
Dual row design
Surface mount

Specifications
Attribute Value
Number of Contacts 8
Mounting Type PCB Mount
Pin Type Stamped
Pitch 2.54mm
Row Width 7.62mm
Frame Type Open Frame
Orientation Vertical
Series ICF
Available to back order for despatch 30/09/2020
Price Each (In a Tube of 56)
£ 0.647
(exc. VAT)
£ 0.776
(inc. VAT)
Units
Per unit
Per Tube*
56 - 224
£0.647
£36.232
280 - 504
£0.587
£32.872
560 +
£0.511
£28.616
*price indicative
