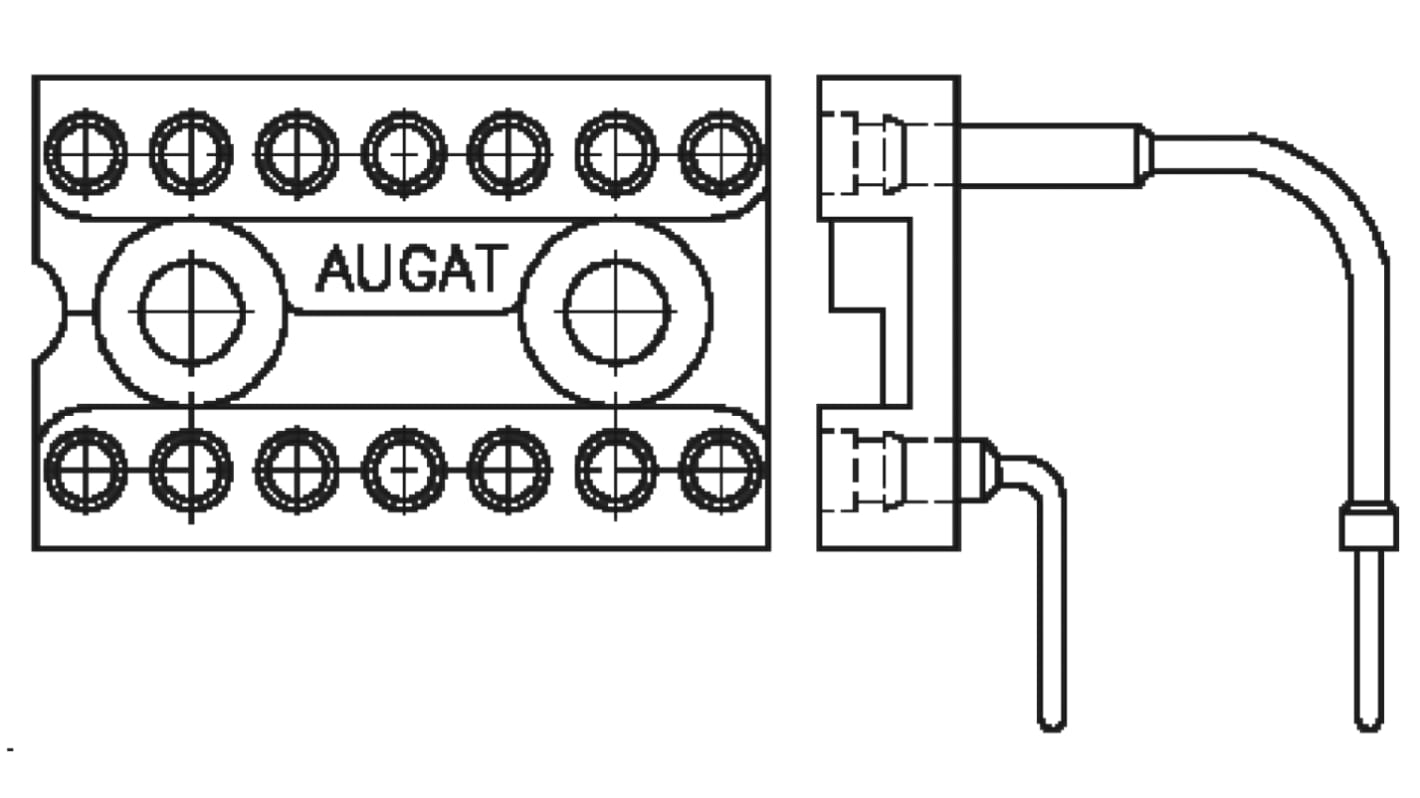

TE Connectivity 2.54mm Pitch Right Angle 14 Way, Through Hole Turned Pin Closed Frame IC Dip Socket, 3A
- RS Stock No.:
- 161-4504
- Mfr. Part No.:
- 1825088-3
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 161-4504
- Mfr. Part No.:
- 1825088-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 14 | |
| Mounting Type | Through Hole | |
| Pin Type | Turned | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Closed Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold, Tin | |
| Current Rating | 3A | |
| Orientation | Right Angle | |
| Length | 17.78mm | |
| Width | 11.43mm | |
| Depth | 13.2mm | |
| Dimensions | 17.78 x 11.43 x 13.2mm | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Contact Material | Beryllium Copper | |
| Housing Material | PET | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 14 | ||
Mounting Type Through Hole | ||
Pin Type Turned | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Closed Frame | ||
Termination Method Solder | ||
Contact Plating Gold, Tin | ||
Current Rating 3A | ||
Orientation Right Angle | ||
Length 17.78mm | ||
Width 11.43mm | ||
Depth 13.2mm | ||
Dimensions 17.78 x 11.43 x 13.2mm | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Contact Material Beryllium Copper | ||
Housing Material PET | ||
- COO (Country of Origin):
- CH
Standard, Gold Plated - TE Connectivity
These sockets have precision four-fingered inner contacts for high reliability.
Precision four-finger inner contact provides concentric funnel entry for easy flat and round lead insertion
"X" and "Y" Stackable
Low profile
Accommodates rectangular or round IC leads
Non-wicking, closed bottom sleeve gives 100% protection against flux and solder contamination
Recognized under the Component Program of Underwriters Laboratories, Inc. file No. E111362
Beryllium copper inner contact for maximum mechanical and electrical performance
"X" and "Y" Stackable
Low profile
Accommodates rectangular or round IC leads
Non-wicking, closed bottom sleeve gives 100% protection against flux and solder contamination
Recognized under the Component Program of Underwriters Laboratories, Inc. file No. E111362
Beryllium copper inner contact for maximum mechanical and electrical performance
