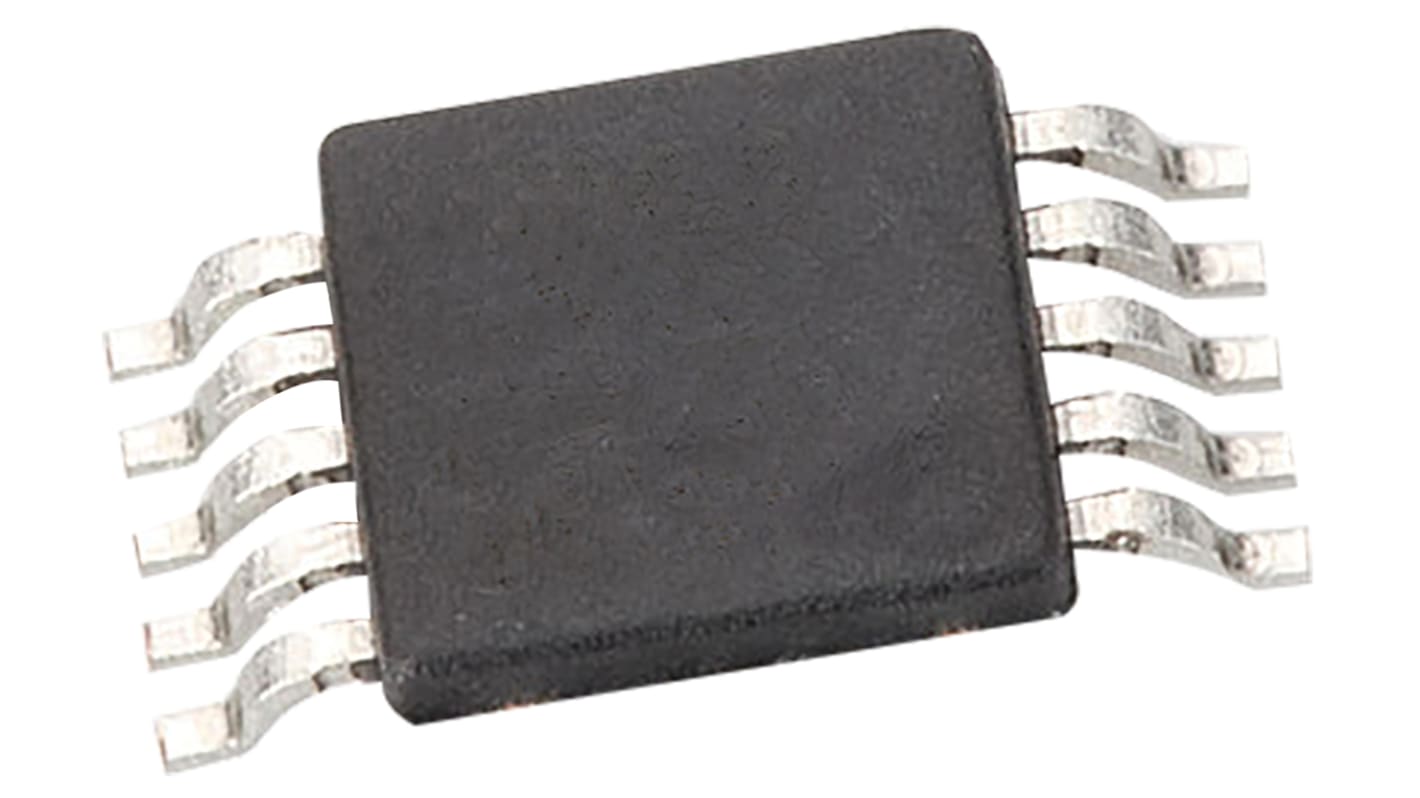

Analog Devices DAC 8 bit- 1 Microwire, SPI, QSPI, 2.5 Msps, 10-Pin MSOP
- RS Stock No.:
- 538-5233
- Mfr. Part No.:
- AD5426YRMZ
- Brand:
- Analog Devices
Subtotal (1 unit)*
£2.17
(exc. VAT)
£2.60
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 6 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £2.17 |
*price indicative
- RS Stock No.:
- 538-5233
- Mfr. Part No.:
- AD5426YRMZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Product Type | DAC | |
| Architecture | R-2R, Resistor String | |
| Resolution | 8 bit | |
| Number of Channels | 1 | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Pin Count | 10 | |
| Minimum Supply Voltage | 3.3V | |
| Sampling Rate | 2.5Msps | |
| Maximum Supply Voltage | 5.5V | |
| Interface Type | Microwire, SPI, QSPI | |
| Settling Time | 0.16μs | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Voltage Reference | External | |
| Standards/Approvals | No | |
| Height | 0.95mm | |
| Length | 3.1mm | |
| Automotive Standard | No | |
| Output Type | Analogue Current | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Product Type DAC | ||
Architecture R-2R, Resistor String | ||
Resolution 8 bit | ||
Number of Channels 1 | ||
Mount Type Surface | ||
Package Type MSOP | ||
Pin Count 10 | ||
Minimum Supply Voltage 3.3V | ||
Sampling Rate 2.5Msps | ||
Maximum Supply Voltage 5.5V | ||
Interface Type Microwire, SPI, QSPI | ||
Settling Time 0.16μs | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Voltage Reference External | ||
Standards/Approvals No | ||
Height 0.95mm | ||
Length 3.1mm | ||
Automotive Standard No | ||
Output Type Analogue Current | ||
Digital to Analogue Converters 8 Bit, Analog Devices
Digital to Analogue Converters - Analog Devices
