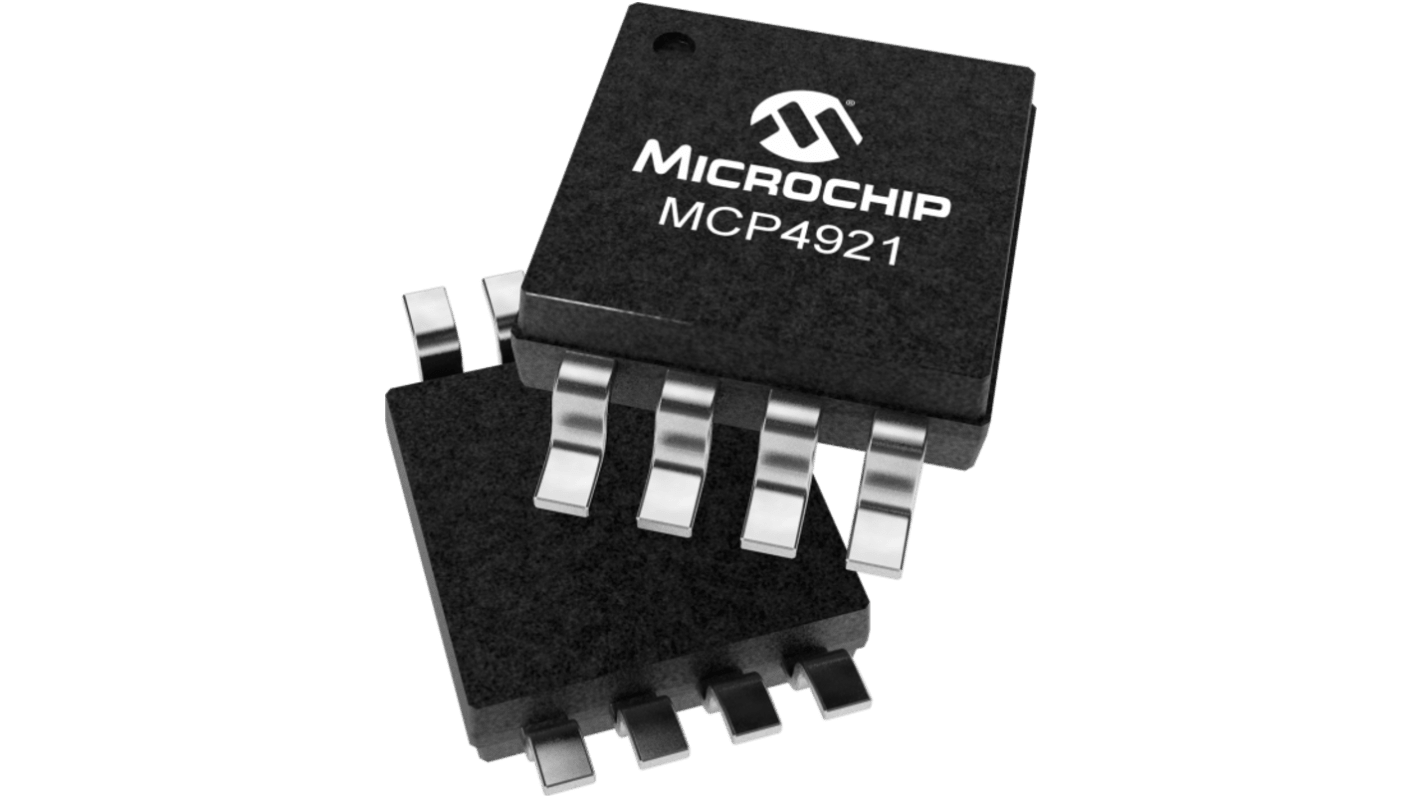

Microchip, DAC 12 bit-, 20MHz, 1%FSR SPI Serial, 8-Pin SOIC
- RS Stock No.:
- 333-020
- Mfr. Part No.:
- MCP4921T-E/SN
- Brand:
- Microchip
Subtotal (1 reel of 3300 units)*
£5,478.00
(exc. VAT)
£6,567.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3300 + | £1.66 | £5,478.00 |
*price indicative
- RS Stock No.:
- 333-020
- Mfr. Part No.:
- MCP4921T-E/SN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Architecture | Resistor String | |
Resolution | 12 bit | |
Conversion Rate | 20MHz | |
Full Scale Error | 1%FSR | |
Integral Nonlinearity Error | 12LSB | |
Number of DAC Channels | 1 | |
Package Type | SOIC | |
Pin Count | 8 | |
Digital Interface Type | SPI Serial | |
Select all | ||
---|---|---|
Brand Microchip | ||
Architecture Resistor String | ||
Resolution 12 bit | ||
Conversion Rate 20MHz | ||
Full Scale Error 1%FSR | ||
Integral Nonlinearity Error 12LSB | ||
Number of DAC Channels 1 | ||
Package Type SOIC | ||
Pin Count 8 | ||
Digital Interface Type SPI Serial | ||
The Microchip Digital to Analogue Converter is a single channel 12 bit DAC with an external voltage reference pin and SPI interface. It offers high accuracy and low power consumption and is available in various packages. These devices provide very high accuracy and low noise performance, and are suitable for consumer and industrial applications, such as set point control, offset adjustment and sensor calibration applications. The low power consumption and small package options make these devices very attractive for many portable and battery powered applications.
Single channel voltage output
2.7V to 5.5V operation
Operating current 175μA
External voltage reference pin
Output settling time 4.5 μs
SPI interface
2.7V to 5.5V operation
Operating current 175μA
External voltage reference pin
Output settling time 4.5 μs
SPI interface
