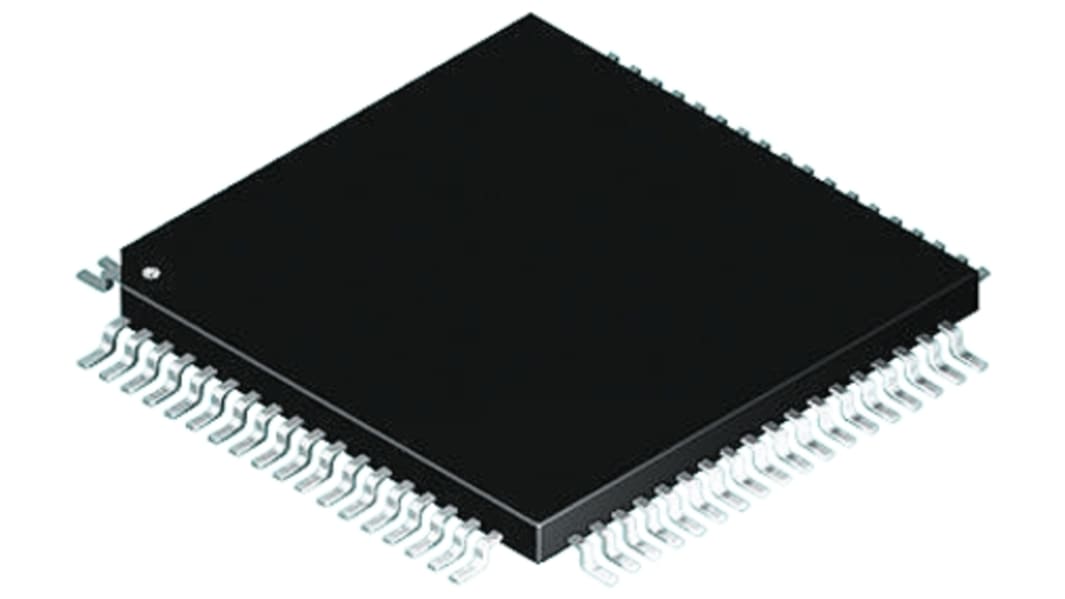

DSPIC30F6014-30I/PF Microchip, 16 bit Digital Signal Processor 30 MHz 144kB FLASH 80-Pin TQFP
- RS Stock No.:
- 823-7770
- Mfr. Part No.:
- DSPIC30F6014-30I/PF
- Brand:
- Microchip
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 823-7770
- Mfr. Part No.:
- DSPIC30F6014-30I/PF
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Maximum Clock Frequency | 30MHz | |
| Product Type | Digital Signal Processor | |
| Device Million Instructions per Second | 30MIPS | |
| Data Bus Width | 16bit | |
| RAM Size | 8.192kB | |
| Instruction Set Architecture | RISC | |
| Program Memory Size | 144kB | |
| Program Memory Type | FLASH | |
| Minimum Supply Voltage | 2.5V | |
| Maximum Supply Voltage | 5.5V | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -40°C | |
| Package Type | TQFP | |
| Number of ADCs | 1 | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 80 | |
| Standards/Approvals | No | |
| Height | 1.05mm | |
| Length | 14mm | |
| Width | 14mm | |
| Number of Timers | 5 | |
| Timer Resolution | 16bit | |
| Number of PWM Units | 8 | |
| ADC Resolution | 12bit | |
| Automotive Standard | No | |
| ADC Channels | 16 | |
| PWM Resolution | 16bit | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Maximum Clock Frequency 30MHz | ||
Product Type Digital Signal Processor | ||
Device Million Instructions per Second 30MIPS | ||
Data Bus Width 16bit | ||
RAM Size 8.192kB | ||
Instruction Set Architecture RISC | ||
Program Memory Size 144kB | ||
Program Memory Type FLASH | ||
Minimum Supply Voltage 2.5V | ||
Maximum Supply Voltage 5.5V | ||
Mount Type Surface | ||
Minimum Operating Temperature -40°C | ||
Package Type TQFP | ||
Number of ADCs 1 | ||
Maximum Operating Temperature 85°C | ||
Pin Count 80 | ||
Standards/Approvals No | ||
Height 1.05mm | ||
Length 14mm | ||
Width 14mm | ||
Number of Timers 5 | ||
Timer Resolution 16bit | ||
Number of PWM Units 8 | ||
ADC Resolution 12bit | ||
Automotive Standard No | ||
ADC Channels 16 | ||
PWM Resolution 16bit | ||
- COO (Country of Origin):
- PH
dsPIC30F Digital Signal Controller
The dsPIC30F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The dsPIC30F is best suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate SMPS peripherals, motor control peripherals and a Codec interface that enable efficient digital power converters, advanced motor control algorithms and speech and audio applications. Small package DSCs with high performance ADC are well suited for smart sensing applications.
