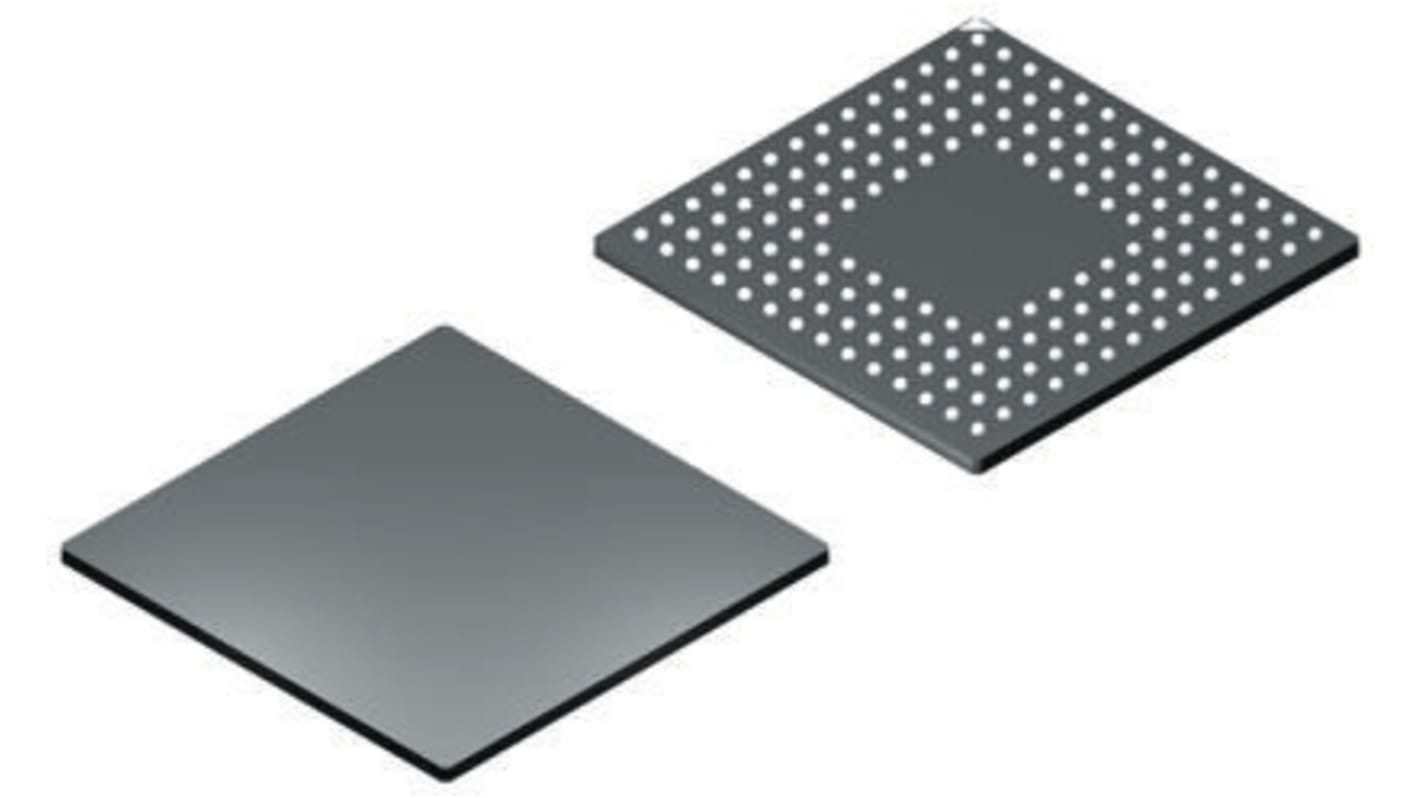

ADSP-BF533SBBCZ500 Analog Devices Blackfin, 16bit Digital Signal Processor 500MHz ROM, SRAM 160-Pin CSP BGA
- RS Stock No.:
- 697-7818
- Mfr. Part No.:
- ADSP-BF533SBBCZ500
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 697-7818
- Mfr. Part No.:
- ADSP-BF533SBBCZ500
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Maximum Frequency | 500MHz | |
| Series | Blackfin | |
| Device Million Instructions per Second | 500MIPS | |
| Data Bus Width | 16bit | |
| Instruction Set Architecture | Modified Harvard | |
| Program Memory Type | ROM, SRAM | |
| Numeric and Arithmetic Format | Fixed Point | |
| Mounting Type | Surface Mount | |
| Package Type | CSP BGA | |
| Pin Count | 160 | |
| Typical Operating Supply Voltage | 1.2 V, 1.8 V, 2.5 V, 3.3 V | |
| Maximum Operating Temperature | +85 °C | |
| Length | 12mm | |
| Height | 1.21mm | |
| Dimensions | 12 x 12 x 1.21mm | |
| Minimum Operating Temperature | -40 °C | |
| Width | 12mm | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Maximum Frequency 500MHz | ||
Series Blackfin | ||
Device Million Instructions per Second 500MIPS | ||
Data Bus Width 16bit | ||
Instruction Set Architecture Modified Harvard | ||
Program Memory Type ROM, SRAM | ||
Numeric and Arithmetic Format Fixed Point | ||
Mounting Type Surface Mount | ||
Package Type CSP BGA | ||
Pin Count 160 | ||
Typical Operating Supply Voltage 1.2 V, 1.8 V, 2.5 V, 3.3 V | ||
Maximum Operating Temperature +85 °C | ||
Length 12mm | ||
Height 1.21mm | ||
Dimensions 12 x 12 x 1.21mm | ||
Minimum Operating Temperature -40 °C | ||
Width 12mm | ||
Blackfin® Digital Signal Processors
Analog Devices Blackfin® range of 16/32-bit embedded digital signal processors (DSPs) offer software flexibility and scalability for a multitude of convergent applications: multi-format audio, video, voice and image processing, multimode baseband and packet processing, control processing, and real-time security.
