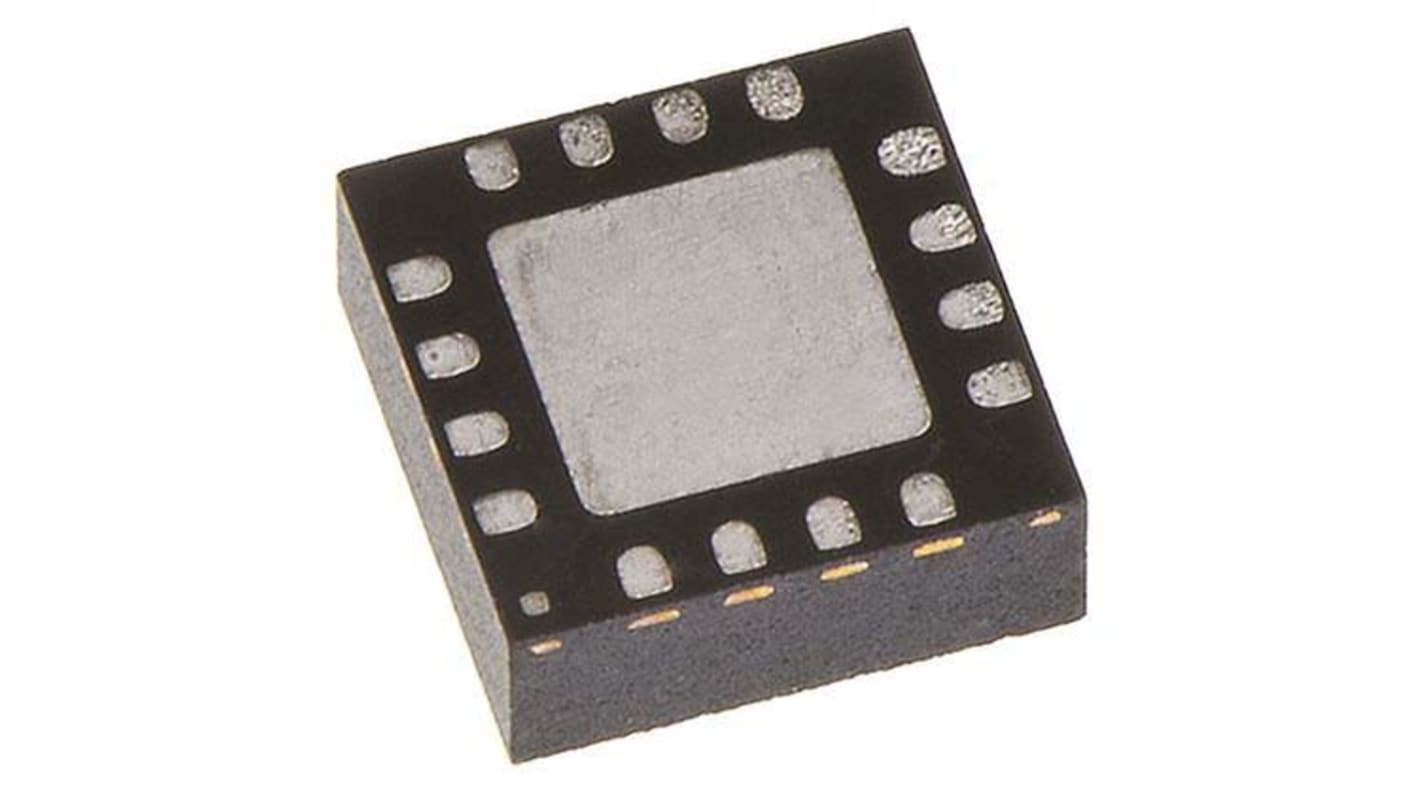

AD8390AACPZ-R7 Analog Devices, 2-Channel Differential Amplifier 45MHz No 16-Pin LFCSP

View all Differential Amplifiers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
153-3196
Mfr. Part No.:
AD8390AACPZ-R7
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Power Supply Type

Dual, Single

Maximum Input Offset Voltage

+3V

Typical Gain Bandwidth Product

45MHz

Output Configuration

Differential

Minimum CMRR

58dB

Number of Channels per Chip

2

Mounting Type

Surface Mount

Package Type

LFCSP

Pin Count

16

Rail to Rail

No

Maximum Supply Current

11 mA

Height

0.75mm

Dimensions

4.1 x 4.1 x 0.75mm

Minimum Operating Temperature

-40 °C

Length

4.1mm

Width

4.1mm

Maximum Operating Temperature

+85 °C

The AD8390A is a high output current, low power consumption differential amplifier. It is particularly well suited for the central office (CO) driver interface in digital subscriber line systems such as ADSL and ADSL2+. In full bias operation, the driver delivers 20.4 dBm output power into low resistance loads while compensating for hybrid and transformer insertion losses and back termination resistors.

Voltage feedback amplifier
Enables high current differential applications
Low power operation
Single- or dual-supply operation from 10 V (± 5 V) up to 24 V (± 12 V)
5.5 mA total quiescent supply current for full power ADSL and ADSL2+ CO applications
Adjustable supply current to minimize power consumption
High output voltage and current drive
400 mA peak output drive current
44 V p-p differential output voltage
Low distortion
High speed: 260 V/μs differential slew rate
