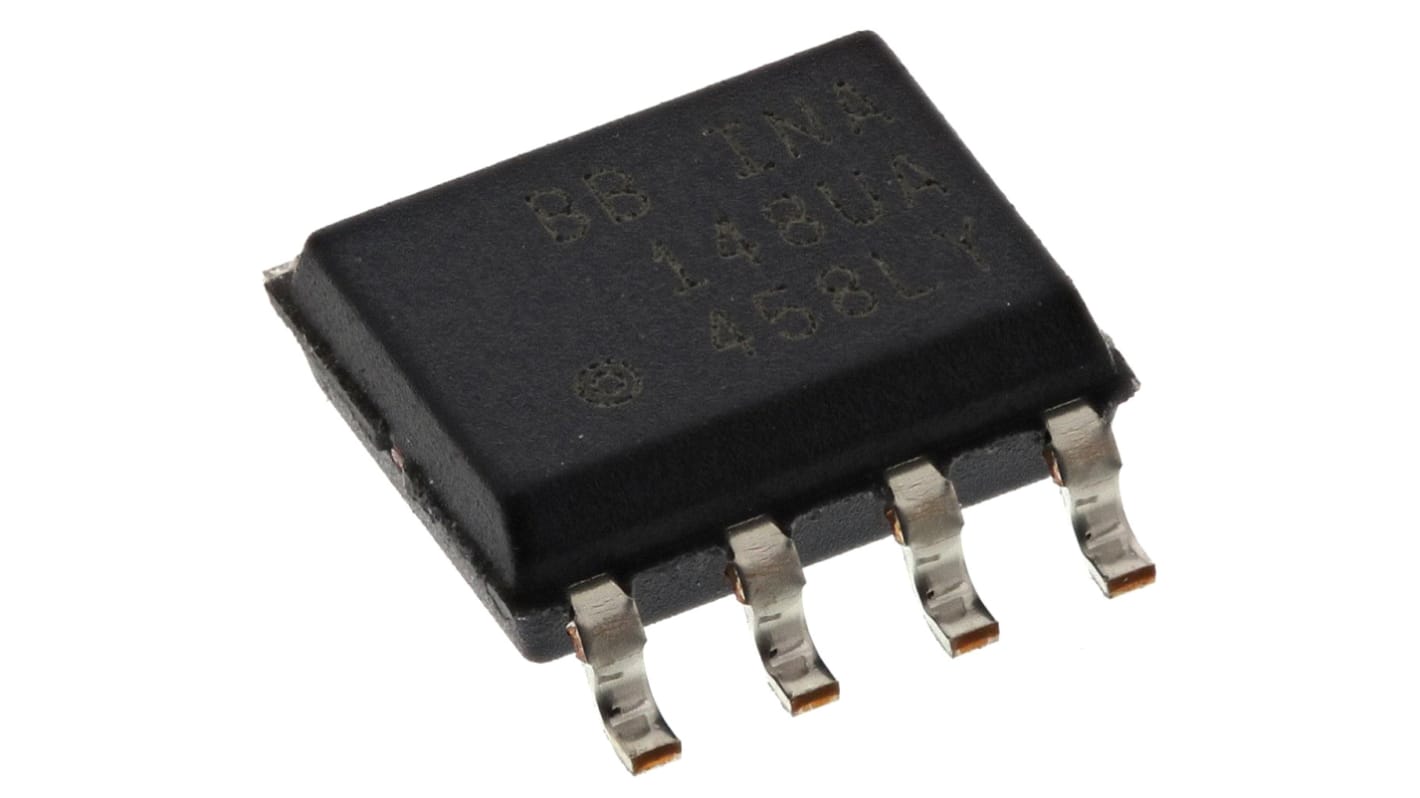

INA148UA Texas Instruments, Differential Amplifier 8-Pin SOIC

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

Differential Amplifiers, Texas Instruments

Differential Amplifiers are operational amplifiers configured to amplify differential input signals but to supress or reject common-mode signals; they incorporate on-chip resistors to define the differential gain.

Instrumentation Amplifiers, Texas Instruments

Instrumentation amplifiers are composite differential amplifier blocks generally incorporating a classic three operational amplifier configuration. They provide high input impedance, very high common-mode rejection and allow differential gain to be accurately set via internal or external resistors. Differential amplifiers offer low DC offset and drift coupled with high open loop gain and low noise and are frequently used in high-precision test and measurement applications and electrically noisy environments.

Specifications
Attribute Value
Power Supply Type Dual, Single
Typical Single Supply Voltage 3 V, 5 V, 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Typical Dual Supply Voltage ±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Maximum Input Offset Voltage 5mV
Maximum Input Resistance 2MΩ
Maximum Voltage Gain 0dB
Minimum CMRR 70dB
Number of Channels per Chip 1
Mounting Type Surface Mount
Package Type SOIC
Pin Count 8
Dimensions 4.9 x 3.91 x 1.58mm
Width 3.91mm
Height 1.58mm
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Length 4.9mm
Available to back order for despatch when stock is available
Price Each (In a Tube of 75)
£ 3.886
(exc. VAT)
£ 4.663
(inc. VAT)
Units
Per unit
Per Tube*
75 - 75
£3.886
£291.45
150 - 300
£3.731
£279.825
375 +
£3.614
£271.05
*price indicative
