Bourdon Dial Thermometer, TBI100-254.147.13T
- RS Stock No.:
- 254-0087
- Mfr. Part No.:
- TBI100-254.147.13T
- Brand:
- Bourdon
Available to back order for despatch 12/08/2024, delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£242.50
(exc. VAT)
£291.00
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £242.50 |
- RS Stock No.:
- 254-0087
- Mfr. Part No.:
- TBI100-254.147.13T
- Brand:
- Bourdon
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details

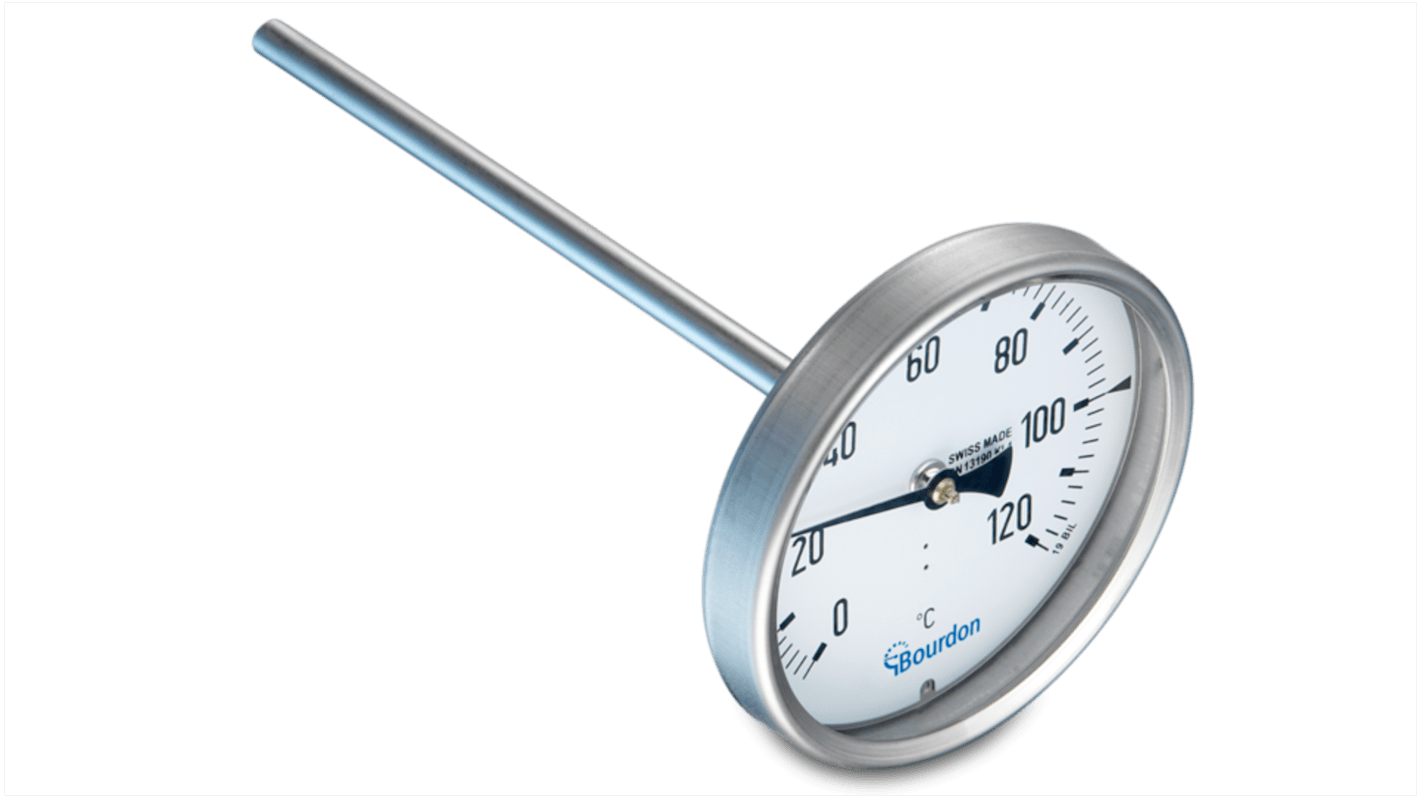

The Bourdon TBI100 is industry Line bimetallic dry thermometer Ø 100 with brass stem Ø6mm orientable type.
For corrosive gasses and liquids
Class 1 and 2 according to EN 13190
Wetted parts Stainless steel
Option : case material 1.4404 (316L) for aggressive atmosphere
Class 1 and 2 according to EN 13190
Wetted parts Stainless steel
Option : case material 1.4404 (316L) for aggressive atmosphere
Specifications
Attribute | Value |
|---|---|
| Maximum Temperature Measurement | 160 °C |
| Best Accuracy | Class 1 |
| Dial Diameter | 100mm |
| Temperature Scale | Centigrade |
| Thermometer Type | Dial |
