SEGGER J-Trace PRO for Cortex M

View this category

Subtotal (1 unit)*

£1,703.54

(exc. VAT)

£2,044.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 8 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,703.54

*price indicative

RS Stock No.:
131-1324
Mfr. Part No.:
8.18.00 J-Trace PRO for Cortex M
Brand:
SEGGER
Find similar products by selecting one or more attributes.
Select all

Brand

SEGGER

Kit Name

J-Trace PRO for Cortex M

Product Type

Programmer

For Use With

Flash microcontrollers

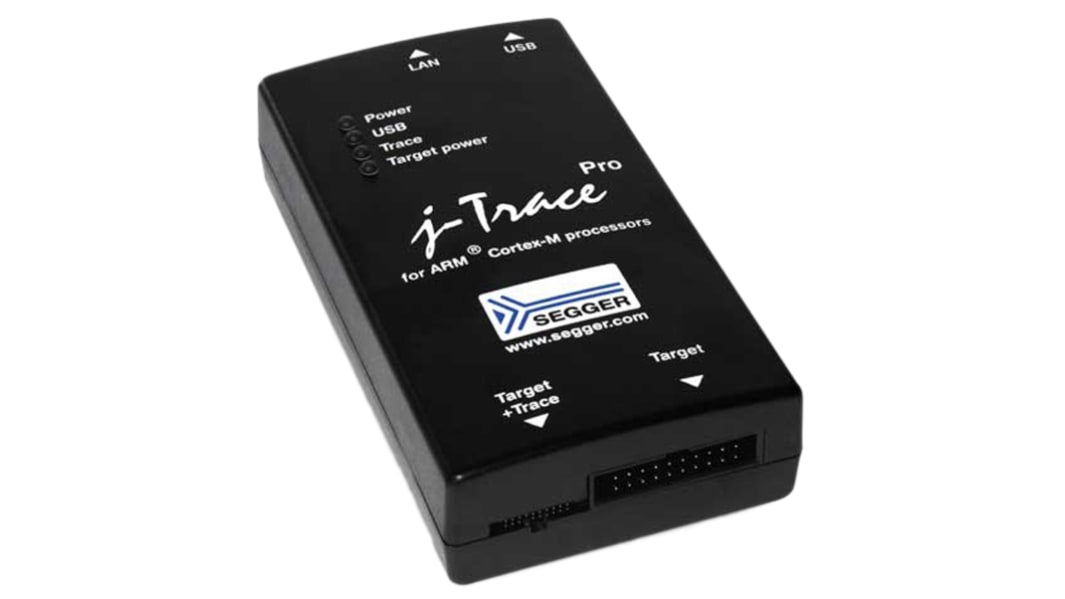

J-Trace PRO Probe


J-Trace PRO for Cortex-M enables continuous streaming trace via its Gigabit Ethernet interface, lifting the limitations of internal buffers and slow data transmission. J-Trace PRO can capture complete traces over long periods - thereby enabling the recording of infrequent, hard-to-reproduce bugs. It also offers extended trace features, such as code coverage and execution profiling.

Supported Processors


• ARM Cortex-M0/M0+/M1/M3/M4/M7

Features


• Supports Streaming Trace (trace data sent to PC/debugger in real time, unlimited trace buffer)
• Full J-Link functionality
• Gigabit Ethernet interface via RJ45 socket
• USB 2.0 HS interface (480MBit/s)
• Target interface: JTAG/SWD 20-pin, JTAG/SWD + Trace 19-pin
• JTAG speed: 50MHz
• Supports Cortex-M devices up to 150MHz ETM trace clock (300MHz CPU clock)
• Supports ARM Embedded Trace Macrocell (ETM)
• Supports ARM Embedded Trace Buffer (ETB)
• Supports ARM Micro Trace Buffer (MTB)
• 64MB on-board trace buffer for legacy one-shot tracing mode
• Dimensions: 123 x 68 x 30mm
• Free software updates, 2 years of support

Supplied with

Ethernet cable, USB cable, 0.05in 20-pin ribbon trace cable, 0.1in 20-pin ribbon cable
