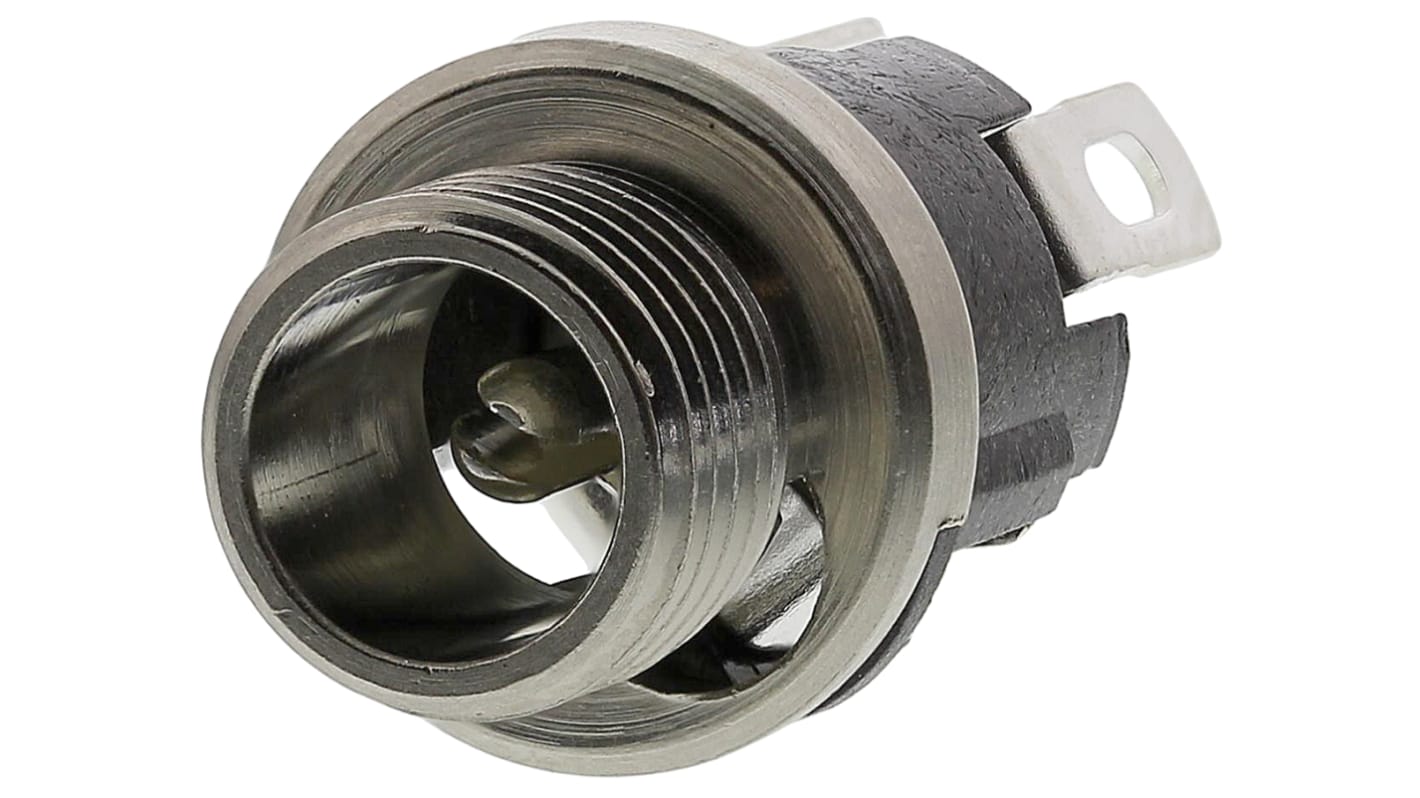

Switchcraft DC Socket Rated At 5.0A, 12.0 V, Panel Mount, Silver
- RS Stock No.:
- 768-4412
- Mfr. Part No.:
- 722A-RS
- Brand:
- Switchcraft
Bulk discount available
Subtotal (1 unit)*
£8.69
(exc. VAT)
£10.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 541 unit(s) ready to ship
- Plus 48 unit(s) ready to ship from another location
- Plus 739 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £8.69 |
10 - 49 | £8.27 |
50 - 99 | £7.86 |
100 + | £7.62 |
*price indicative
- RS Stock No.:
- 768-4412
- Mfr. Part No.:
- 722A-RS
- Brand:
- Switchcraft
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Switchcraft | |
DC Power Connector Type | DC Socket | |
Current Rating | 5.0A | |
Body Orientation | Straight | |
Voltage Rating | 12.0 V | |
Width | 14.2mm | |
Mounting Type | Panel Mount | |
Pin Diameter | 2mm | |
Contact Plating | Silver | |
Contact Material | Copper Alloy | |
Select all | ||
---|---|---|
Brand Switchcraft | ||
DC Power Connector Type DC Socket | ||
Current Rating 5.0A | ||
Body Orientation Straight | ||
Voltage Rating 12.0 V | ||
Width 14.2mm | ||
Mounting Type Panel Mount | ||
Pin Diameter 2mm | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
Switchcraft Chassis Mount Power Jack Sockets
Switchcraft straight DC power jacks feature threaded bushings to allow use of both standard and locking power plugs, suitable for panel mount applications, fitted with hex nut and washer, available with a range of mating pin diameters
Features and Benefits
• Right-angle power jack for PC mounting
• Kinked terminals allow snap-in PC board mounting
• Split centre pin shaped to hold mating plug firmly
• Current rating 5A at 12VDC
• Contact resistance 0.01 Ohms max.
• Dielectric withstand voltage 500 V ac max
• Over 10,000 mating cycles
• Panel thickness 3.1mm
• Kinked terminals allow snap-in PC board mounting
• Split centre pin shaped to hold mating plug firmly
• Current rating 5A at 12VDC
• Contact resistance 0.01 Ohms max.
• Dielectric withstand voltage 500 V ac max
• Over 10,000 mating cycles
• Panel thickness 3.1mm
