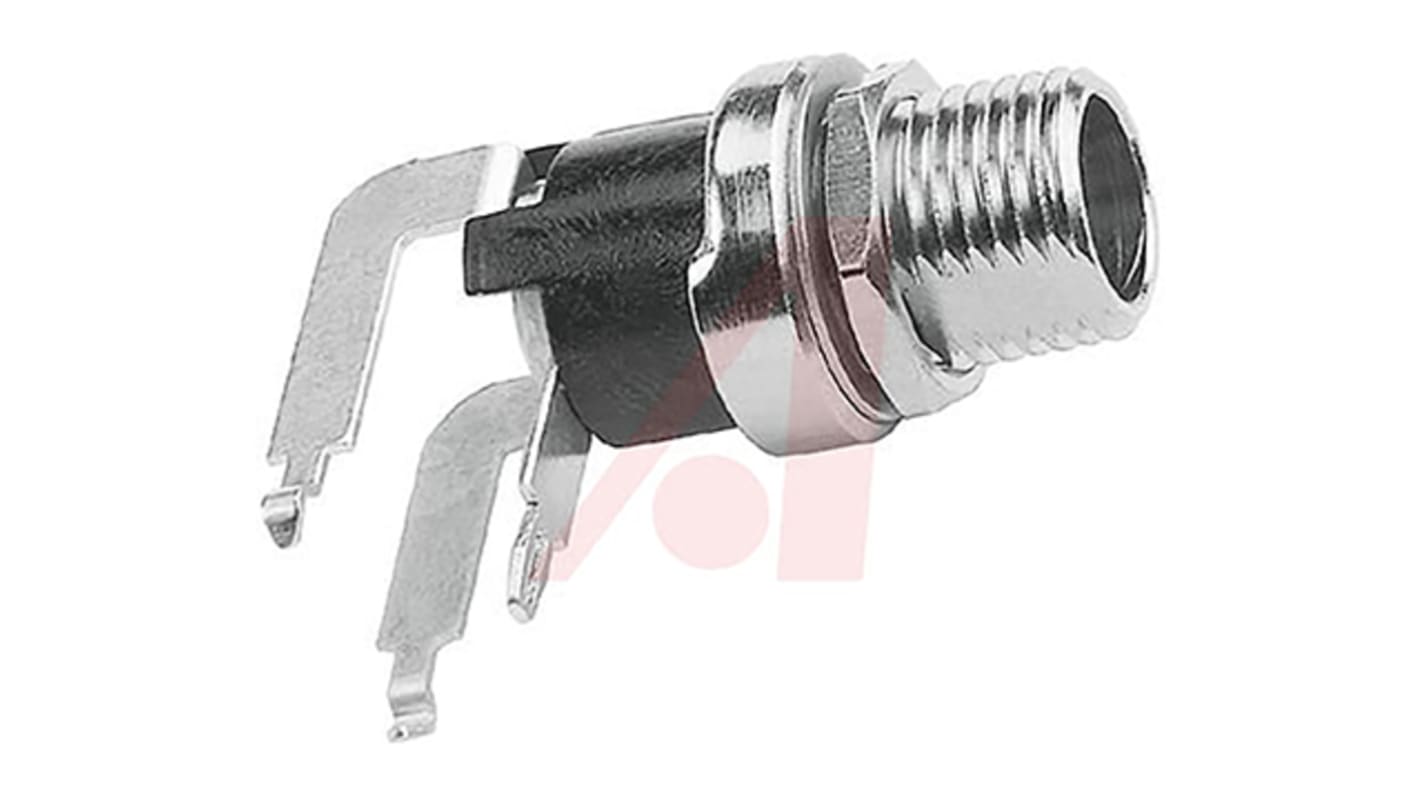

Switchcraft, RA Right Angle DC Socket Rated At 5.0A, 12.0 V, Panel Mount, length 19.5mm, Silver
- RS Stock No.:
- 878-4781
- Mfr. Part No.:
- 712RA
- Brand:
- Switchcraft
Subtotal (1 unit)*
£11.11
(exc. VAT)
£13.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.11 |
*price indicative
- RS Stock No.:
- 878-4781
- Mfr. Part No.:
- 712RA
- Brand:
- Switchcraft
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Switchcraft | |
| DC Power Connector Type | DC Socket | |
| Current Rating | 5.0A | |
| Inner Diameter | 2.5mm | |
| Body Orientation | Right Angle | |
| Voltage Rating | 12.0 V | |
| Length | 19.5mm | |
| Mounting Type | Panel Mount | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
| Series | RA | |
Select all | ||
|---|---|---|
Brand Switchcraft | ||
DC Power Connector Type DC Socket | ||
Current Rating 5.0A | ||
Inner Diameter 2.5mm | ||
Body Orientation Right Angle | ||
Voltage Rating 12.0 V | ||
Length 19.5mm | ||
Mounting Type Panel Mount | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
Series RA | ||
- COO (Country of Origin):
- US
Switchcraft DC Power Plugs, 2.1mm and 2.5mm
Switchcraft 2 conductor DC power plugs with a hollow centre pin and molded plastic covers for use with 2.1mm and 2.5mm Jacks. The sleeve terminal also serves as a cable clamp. Available in red or black cover versions and in versions that lock when mated into a suitable jack socket.
Features and Benefits
• Current rating 5A at 12VDC
• Over 10,000 mating cycles
• Plug Sleeve and Pin - Nickel-Plated Copper Alloy
• Lock-Ring Thread Size - 5/16 - 32 UNEF 2B
• Finger Insulator and handle - Moulded Plastic
• Insulating Washers - Rigid Plastic
• Sleeve Terminal - Electro-Tinned Copper Alloy
• Handle Thread Size: 5/16 - 24 UNF 2B
• Over 10,000 mating cycles
• Plug Sleeve and Pin - Nickel-Plated Copper Alloy
• Lock-Ring Thread Size - 5/16 - 32 UNEF 2B
• Finger Insulator and handle - Moulded Plastic
• Insulating Washers - Rigid Plastic
• Sleeve Terminal - Electro-Tinned Copper Alloy
• Handle Thread Size: 5/16 - 24 UNF 2B
