- RS Stock No.:
- 705-1553
- Mfr. Part No.:
- RASM722BK
- Brand:
- Switchcraft
Discontinued product
- RS Stock No.:
- 705-1553
- Mfr. Part No.:
- RASM722BK
- Brand:
- Switchcraft
Technical Reference
Legislation and Compliance
Product Details

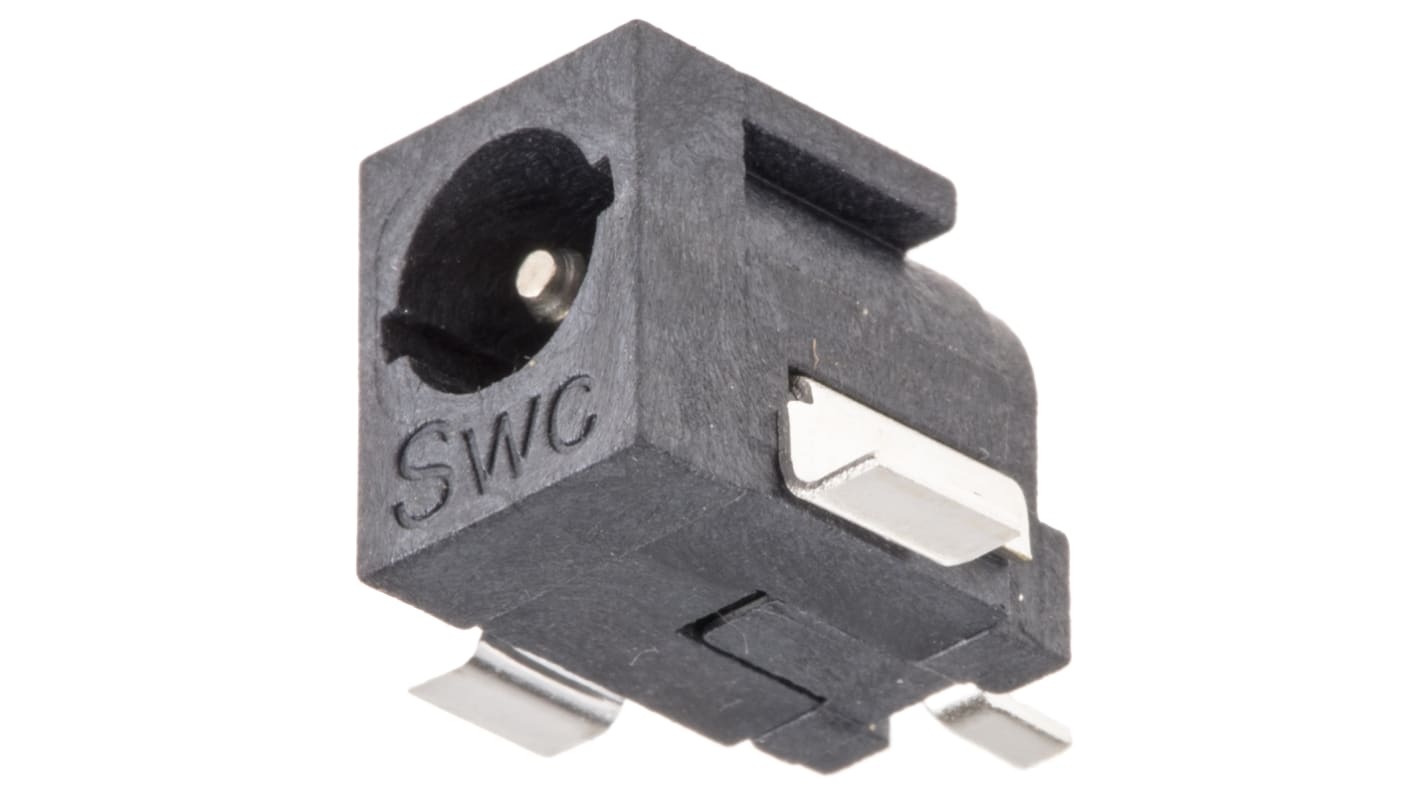

Locking Right Angle Power Jacks & Plugs
Suitable for where a quick and secure, space saving board mounting method is required
uses precision tolerancing to hold plug and jack together
Provides additional security by using keyed plugs and slotted jacks to firmly lock the components in place
uses precision tolerancing to hold plug and jack together
Provides additional security by using keyed plugs and slotted jacks to firmly lock the components in place
Specifications
Attribute | Value |
---|---|
DC Power Connector Type | DC Socket |
Current Rating | 5.0A |
Body Orientation | Right Angle |
Width | 10.9mm |
Length | 15.2mm |
Mounting Type | PCB Mount |
Contact Plating | Nickel |
Contact Material | Copper Alloy |
