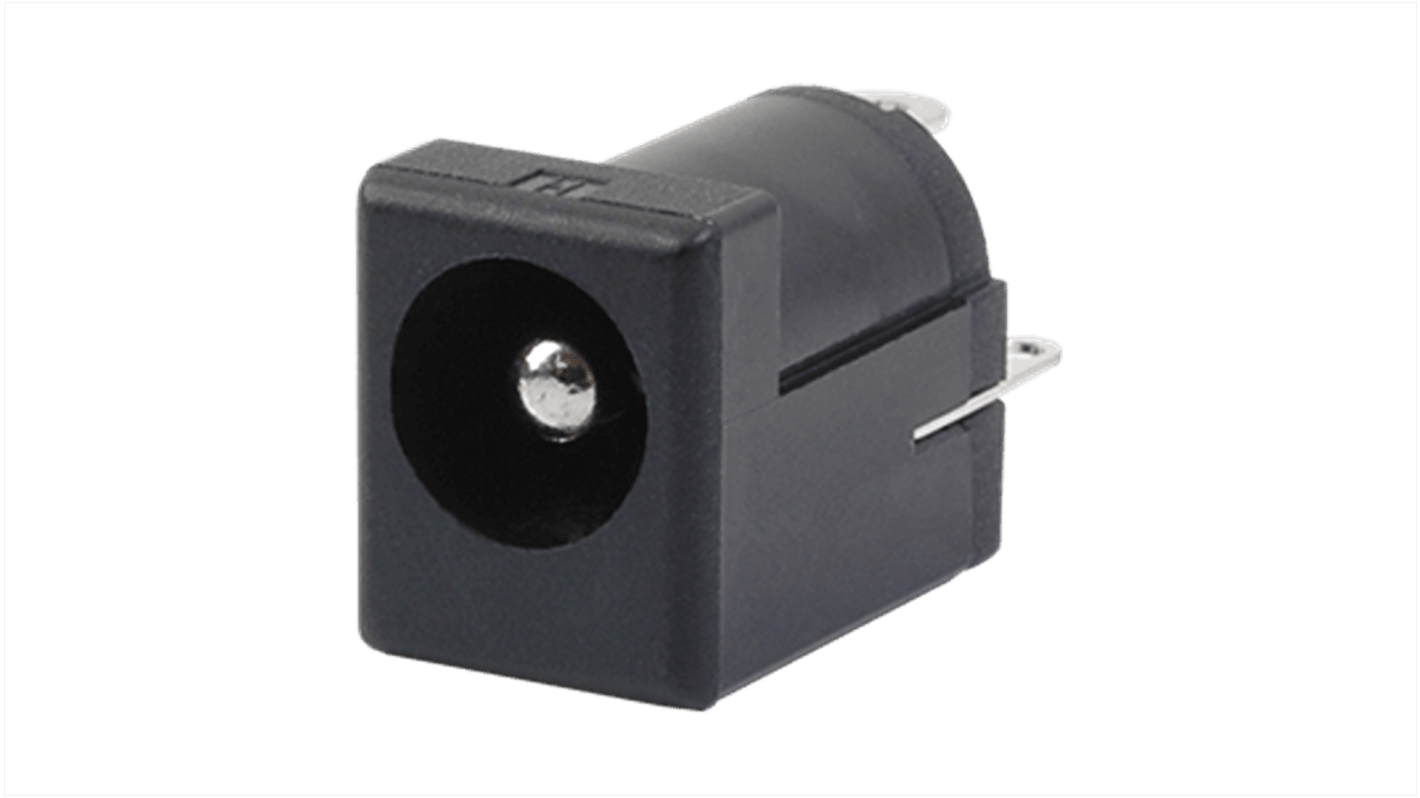

Same Sky, PJ-044AH Vertical Jack 5A, 500V, Through Hole, length 11 mm, Nickel Silver
- RS Stock No.:
- 259-6487
- Mfr. Part No.:
- PJ-044AH
- Brand:
- Same Sky
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.78
(exc. VAT)
£4.535
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £0.756 | £3.78 |
| 10 - 95 | £0.718 | £3.59 |
| 100 - 245 | £0.682 | £3.41 |
| 250 - 495 | £0.65 | £3.25 |
| 500 + | £0.616 | £3.08 |
*price indicative
- RS Stock No.:
- 259-6487
- Mfr. Part No.:
- PJ-044AH
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| DC Power Connector Type | Jack | |
| Product Type | DC Power Plug | |
| Inside Diameter | 2mm | |
| Orientation | Vertical | |
| Current | 5A | |
| Outside Diameter | 6.5mm | |
| Voltage | 500V | |
| Connector Gender | Male | |
| Length | 11mm | |
| Mount Type | Through Hole | |
| Pin Diameter | 2mm | |
| Contact Plating | Nickel Silver | |
| Contact Material | Copper, Brass | |
| Series | PJ-044AH | |
| Contact Gender | Male | |
| Standards/Approvals | UL 94 V-0 | |
| Width | 9mm | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
DC Power Connector Type Jack | ||
Product Type DC Power Plug | ||
Inside Diameter 2mm | ||
Orientation Vertical | ||
Current 5A | ||
Outside Diameter 6.5mm | ||
Voltage 500V | ||
Connector Gender Male | ||
Length 11mm | ||
Mount Type Through Hole | ||
Pin Diameter 2mm | ||
Contact Plating Nickel Silver | ||
Contact Material Copper, Brass | ||
Series PJ-044AH | ||
Contact Gender Male | ||
Standards/Approvals UL 94 V-0 | ||
Width 9mm | ||
- COO (Country of Origin):
- CN
The CUI devices jack connector
comes with a vertical body orientation. The mounting type of the product is through hole and the size is 2.0 x 5.5 mm. The product has power jack.
Insulation resistance at 500 Vdc is 100 MΩ
Flammability rating IS UL94V-0
Insertion withdrawn force is 0.3 kg - 3 kg
