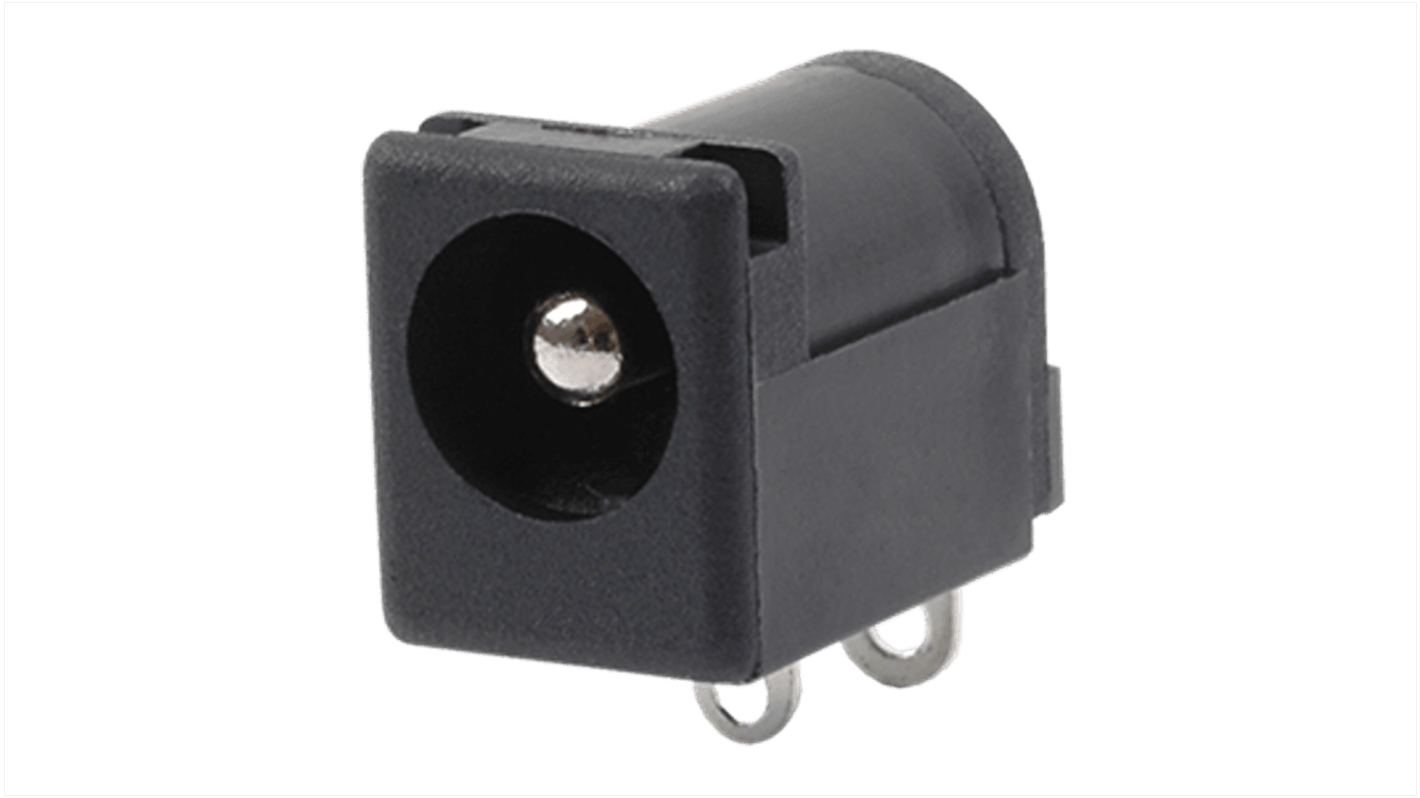

Same Sky, PJ-037A Horizontal Jack 2.5A, 500V, Through Hole, length 14.5 mm, Nickel Silver

View all DC Power Connectors

Subtotal (1 pack of 10 units)*

£5.26

(exc. VAT)

£6.31

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,590 unit(s), ready to ship
Units
Per unit
Per Pack*
10 +£0.526£5.26

*price indicative

Packaging Options:
RS Stock No.:
259-6473
Mfr. Part No.:
PJ-037A
Brand:
Same Sky
Find similar products by selecting one or more attributes.
Select all

Brand

Same Sky

DC Power Connector Type

Jack

Product Type

DC Power Plug

Inside Diameter

2mm

Orientation

Horizontal

Current

2.5A

Outside Diameter

6.5mm

Voltage

500V

Length

14.5mm

Connector Gender

Male

Mount Type

Through Hole

Pin Diameter

2mm

Contact Plating

Nickel Silver

Contact Material

Brass, Copper

Series

PJ-037A

Contact Gender

Male

Width

9mm

Standards/Approvals

UL 94 V-0

The CUI devices jack connector

comes with a horizontal body orientation. The mounting type of the product is through hole and the size is 2.0 x 5.5 mm. The product has power jack.

Insulation resistance at 500 Vdc is 100 MΩ

Flammability rating IS UL94V-0

Insertion withdrawn force is 0.3 kg - 3 kg
