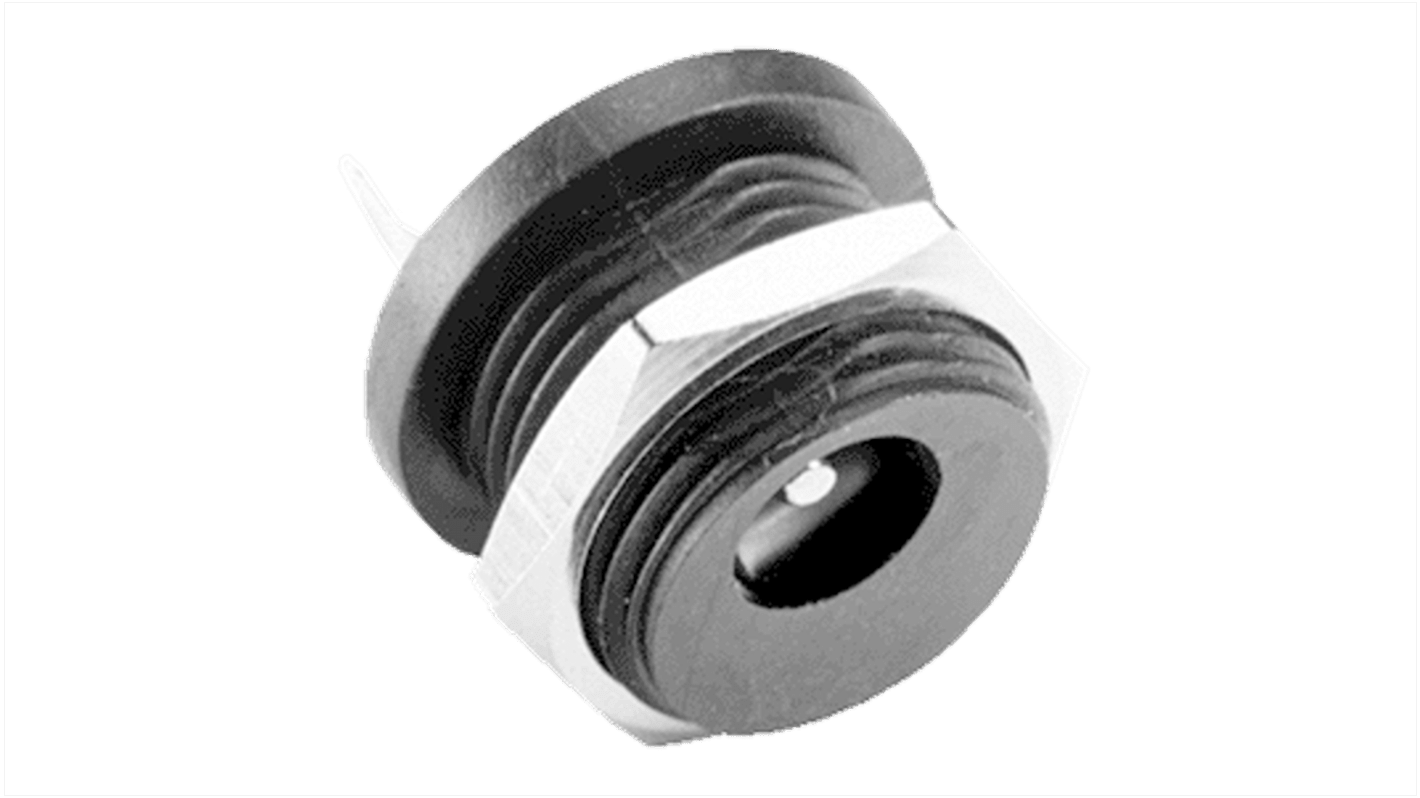

Same Sky, PJ-011B Straight Jack 5A, 500V, Panel Mount, length 13 mm, Nickel Silver
- RS Stock No.:
- 259-6448
- Mfr. Part No.:
- PJ-011B
- Brand:
- Same Sky
Bulk discount available
Subtotal (1 bag of 300 units)*
£279.60
(exc. VAT)
£335.40
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 300 unit(s), ready to ship
Units | Per unit | Per Bag* |
|---|---|---|
| 300 - 300 | £0.932 | £279.60 |
| 600 - 600 | £0.886 | £265.80 |
| 900 + | £0.842 | £252.60 |
*price indicative
- RS Stock No.:
- 259-6448
- Mfr. Part No.:
- PJ-011B
- Brand:
- Same Sky
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| DC Power Connector Type | Jack | |
| Product Type | DC Power Connector | |
| Inside Diameter | 2.5mm | |
| Outside Diameter | 6mm | |
| Current | 5A | |
| Orientation | Straight | |
| Voltage | 500V | |
| Connector Gender | Male | |
| Length | 13mm | |
| Mount Type | Panel Mount | |
| Pin Diameter | 2.5mm | |
| Contact Plating | Nickel Silver | |
| Contact Material | Brass, Copper | |
| Series | PJ-011B | |
| Contact Gender | Male | |
| Standards/Approvals | UL94V-0, RoHS | |
| Width | 15.8mm | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
DC Power Connector Type Jack | ||
Product Type DC Power Connector | ||
Inside Diameter 2.5mm | ||
Outside Diameter 6mm | ||
Current 5A | ||
Orientation Straight | ||
Voltage 500V | ||
Connector Gender Male | ||
Length 13mm | ||
Mount Type Panel Mount | ||
Pin Diameter 2.5mm | ||
Contact Plating Nickel Silver | ||
Contact Material Brass, Copper | ||
Series PJ-011B | ||
Contact Gender Male | ||
Standards/Approvals UL94V-0, RoHS | ||
Width 15.8mm | ||
- COO (Country of Origin):
- CN
The CUI devices jack connector
comes with a straight body orientation. The mounting type of the product is panel mount and the size is 2.5 x 5.5 mm. The product has power jack.
Insulation resistance at 500 Vdc is 100 MΩ
Flammability rating IS UL94V-0
Insertion withdrawn force is 0.3 kg - 3 kg
