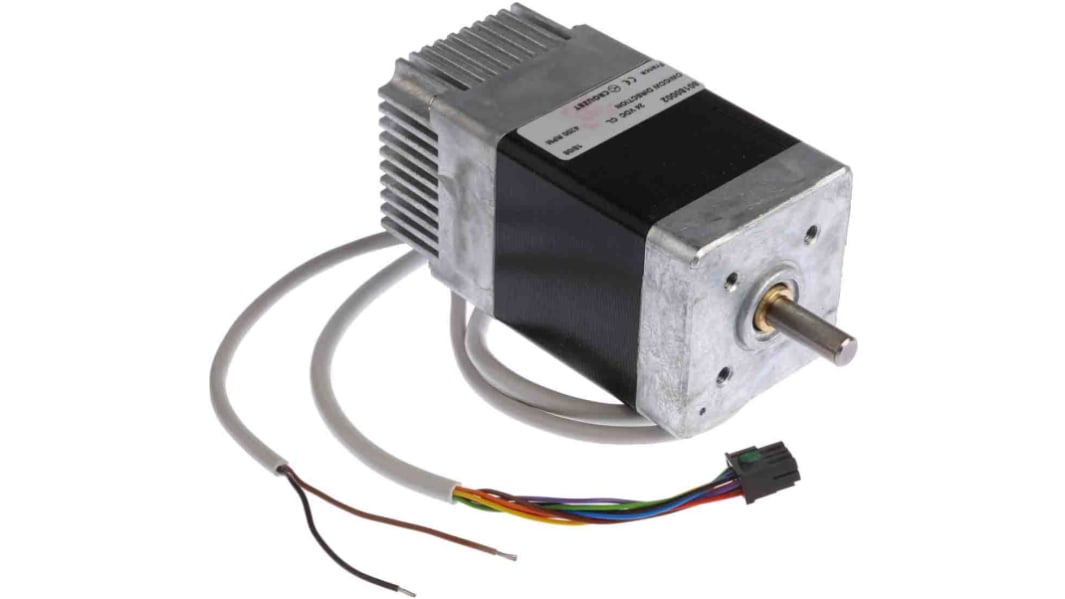

Crouzet Brushless DC Motor, 80 W, 24 V dc, 240 mNm, 3250 rpm, 8mm Shaft Diameter

  • RS Stock No. 499-1124
  • Mfr. Part No. 80180002
  • Brand Crouzet
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

Brushless dc Motor, 57x57

Ideal for applications where a long operating life, with quiet operation, reliability and no maintenance are of prime importance
No brushes mean no wear, no mechanical or electrical noise, no sparks or interference
Built in electronics for motor speed control, removing the need for an external drive board
Fail safe motor protection, current limiting, thermal protection and timed cut-off for locked rotor
351-5189 features regulation for closed loop operation without the need for an encoder

Note

When speed controlling the motors by 0 to 10V the reliable speed range is between 25% to 100% (775 RPM to 3100 RPM). Below the lower speed, the motor becomes unstable

Crouzet

Specifications
Attribute Value
Supply Voltage 24 V dc
DC Motor Type Brushless
Power Rating 80 W
Output Speed 3250 rpm
Shaft Diameter 8mm
Maximum Output Torque 240 mNm
Length 111.7mm
Width 57mm
Depth 57mm
Dimensions 111.7 x 57 x 57 mm
Current Rating 4.8 A
7 In stock - FREE next working day delivery available
9 available from Europe for delivery within 1 working day(s).
Price Each
£ 257.98
(exc. VAT)
£ 309.58
(inc. VAT)
Units
Per unit
1 +
£257.98
