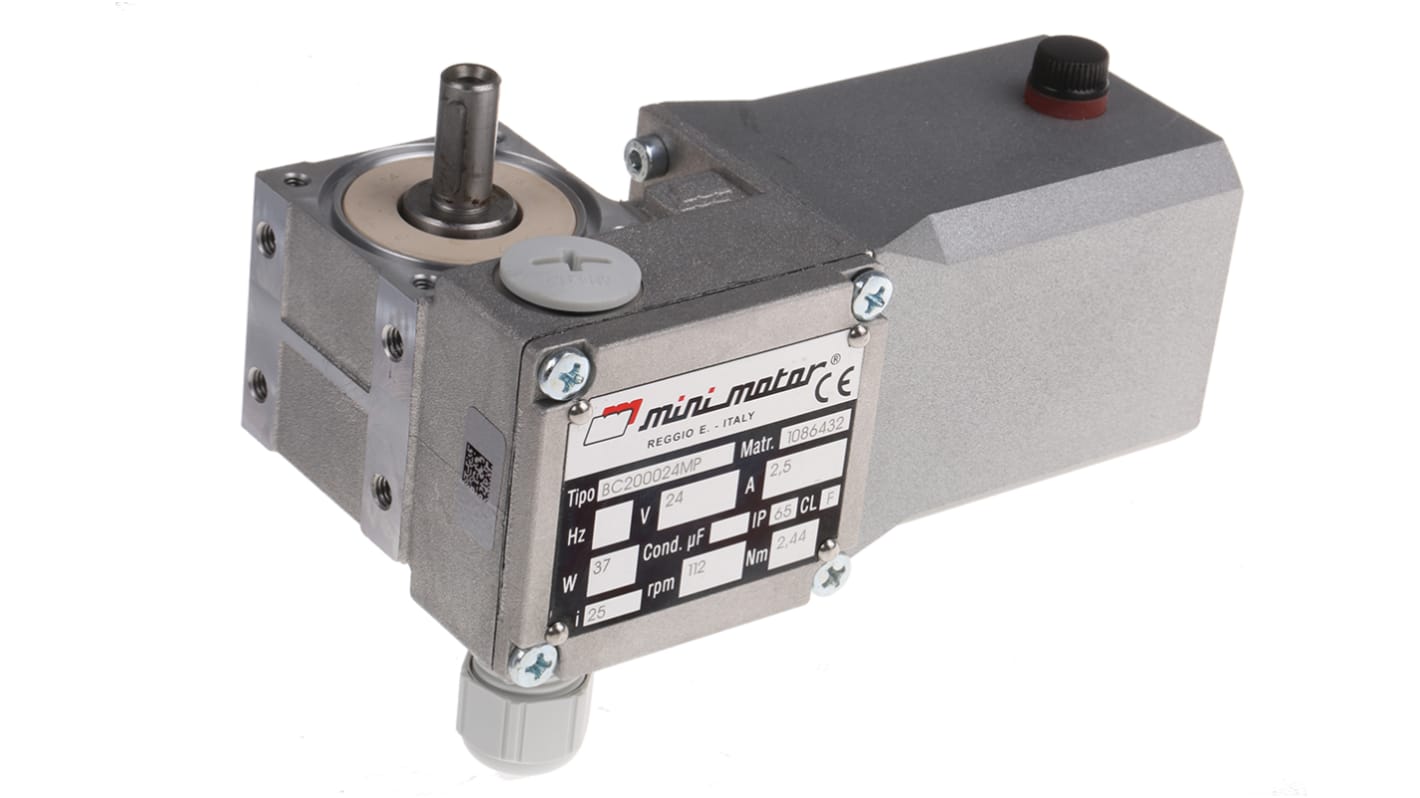

Mini Motor Brushed Geared DC Geared Motor, 37 W, 24 V dc, 2.4 Nm, 112 rpm, 9mm Shaft Diameter
- RS Stock No.:
- 478-4926
- Mfr. Part No.:
- BC2000 24 MP 25 B3
- Brand:
- Mini Motor
Subtotal (1 unit)*
£441.58
(exc. VAT)
£529.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £441.58 |
*price indicative
- RS Stock No.:
- 478-4926
- Mfr. Part No.:
- BC2000 24 MP 25 B3
- Brand:
- Mini Motor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Mini Motor | |
Supply Voltage | 24 V dc | |
DC Motor Type | Brushed Geared | |
Power Rating | 37 W | |
Output Speed | 112 rpm | |
Shaft Diameter | 9mm | |
Maximum Output Torque | 2.4 Nm | |
Gearhead Type | Worm | |
Dimensions | 139.5 x 77.5 x 55.5 mm | |
Current Rating | 2.5 A | |
Length | 139.5mm | |
Width | 77.5mm | |
Depth | 55.5mm | |
Core Construction | Iron Core | |
Select all | ||
---|---|---|
Brand Mini Motor | ||
Supply Voltage 24 V dc | ||
DC Motor Type Brushed Geared | ||
Power Rating 37 W | ||
Output Speed 112 rpm | ||
Shaft Diameter 9mm | ||
Maximum Output Torque 2.4 Nm | ||
Gearhead Type Worm | ||
Dimensions 139.5 x 77.5 x 55.5 mm | ||
Current Rating 2.5 A | ||
Length 139.5mm | ||
Width 77.5mm | ||
Depth 55.5mm | ||
Core Construction Iron Core | ||
- COO (Country of Origin):
- IT
Series BC2000/24MP with Worm Gear
5.2Nm Max.
Note
Shaft diameter has a h6 standard tolerance
Minimotor Geared Motor
24Vdc permanent magnet, 2 pole (2800rpm) geared motors with Class F winding to VDE0530 standards.The worm and wheel gearbox is made of die-cast aluminium construction, lubricated with synthetic oil.
IP65 standard insulation to CEI EN 60529
B3 standard Foot Mount
B3 standard Foot Mount
