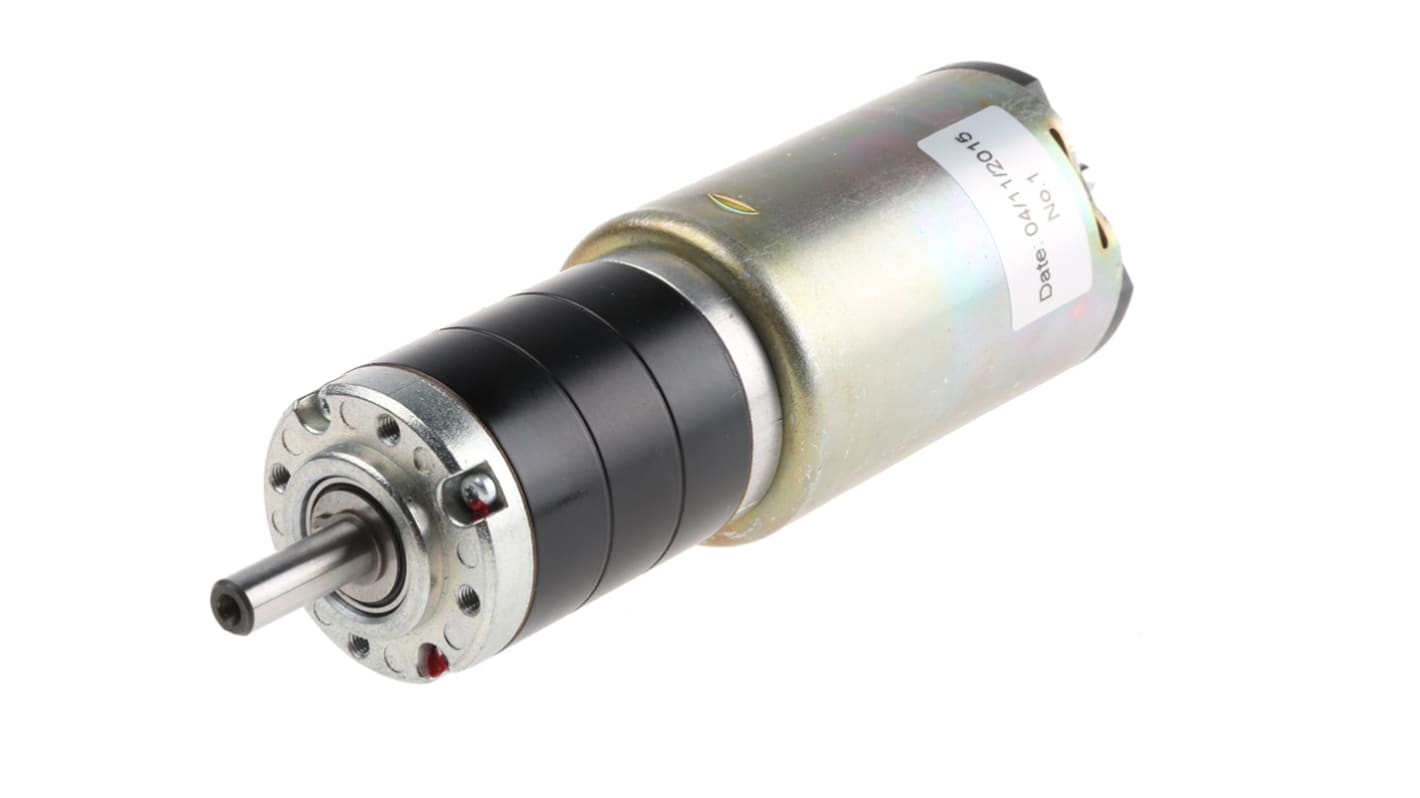

Trident Engineering, 12 V dc, 4.5 Nm, Brushed DC Geared Motor, Output Speed 66 rpm
- RS Stock No.:
- 398-9748
- Mfr. Part No.:
- 3-38/1412+GP32.0100
- Brand:
- Trident Engineering
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£288.56
(exc. VAT)
£346.27
(inc. VAT)
- RS Stock No.:
- 398-9748
- Mfr. Part No.:
- 3-38/1412+GP32.0100
- Brand:
- Trident Engineering
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Trident Engineering | |
| Supply Voltage | 12 V dc | |
| DC Motor Type | Brushed | |
| Power Rating | 13.9 W | |
| Output Speed | 66 rpm | |
| Shaft Diameter | 6mm | |
| Maximum Output Torque | 4.5 Nm | |
| Gearhead Type | Planetary | |
| Current Rating | 1.66 A | |
| Length | 106mm | |
| Width | 38mm | |
| Core Construction | Iron Core | |
Select all | ||
|---|---|---|
Brand Trident Engineering | ||
Supply Voltage 12 V dc | ||
DC Motor Type Brushed | ||
Power Rating 13.9 W | ||
Output Speed 66 rpm | ||
Shaft Diameter 6mm | ||
Maximum Output Torque 4.5 Nm | ||
Gearhead Type Planetary | ||
Current Rating 1.66 A | ||
Length 106mm | ||
Width 38mm | ||
Core Construction Iron Core | ||
RoHS Status: Not Applicable
38mm 12/24Vdc Geared Motors Motor: 3GP3
Graphite brushed motor
Coupled to a high quality planetary gearhead
Skewed motor winding gives a low cogging torque, which results in a smooth operation
Typical applications include pick and place, or ticket dispensing machines
Coupled to a high quality planetary gearhead
Skewed motor winding gives a low cogging torque, which results in a smooth operation
Typical applications include pick and place, or ticket dispensing machines
