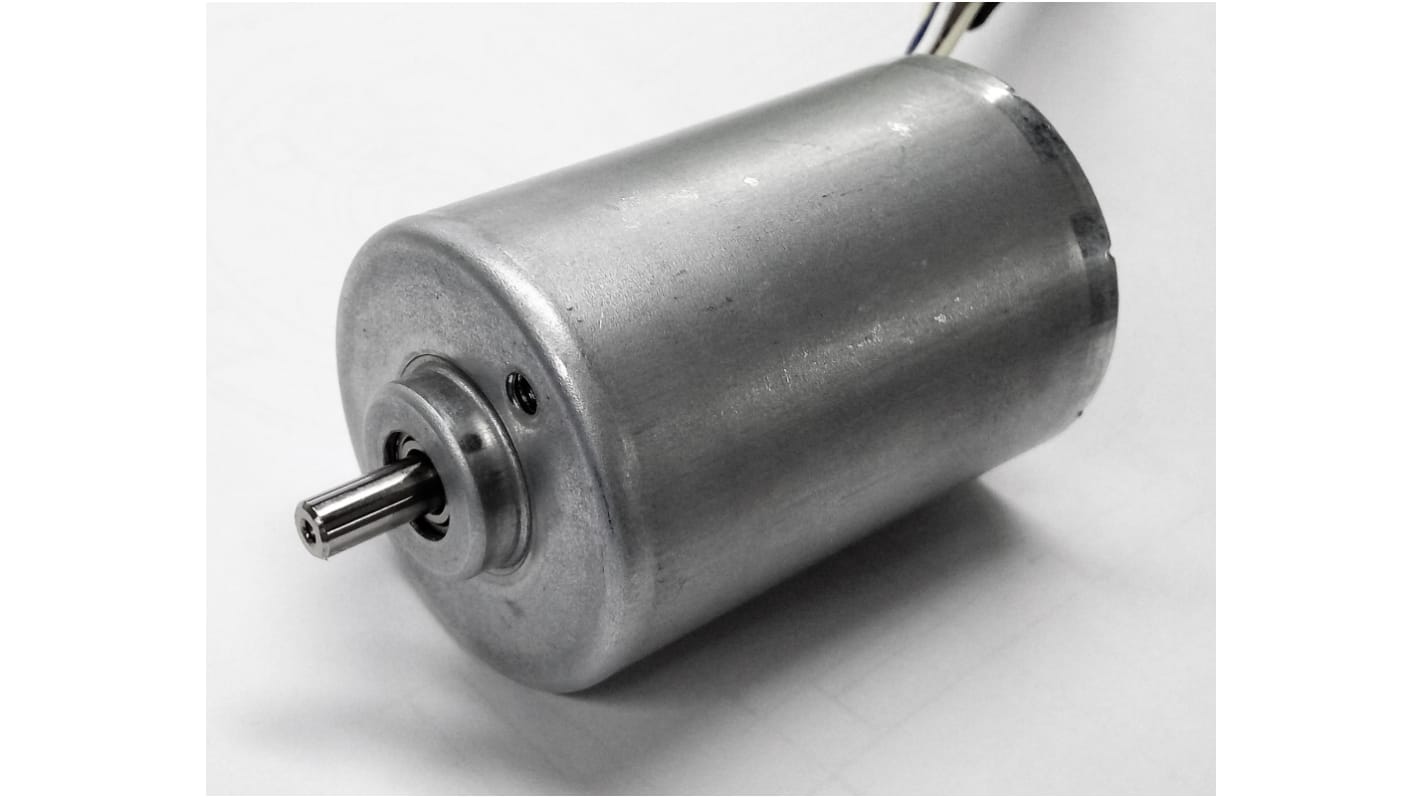

RS PRO Brushless DC Motor, 24V dc, 0.11 Nm, 4800rpm, 25 mm Shaft Diameter

View all DC Motors

Subtotal (1 unit)*

£36.71

(exc. VAT)

£44.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 44 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£36.71

*price indicative

RS Stock No.:
216-3789
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

DC Motor

Supply Voltage

24V dc

Sub Type

Brushless

Output Speed

4800rpm

Shaft Diameter

25mm

Maximum Output Torque

0.11Nm

Mount Type

Screw

Current Rating

1A

Material

Steel

Length

40mm

Shaft Length

25mm

Standards/Approvals

RoHS

Width

36mm

Depth

36mm

RS PRO Brushless DC Motor


Introducing the range of RS PRO Brushless DC Motors (BLDC), a high-quality electric motor that uses an electronic motor controller and Hall-effect sensors to deliver reliable and optimum speed to the machines it's connected to. Thanks to the simple brushless design, this motor is suited to long-life applications with minimal upkeep, making it the ideal low-maintenance solution for a range of applications.

Features and Benefits:


  • This range of RS PRO brushless DC motors is built from high-quality materials that ensure efficient power and consistent torque output for optimum performance

  • The simple brushless design offers a longer-lasting motor, less maintenance and is also quieter than its brushed counterpart

  • The sensors provide speed-control feedback to provide superior performance and high efficiency in all applications

    • Technical Features:


  • Supply voltage of 24 V DC

  • Output speed of 4800 rpm

  • Maximum output torque of 0.11 Nm

  • Current rating of 1 A

  • Hall effect sensors with 120° electrical angle

    • Applications:


    DC Motors are incredibly versatile pieces of equipment that can be used in a range of applications. They are generally found in devices or used in applications where effective speed control is required and are particularly useful in industrial and heavy-duty domestic applications thanks to their high performance over long periods of time. Some of the products DC motors are used in are:

  • Washing Machines

  • Vacuum Cleaners

  • Air Conditioners

  • Fans

    • Why RS PRO?


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
