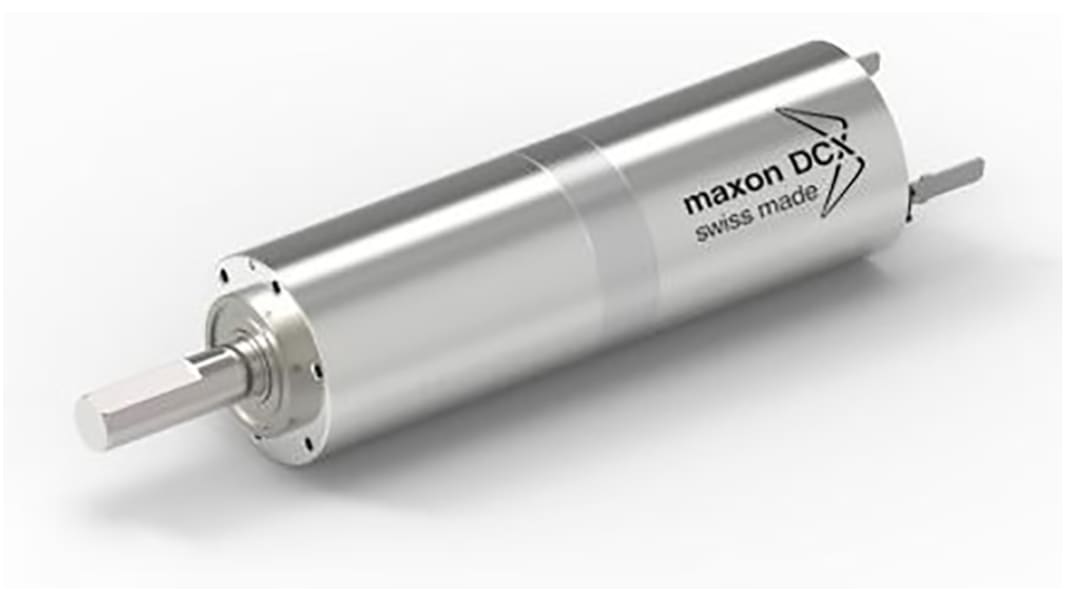

Maxon Brushed Geared DC Geared Motor, 24 W, 24V dc, 3.8 Nm, 10800rpm, 6 mm Shaft Diameter
- RS Stock No.:
- 162-3148
- Mfr. Part No.:
- B75D3C444AFD
- Brand:
- Maxon
Subtotal (1 unit)*
£441.75
(exc. VAT)
£530.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £441.75 |
*price indicative
- RS Stock No.:
- 162-3148
- Mfr. Part No.:
- B75D3C444AFD
- Brand:
- Maxon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxon | |
| Supply Voltage | 24V dc | |
| Product Type | DC Geared Motor | |
| Sub Type | Brushed Geared | |
| Power Rating | 24W | |
| Output Speed | 10800rpm | |
| Shaft Diameter | 6mm | |
| Mount Type | Screw | |
| Maximum Output Torque | 3.8Nm | |
| Gearhead Type | Planetary | |
| Gear Ratio | 231:1 | |
| Current Rating | 869mA | |
| Material | Steel | |
| Shaft Length | 23.1mm | |
| Length | 69.9mm | |
| Depth | 22mm | |
| Standards/Approvals | RoHS | |
| Width | 22mm | |
| Series | DCX | |
| Select all | ||
|---|---|---|
Brand Maxon | ||
Supply Voltage 24V dc | ||
Product Type DC Geared Motor | ||
Sub Type Brushed Geared | ||
Power Rating 24W | ||
Output Speed 10800rpm | ||
Shaft Diameter 6mm | ||
Mount Type Screw | ||
Maximum Output Torque 3.8Nm | ||
Gearhead Type Planetary | ||
Gear Ratio 231:1 | ||
Current Rating 869mA | ||
Material Steel | ||
Shaft Length 23.1mm | ||
Length 69.9mm | ||
Depth 22mm | ||
Standards/Approvals RoHS | ||
Width 22mm | ||
Series DCX | ||
Geared DC Motor 24V
The range of brushed DC geared motors at 24v have a planetary gearhead suitable for transeferring high torque. The motors are pre-loaded with ball bearings at the gearhead output.
Suitable for high torque
High speed input
Low noise and low backlash
Concentric gear input and output
