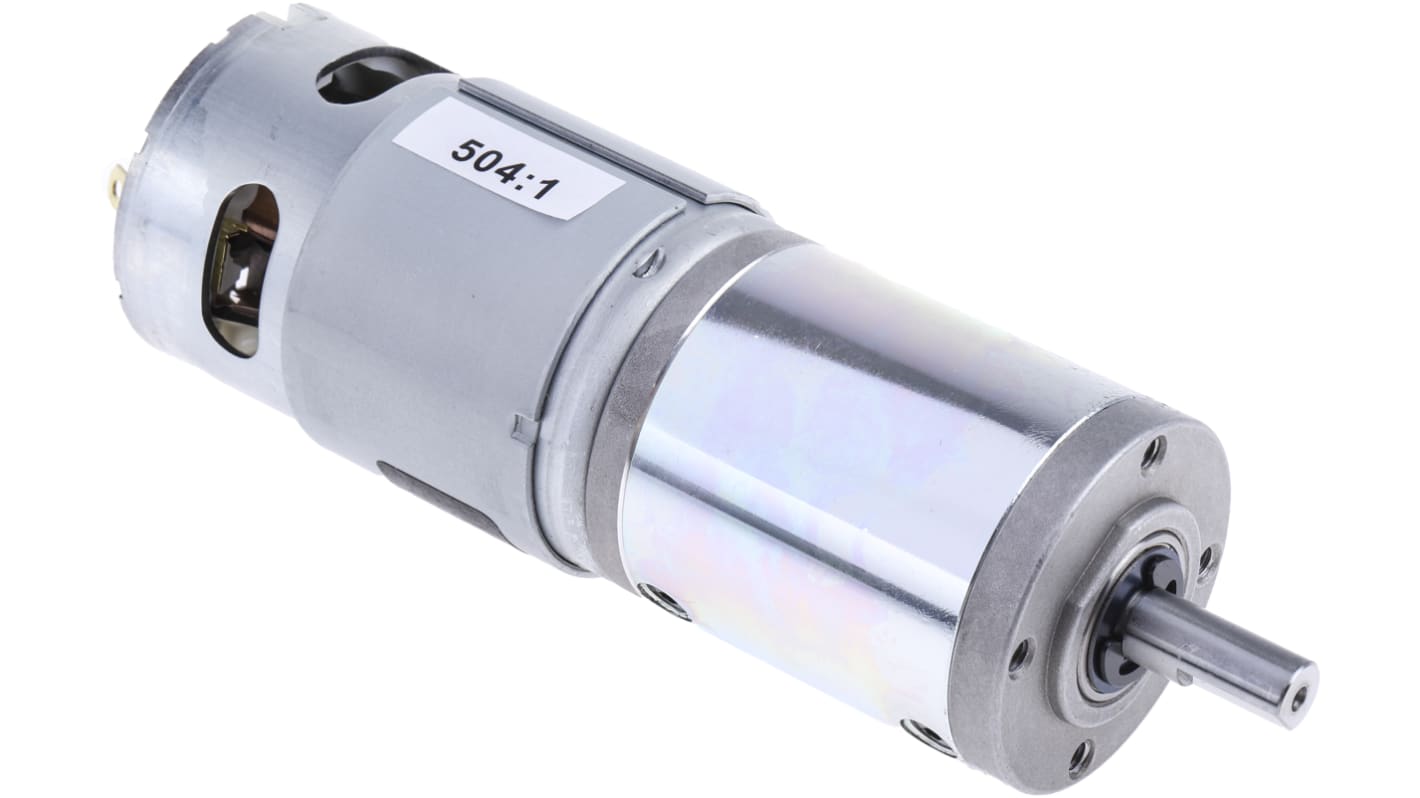

RS PRO Brushed Geared DC Geared Motor, 41.3 W, 12V dc, 2.9 Nm, 14rpm, 8 mm Shaft Diameter

View all DC Motors

Subtotal (1 unit)*

£61.20

(exc. VAT)

£73.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
  • Plus 6 unit(s) shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£61.20

*price indicative

RS Stock No.:
420-619
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

DC Geared Motor

Supply Voltage

12V dc

Sub Type

Brushed Geared

Power Rating

41.3W

Output Speed

14rpm

Shaft Diameter

8mm

Mount Type

Screw

Maximum Output Torque

2.9Nm

Gearhead Type

Planetary

Gear Ratio

504:1

Material

Metal

Current Rating

5.5A

Shaft Length

20mm

Length

118.6mm

Width

44.6mm

Depth

44.6mm

Standards/Approvals

RoHS

Series

975D

Core Construction

Iron Core

RS PRO Brushed Geared DC Geared Motor, 41.3 W, 12 V, 2.9 Nm, 11 rpm, 8 mm Shaft Diameter


Efficiently run smaller tools and appliances with this brushed DC geared motor from RS PRO. It's used to rapidly convert direct-current electrical energy into mechanical energy. You'll find it used in a wide range of industrial environments, including in laser and optics manufacturing and commercial printing facilities.

For easy installation, you simply wire this smooth-running stepper motor into your circuit and you'll be ready to go. It emits very low levels of noise and vibration, so it won't disturb you while you're working. The product has a hardwearing iron core construction, so it's tough enough to withstand the knocks and scrapes of regular use in harsh environments.

This brushed motor is often used in cost-sensitive applications, where there's a need for simple speed and direction controls. You can use it with precision positioning equipment, 3D printers and camera lenses.

Features and Benefits


• Iron core construction

• Current rating of 5.5 A

• Brushed geared DC motor type

• Planetary gear head type

• Length of 118.6 mm

• Maximum output torque of 2.9 Nm (Newton metres)

• Output speed of 11 rpm (revolutions per minute)

• Power rating of 41.3 W (watts)

• Shaft diameter of 8 mm

• Supply voltage of 12 V (volts)

• Width of 44.6 mm
