Microchip, DC/DC Power Supply Module 5-Channel 3 A 2.4V Input, 3.84 V 2.4V Input, 1.7 MHz 24-Pin, QFN

View all DC-DC Power Supply Modules
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
215-5937
Mfr. Part No.:
MIC33M356-FAYMP-TR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

DC/DC Power Supply Module

Maximum Switching Frequency

1.7MHz

Mount Type

Surface

Package Type

QFN

Pin Count

24

Minimum Operating Temperature

-40°C

Output Voltage 3

0.6V

Output Current 1

3A

Output Voltage 2

1.28V

Maximum Operating Temperature

125°C

Height

1.8mm

Length

3mm

Maximum Input Voltage

2.4V

Standards/Approvals

No

Automotive Standard

No

Minimum Input Voltage

2.4V

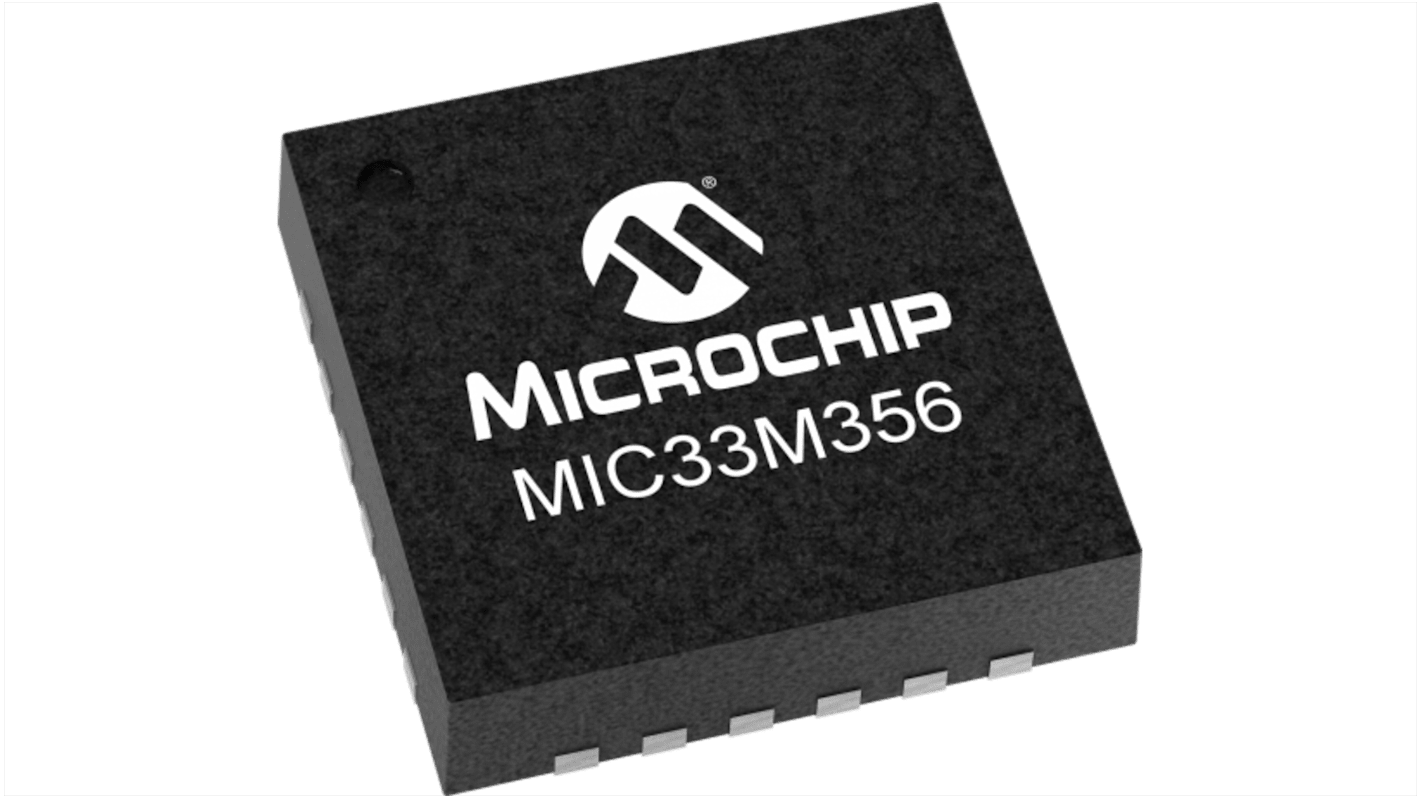

The Microchip MIC33M356 is a high-efficiency, low-voltage input, 3A Continuous current synchronous step-down Power Module. The Constant-ON-Time (COT) control architecture with Hyper Light Load™ provides very high efficiency at light loads, while still having ultra-fast transient response.

Input Voltage Range: 2.4V to 5.5V

3A Output Current

Multiple Faults Indication through I2C
