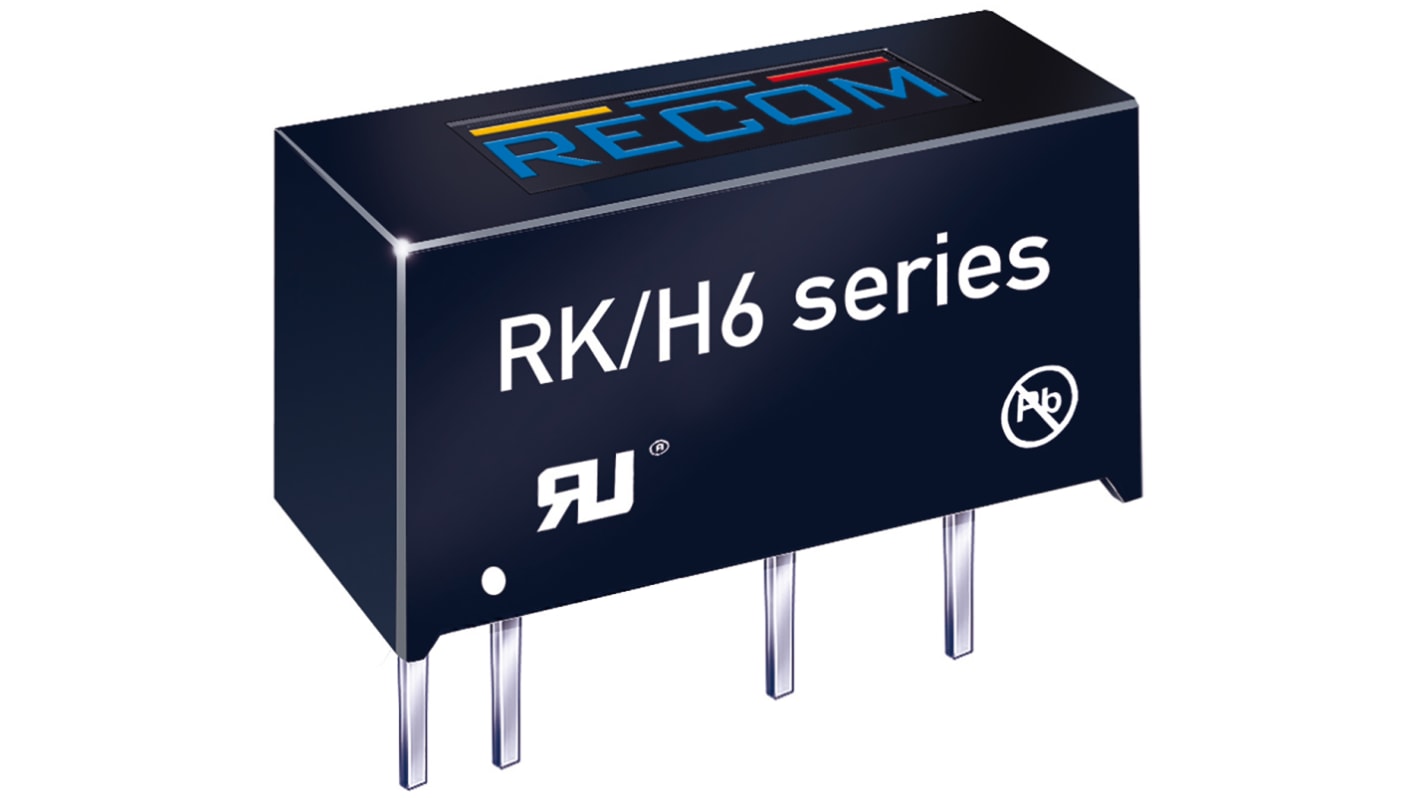

Recom RK DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C Min
- RS Stock No.:
- 904-8682
- Mfr. Part No.:
- RK-0505S/H6
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£8.32
(exc. VAT)
£9.98
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £8.32 |
| 5 - 9 | £8.07 |
| 10 - 24 | £7.82 |
| 25 - 49 | £7.57 |
| 50 + | £7.32 |
*price indicative
- RS Stock No.:
- 904-8682
- Mfr. Part No.:
- RK-0505S/H6
- Brand:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±5% | |
| Package | SIP 7 | |
| Isolation Voltage | 4kV dc | |
| Length | 19.65mm | |
| Width | 7.05mm | |
| Depth | 10.2mm | |
| Series | RK | |
| Load Regulation | 0.15 | |
| Standards Met | A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950 | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 74 → 77% | |
