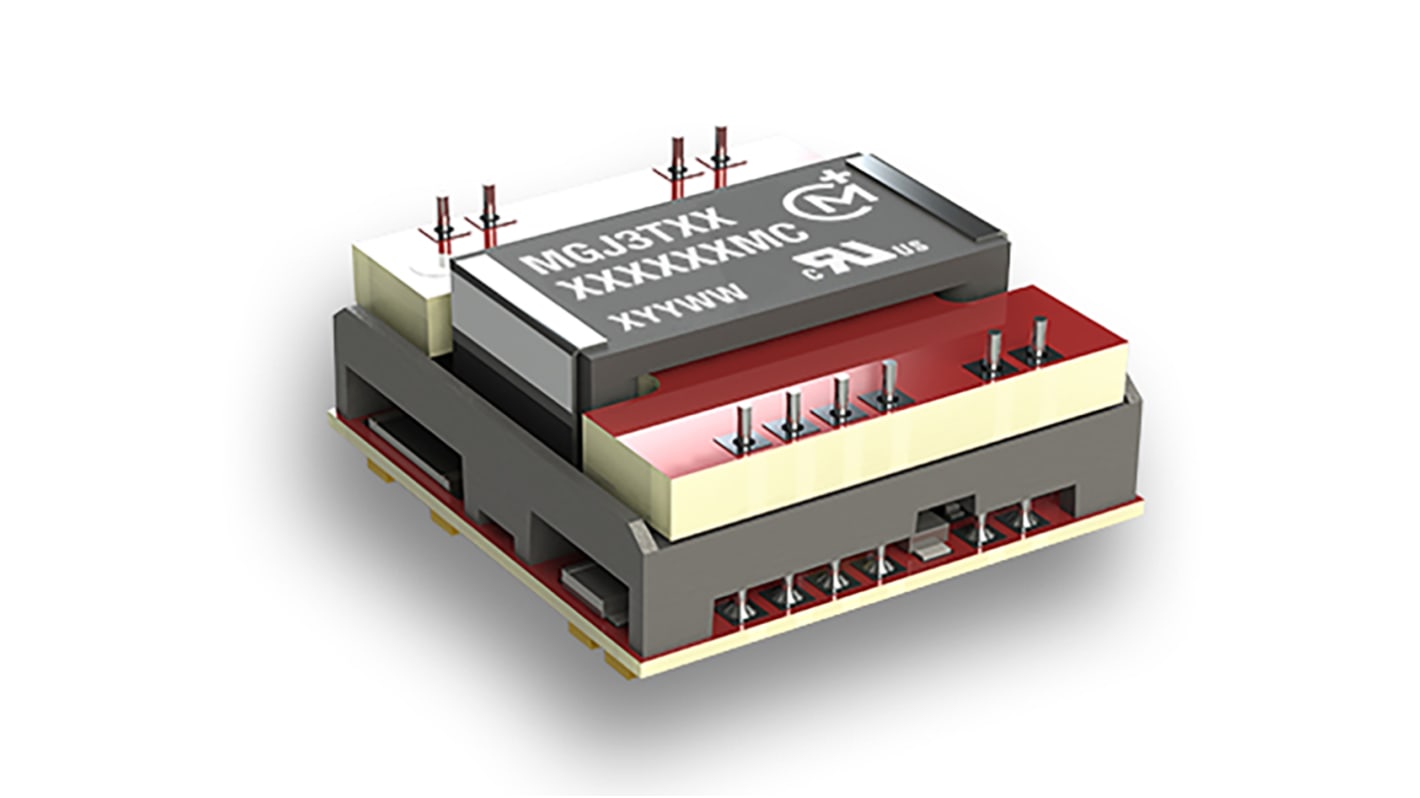

Murata Power Solutions MGJ3 DC/DC Converter, 15V dc/ 120 mA, 12V dc Input, 105 °C Max Temp -40 °C Min Temp, 16-Pin
- RS Stock No.:
- 852-6799
- Mfr. Part No.:
- MGJ3T12150505MC-R7
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 unit)*
£18.76
(exc. VAT)
£22.51
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £18.76 |
| 5 - 9 | £18.19 |
| 10 - 24 | £17.63 |
| 25 - 49 | £17.07 |
| 50 + | £16.51 |
*price indicative
- RS Stock No.:
- 852-6799
- Mfr. Part No.:
- MGJ3T12150505MC-R7
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 120mA | |
| Number of Outputs | 3 | |
| Number of Pins | 16 | |
| Isolation Voltage | 5.2kV dc | |
| Package Type | Surface Mount | |
| Depth | 14.65mm | |
| Length | 31.24mm | |
| Standards/Approvals | RoHS | |
| Width | 22.61mm | |
| Series | MGJ3 | |
| Weight | 10.7g | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Efficiency | 82% | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 120mA | ||
Number of Outputs 3 | ||
Number of Pins 16 | ||
Isolation Voltage 5.2kV dc | ||
Package Type Surface Mount | ||
Depth 14.65mm | ||
Length 31.24mm | ||
Standards/Approvals RoHS | ||
Width 22.61mm | ||
Series MGJ3 | ||
Weight 10.7g | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Efficiency 82% | ||
Murata Isolated 3W Triple Output DC/DC Converter - MGJ3 Series
The Murata Power Solutions MGJ3 series is a range of DC-DC converters with high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters. These DC-DC converters offer a choice of asymmetric output voltages allowing optimum drive levels for best system efficiency and EMI. The MGJ3 isolated DC-DC converters have 3 configurable outputs and they are ideal for powering ’high side’ and ’low side’ gate drive circuits for IGBTs, Silicon Carbide and Mosfets in bridge circuits.
No opto feedback
Patents Pending
Optimised bipolar output voltages for IGBT/SiC & Mosfet gate drives
3 outputs configurable for all gate drive applications: +15V/-5V, +15V/-10V & +20V/-5V outputs
Characterised dv/dt immunity 80kV/μS at1.5kV
Characterised partial discharge performance
5.2kVDC isolation test voltage ’Hi Pot Test’
Ultra low coupling capacitance 15pF
SMD package
5V, 12V & 24V input voltages
105°C operating temperature
Standards
UL60950 pending, ANSI/AAMI ES60601-1, 2 MOOPs pending
