Recom DC/DC Converter, 15V/ 66 mA, 5V Input, 5V Input 1 W, Through Hole, 70 °C Max Temp -40 °C Min Temp, 6-Pin DIP
- RS Stock No.:
- 843-9594
- Mfr. Part No.:
- RY-0515S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£258.125
(exc. VAT)
£309.75
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 31 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £10.325 | £258.13 |
| 125 - 225 | £10.015 | £250.38 |
| 250 - 600 | £9.706 | £242.65 |
| 625 - 1225 | £9.396 | £234.90 |
| 1250 + | £9.086 | £227.15 |
*price indicative
- RS Stock No.:
- 843-9594
- Mfr. Part No.:
- RY-0515S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 15V | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 5V | |
| Minimum Input Voltage | 5V | |
| Output Current 1 | 66mA | |
| Mount Type | Through Hole | |
| MTBF | 135000h | |
| Number of Outputs | 1 | |
| Number of Pins | 6 | |
| Isolation Voltage | 1kV | |
| Maximum Output Power | 1W | |
| Package Type | DIP | |
| Standards/Approvals | No | |
| Depth | 10.2mm | |
| Length | 19.65mm | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 66% | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 15V | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 5V | ||
Minimum Input Voltage 5V | ||
Output Current 1 66mA | ||
Mount Type Through Hole | ||
MTBF 135000h | ||
Number of Outputs 1 | ||
Number of Pins 6 | ||
Isolation Voltage 1kV | ||
Maximum Output Power 1W | ||
Package Type DIP | ||
Standards/Approvals No | ||
Depth 10.2mm | ||
Length 19.65mm | ||
Minimum Operating Temperature -40°C | ||
Efficiency 66% | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- TW

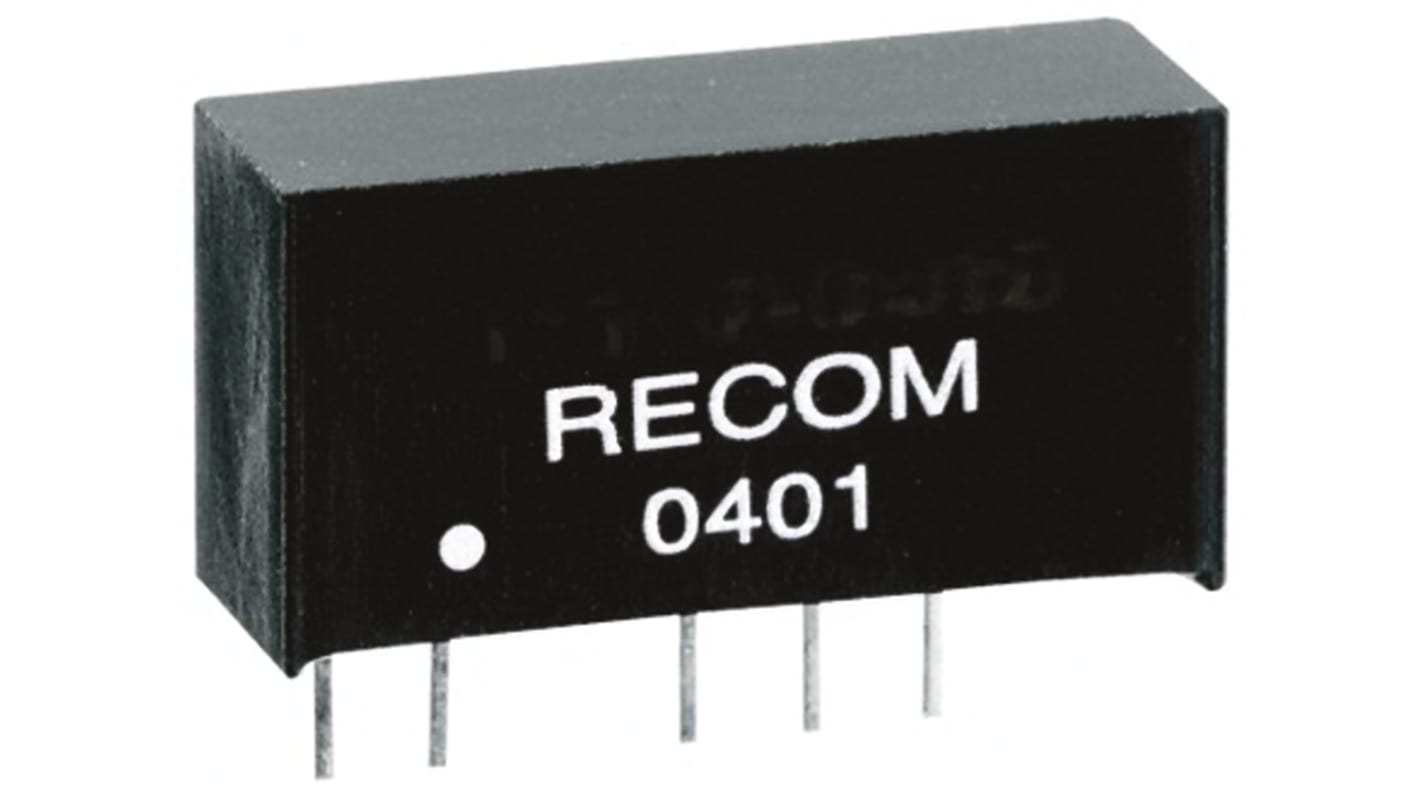

Recom 1W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RY Series
Regulated output
Control pin for remote On/Off
1kVdc isolation
UL94V-0 package material
No heatsink required
Fully encapsulated
SIP7 package
Note
Operating temperature range is with derating above 70°C.
