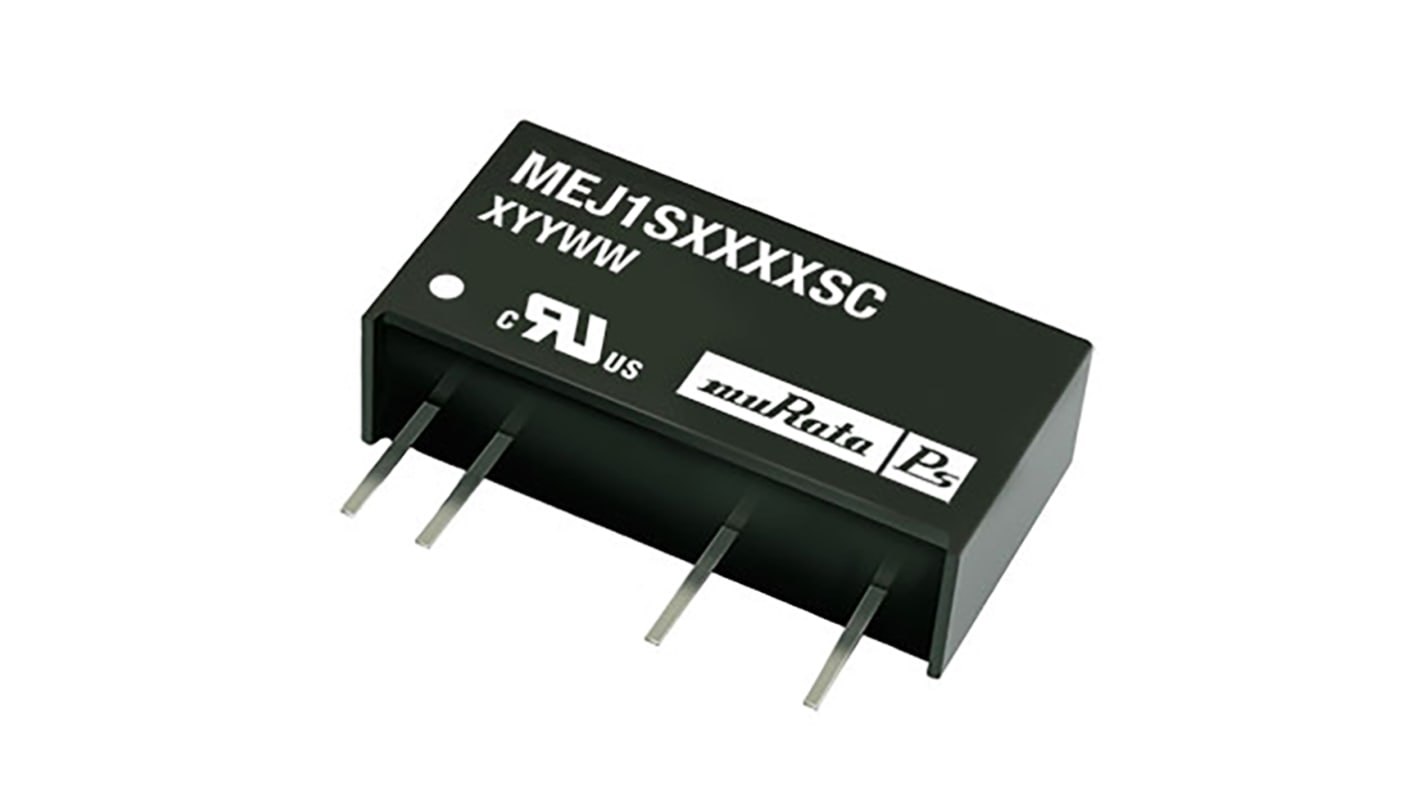

Murata Power Solutions MEJ1 DC/DC Converter, 15V dc/, 16.5V dc Input, 13.5V Input 2 W, Through Hole, 85 °C Max Temp -40

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£7.42

(exc. VAT)

£8.90

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£7.42
5 - 9£7.21
10 - 24£6.98
25 - 49£6.75
50 +£6.53

*price indicative

RS Stock No.:
829-4862
Mfr. Part No.:
MEJ1S1515SC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Product Type

DC/DC Converter

Output Voltage 1

15V dc

Minimum Input Voltage

13.5V

Maximum Input Voltage

16.5V dc

Output Current 2

66mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

2733000h

Output Voltage Adjustment Range

13.5 to 16.5 V

Ripple and Noise

40mV Pk-Pk

Isolation Voltage

5.2kV dc

Number of Pins

4

Package Type

DIP

Maximum Output Power

2W

Depth

12.65mm

Length

19.65mm

Series

MEJ1

Weight

1.56g

Standards/Approvals

RoHS, UR

Width

12.5mm

Efficiency

76.5%

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Murata 1W SIP Single and Dual Output Isolated DC-DC Converter - MEJ1 Series


The Murata Power MEJ1 is a series of isolated 1 Watt DC-DC converters, encapsulated in a 7 pin SIP package. The DC-DC converter complies with the 3rd edition of medical safety standard and provides the following MOOP (means of operator protection): 2 MOOP based upon a working voltage of 200Vrms max - 280Vpkmax, between primary and secondary and 1 MOOP based upon a working voltage of 200Vrms max, between primary and its enclosure.

Typical energy efficiencies of these DC-DC converters are in the range of 70 to 78%.

The MEJ1 series is designed for low power applications that require a high degree of isolation such as an agency-approved safety barrier for medical equipment, IGBT drivers, and control systems.

Single and dual outputs

UL 94V-0 package material

SIP package style

5.2kVDC isolation

3.3V, 5V, 12V, 15V & 24V inputs

3.3V, 5V, 9V, 12V & 15V output

Internal SMD construction

Fully encapsulated with toroidal magnetics

Pin compatible with the MEV, NMV, NMK, MEJ2, & NMJ series

Murata Power Solutions - SIP


Approvals

UL 609502, UL60601 (3rd Edition)
