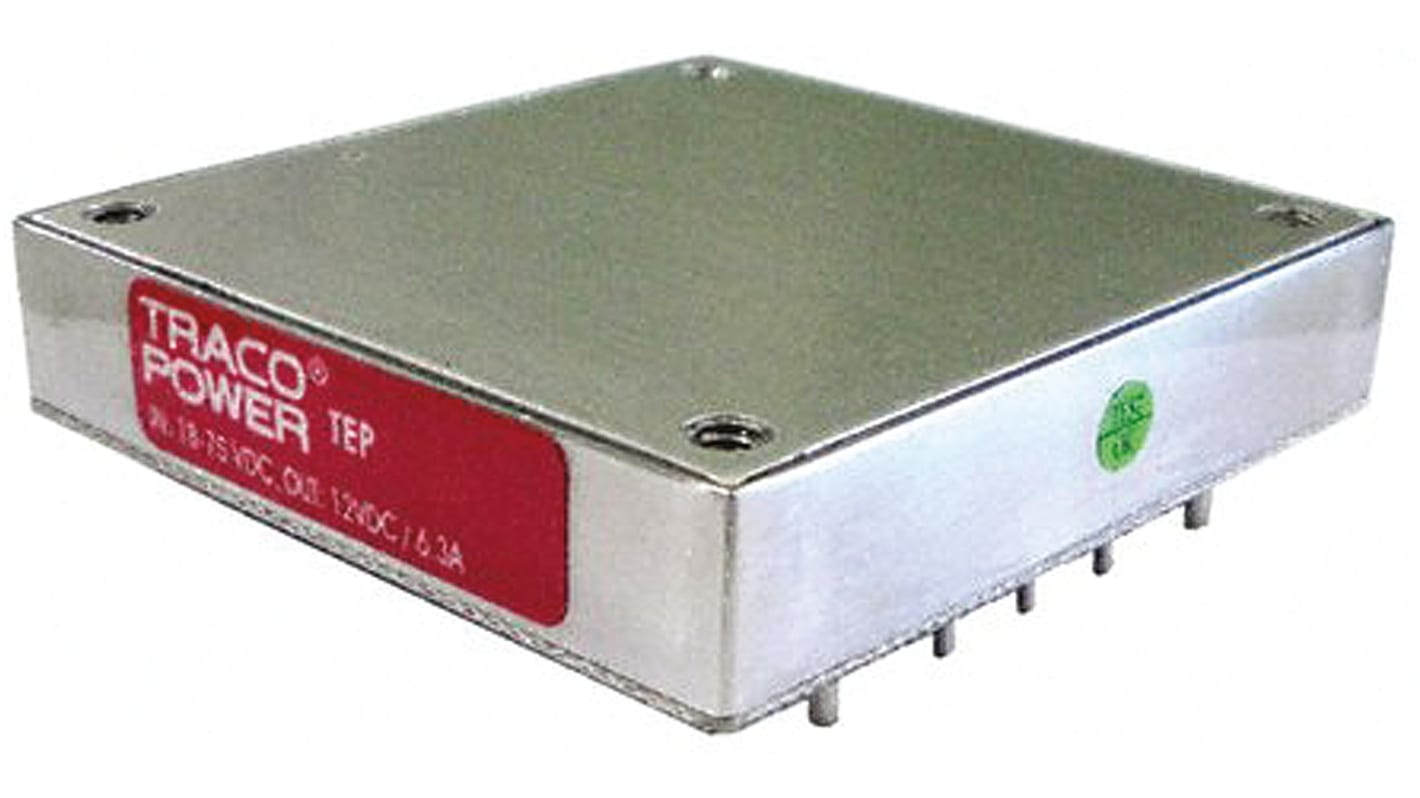

TRACOPOWER TEP 100WIR DC/DC Converter, 24V dc/, 36V dc Input 4.2 mA, 9V Input, Chassis Mount, 75 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£161.32

(exc. VAT)

£193.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 22 unit(s) ready to ship
  • Plus 52 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£161.32
5 - 9£156.48
10 - 24£151.64
25 - 49£145.19
50 +£138.73

*price indicative

RS Stock No.:
812-5093
Distrelec Article No.:
303-73-439
Mfr. Part No.:
TEP 100-2415WIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

4.2mA

Mount Type

Chassis Mount

MTBF

410000h

Number of Outputs

2

Output Voltage Adjustment Range

-20 to 10 %

Input Ratio

1:6

Number of Pins

9

Isolation Voltage

2.25kV dc

Package Type

Half Brick

Maximum Output Power

100W

Depth

12.1mm

Standards/Approvals

No

Length

57.9mm

Series

TEP 100WIR

Minimum Operating Temperature

-40°C

Efficiency

90%

Maximum Operating Temperature

75°C

Traco Power Chassis-Mount DC-to-DC Converter, 9 to 36V DC Input, 100W Power Rating - TEP 100WIR Series - TEP 100-2415WIR


Use this DC-to-DC converter from Traco Power to control voltage supply levels in your industrial applications. It has a high power rating of 100W to support heavy-duty use. For protection against damage, the device is galvanically isolated, so it allows signals to pass through but blocks harmful currents. It also features a natural convection cooling system to help prevent overheating. A 90% efficiency rating means there's minimal power loss for reliable performance and, as the converter has a MTBF of 409,000 hours, it's a long-lasting choice.

Features & Benefits


• Wide input voltage range of 9 to 36V DC for use in low-voltage systems

• Soft start function prevents overloading of the input when the output is turned on

• Adjustable output voltage lets you set power levels to suit your system

• Fast startup time of 75ms to quickly convert voltages

Applications


• Mining and minerals processing

• Construction and earth-moving equipment

• Telecommunication networks

What's the operating temperature range of this converter?


This DC-to-DC converter has a wide operating temperature range between -40°C and +75°C. This makes it a reliable choice for demanding industrial environments.
