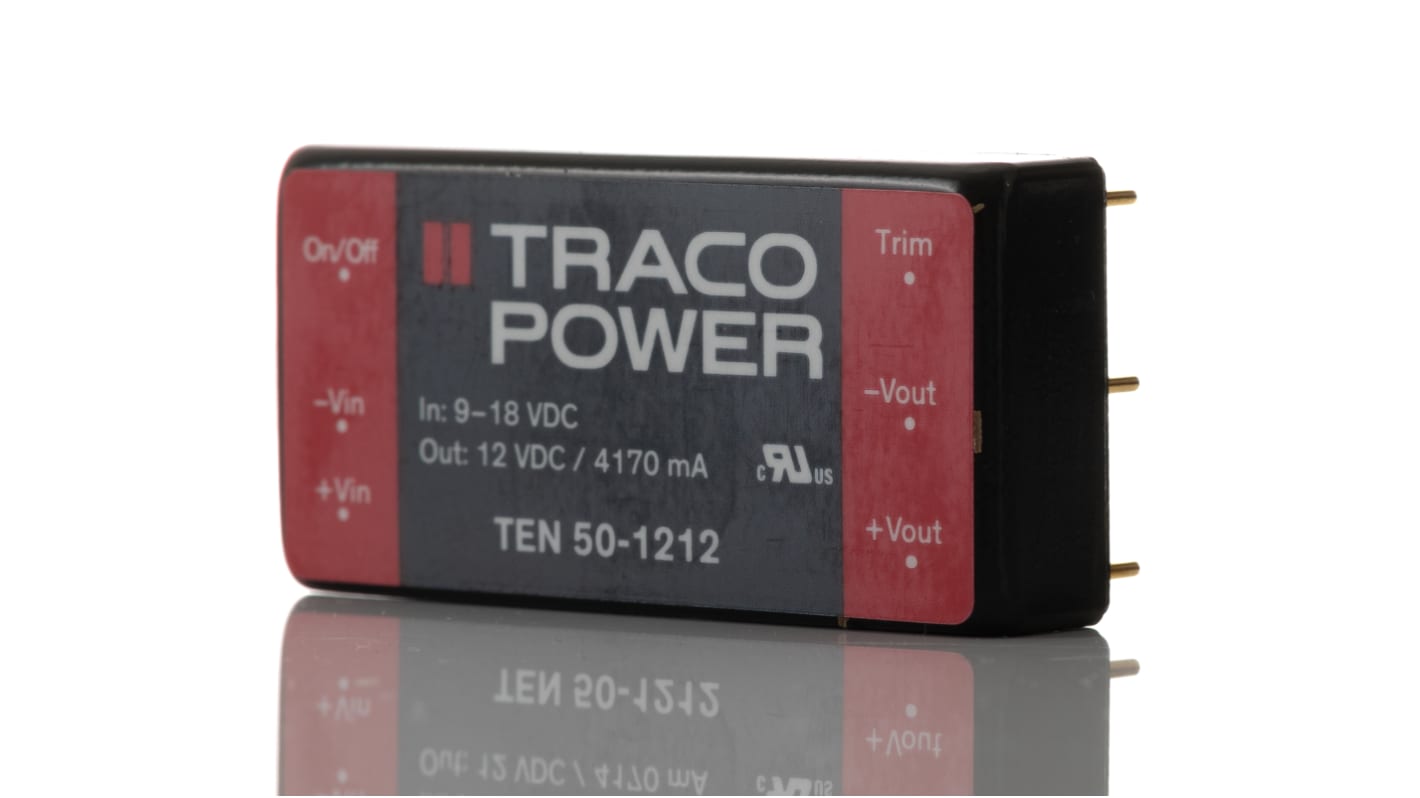

TRACOPOWER TEN 50 DC-DC Converter, 12V dc/ 4.17A Output, 9 → 18 V dc Input, 50W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 770-2283
- Mfr. Part No.:
- TEN 50-1212
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£68.52
(exc. VAT)
£82.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 9 unit(s) shipping from 06 October 2025
- Plus 29 unit(s) shipping from 06 October 2025
- Plus 146 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £68.52 |
5 - 9 | £66.46 |
10 - 24 | £64.41 |
25 - 49 | £61.67 |
50 + | £58.92 |
*price indicative
- RS Stock No.:
- 770-2283
- Mfr. Part No.:
- TEN 50-1212
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 12V dc | |
Input Voltage Range | 9 → 18 V dc | |
Power Rating | 50W | |
Input Voltage Nominal | 12 V dc | |
Output Current | 4.17A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | 10.8 → 13.2V dc | |
Package | 2 x 1 in | |
Isolation Voltage | 1.5kV dc | |
Depth | 11mm | |
Width | 25.4mm | |
Length | 50.8mm | |
Series | TEN 50 | |
Load Regulation | 0.005 | |
Maximum Temperature | +85°C | |
Minimum Temperature | -40°C | |
Standards Met | CE Certified | |
Efficiency | 91% | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 50W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 4.17A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10.8 → 13.2V dc | ||
Package 2 x 1 in | ||
Isolation Voltage 1.5kV dc | ||
Depth 11mm | ||
Width 25.4mm | ||
Length 50.8mm | ||
Series TEN 50 | ||
Load Regulation 0.005 | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Standards Met CE Certified | ||
Efficiency 91% | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 12V DC Output Voltage, 91% Efficiency - TEN 50 Series - TEN 50-1212
Need to step an unsteady input voltage down or up? It's a walk in the park with this DC-DC converter from Traco Power. When supplied with an input voltage between 9 and 18V DC, it provides a steady output of 12V DC. This means it reliably powers your low-voltage components. An isolation voltage of 1.5kV DC helps to minimise the risk of electrical damage in sensitive applications. Thanks to its wide operating temperature range between -40°C and +85°C, this unit rolls with the punches in harsh work environments.
Features & Benefits
• High efficiency of 91% means it's an energy-saving component
• Through-hole mounting ensures a strong, reliable connection
• Protection against overload and short circuits for electrical safety
• Light weight of 30g to place minimal strain on your equipment
• Aluminium alloy housing for resistance to impact and abrasion
• Through-hole mounting ensures a strong, reliable connection
• Protection against overload and short circuits for electrical safety
• Light weight of 30g to place minimal strain on your equipment
• Aluminium alloy housing for resistance to impact and abrasion
Applications
• Instrumentation
• Power distribution
• Mobile equipment
• Power distribution
• Mobile equipment
How large is this product?
This DC-DC converter has compact dimensions of 50.8 (L) x 25.4 (W) x 11mm (D), so it takes up minimal space on your PCB.
