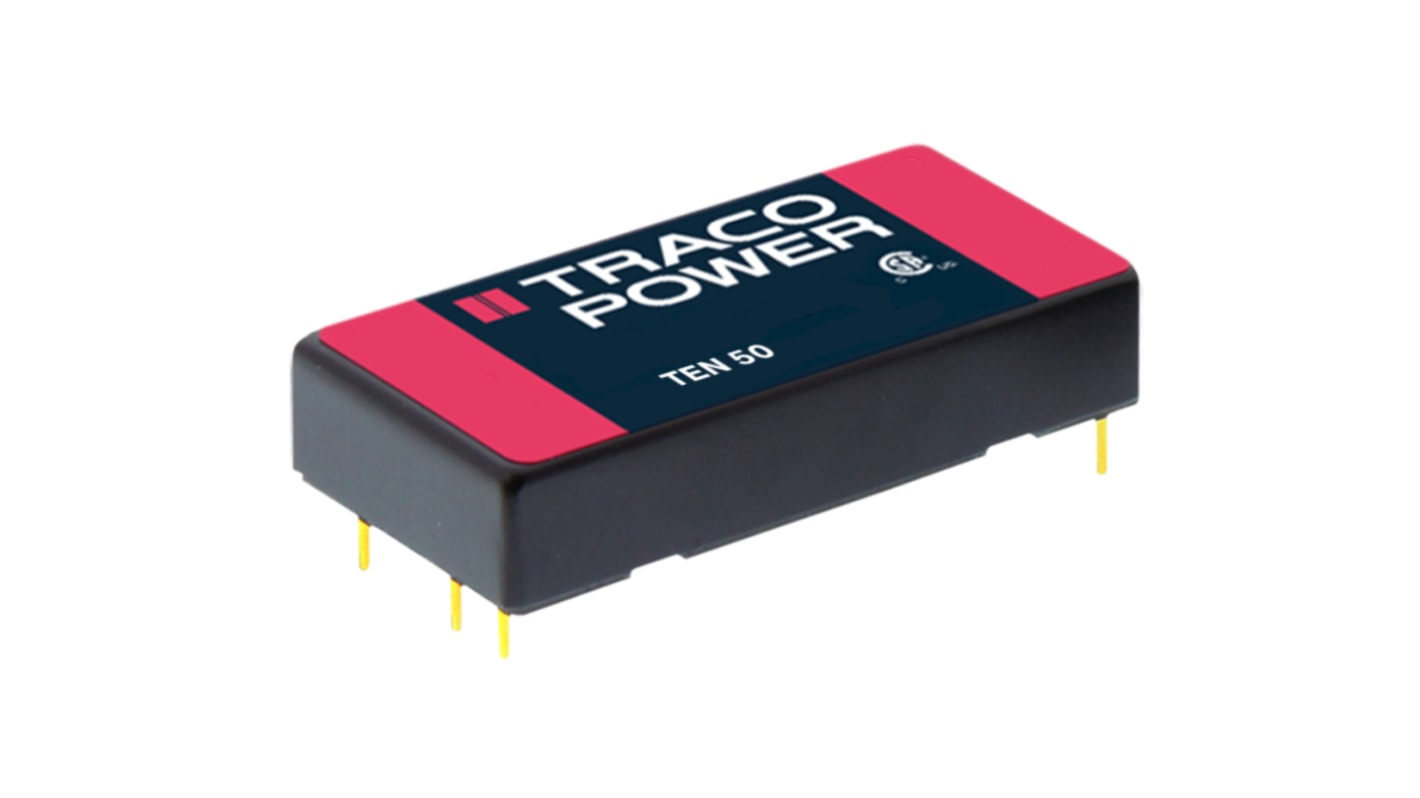

TRACOPOWER TEN 50 DC-DC Converter, 12V dc/ 4.17A Output, 18 → 36 V dc Input, 50W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-6017
- Mfr. Part No.:
- TEN 50-2412
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£742.40
(exc. VAT)
£890.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £742.40 | £74.24 |
5 - 9 | £720.12 | £72.012 |
10 - 24 | £697.86 | £69.786 |
25 - 49 | £668.16 | £66.816 |
50 + | £638.47 | £63.847 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£78.81
(exc. VAT)
£94.57
(inc. VAT)
- RS Stock No.:
- 166-6017
- Mfr. Part No.:
- TEN 50-2412
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 12V dc | |
Input Voltage Range | 18 → 36 V dc | |
Power Rating | 50W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 4.17A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | 10.8 → 13.2V dc | |
Isolation Voltage | 1.5kV dc | |
Depth | 11mm | |
Width | 25.4mm | |
Length | 50.8mm | |
Series | TEN 50 | |
Load Regulation | 0.005 | |
Minimum Temperature | -40°C | |
Efficiency | 92% | |
Maximum Temperature | +85°C | |
Standards Met | CE | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 50W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 4.17A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10.8 → 13.2V dc | ||
Isolation Voltage 1.5kV dc | ||
Depth 11mm | ||
Width 25.4mm | ||
Length 50.8mm | ||
Series TEN 50 | ||
Load Regulation 0.005 | ||
Minimum Temperature -40°C | ||
Efficiency 92% | ||
Maximum Temperature +85°C | ||
Standards Met CE | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 24V DC Nominal Input Voltage Rating, 92% Efficiency - TEN 50 Series - TEN 50-2412
Tame shifting inputs and give your application the efficient power it needs with this DC-DC converter from Traco Power. The unit turns takes supplies between 18 and 36V DC and transforms them into a 12V DC output your equipment can use. As it delivers 92% efficiency, it minimises energy lost to waste heat and runs cool. An integrated filter assures you EMI won't disturb the smooth working of your system.
Features & Benefits
• Through-hole mounting for quick and easy PCB installation
• 1500V DC isolation separates incoming and outgoing circuits to ramp up electrical safety
• Streamlined dimensions of 50.8 (L) x 25.4 (W) x 10.2mm (D) for efficient board packing
• Withstands temperature extremes of -40°C to +85°C for reliability in challenging environments
• 1500V DC isolation separates incoming and outgoing circuits to ramp up electrical safety
• Streamlined dimensions of 50.8 (L) x 25.4 (W) x 10.2mm (D) for efficient board packing
• Withstands temperature extremes of -40°C to +85°C for reliability in challenging environments
Applications
• Mobile consumer electronics
• IT systems
• Testing and measuring equipment
• Industrial control networks
• IT systems
• Testing and measuring equipment
• Industrial control networks
How do I switch this DC-DC converter on and off?
The component has a remote on/off function you can link to a switch, such as one you'd use to start or stop a motor. This means you don't have to install an additional switch for control.
