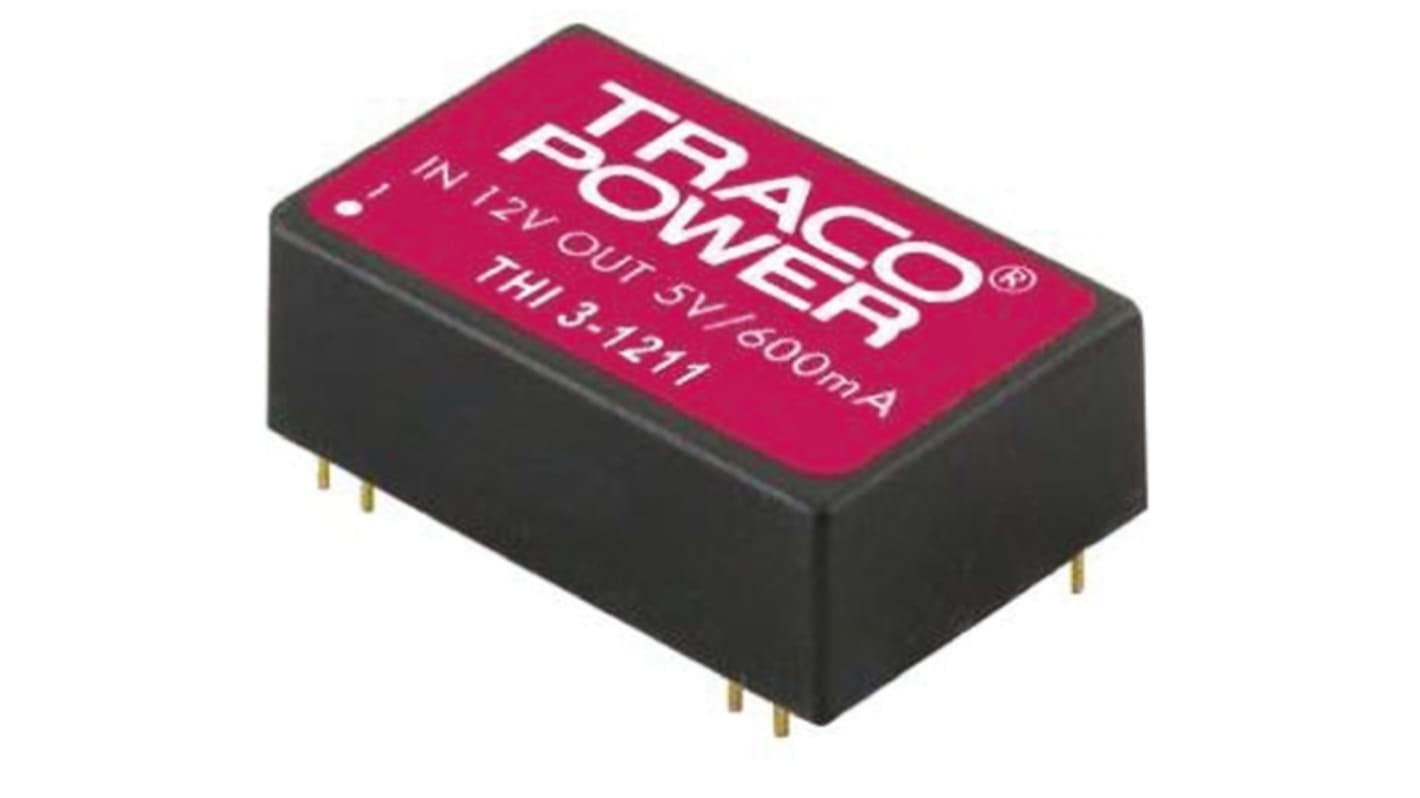

TRACOPOWER THI 3 DC/DC Converter, 5V dc/ 600 mA, 5V dc Input, 5V dc Input 3 W, Through Hole, 75 °C Max Temp -40 °C Min
- RS Stock No.:
- 770-2179
- Distrelec Article No.:
- 110-50-290
- Mfr. Part No.:
- THI 3-0511
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£24.52
(exc. VAT)
£29.42
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.52 |
| 5 - 9 | £23.79 |
| 10 - 24 | £23.06 |
| 25 - 49 | £22.08 |
| 50 + | £21.09 |
*price indicative
- RS Stock No.:
- 770-2179
- Distrelec Article No.:
- 110-50-290
- Mfr. Part No.:
- THI 3-0511
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 5V dc | |
| Minimum Input Voltage | 5V dc | |
| Output Current 1 | 600mA | |
| Mount Type | Through Hole | |
| MTBF | 1000000h | |
| Number of Outputs | 1 | |
| Number of Pins | 5 | |
| Isolation Voltage | 4kV ac | |
| Maximum Output Power | 3W | |
| Package Type | DIN-24 | |
| Length | 31.8mm | |
| Depth | 10.5mm | |
| Standards/Approvals | No | |
| Series | THI 3 | |
| Maximum Operating Temperature | 75°C | |
| Efficiency | 60% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 5V dc | ||
Minimum Input Voltage 5V dc | ||
Output Current 1 600mA | ||
Mount Type Through Hole | ||
MTBF 1000000h | ||
Number of Outputs 1 | ||
Number of Pins 5 | ||
Isolation Voltage 4kV ac | ||
Maximum Output Power 3W | ||
Package Type DIN-24 | ||
Length 31.8mm | ||
Depth 10.5mm | ||
Standards/Approvals No | ||
Series THI 3 | ||
Maximum Operating Temperature 75°C | ||
Efficiency 60% | ||
Minimum Operating Temperature -40°C | ||
Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - THI-3 Series
The THI-3 Series is a new family of High isolation 3W DC-DC converters, they have a reinforced insulation system, with I/O isolation voltage specified for 3000VACrms. These Tracopower converters come in an encapsulated DIP-24 package and are available in 15 models, covering 5, 12 and 24 VDC input voltage and single or dual output voltage. The THI-3 DC/DC converters are cost effective and they are an ideal solution for applications in industrial control and medical instrumentation which requires a certified supplementary or reinforced insulation system, making them suitable for medical safety or industrial standards.
3000VAC reinforced insulation
300VAC working voltage insulation rated
Medical safety to UL/CSA/EN/IEC 60601-1 3rd edition and 2 x MOOP
Fully regulated Output voltage
Input filter meets EN 55022, class A and FCC, level A
Operating temperature -40 to +75°C
Low leakage current
Low coupling capacitance
Short circuit protection
3 year product warranty
Standards
EN 60950-1, UL60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, EN 60601-1, UL 60601-1, IEC 60601-1, CSA C22.2 No. 601-1, 2 x MOOP
