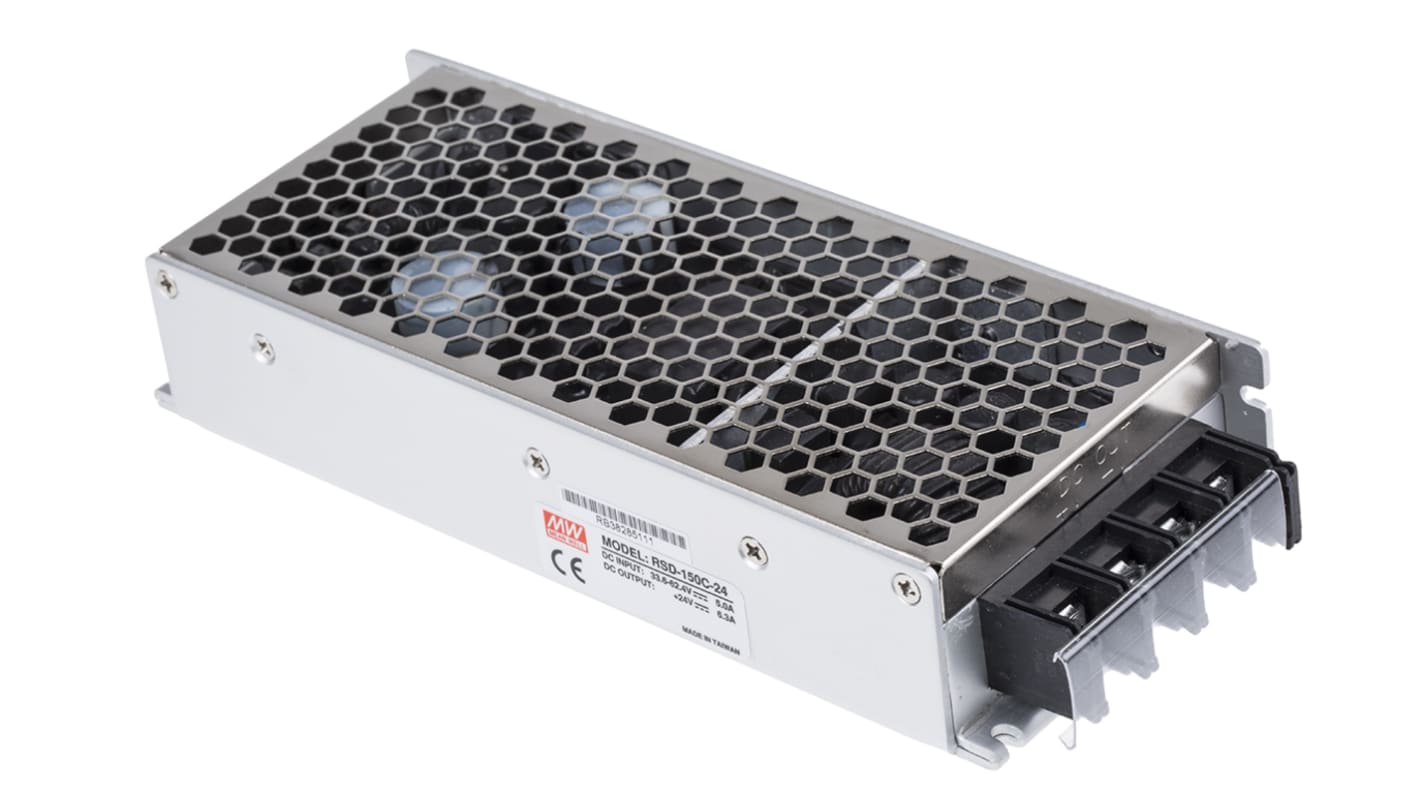

MEAN WELL RSD 150 DC/DC Converter, 24V dc/, 48V dc Input 6.3 A, 33.6V Input, Chassis, 70 °C Max Temp -40 °C Min Temp

View all DC-DC Converters

Subtotal (1 unit)*

£67.70

(exc. VAT)

£81.24

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 15 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£67.70

*price indicative

RS Stock No.:
753-7852
Distrelec Article No.:
301-56-952
Mfr. Part No.:
RSD-150C-24
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

DC/DC Converter

Output Voltage 1

24V dc

Maximum Input Voltage

48V dc

Minimum Input Voltage

33.6V

Output Current 1

6.3A

Output Current 2

6.3A

Mount Type

Chassis

MTBF

223200h

Number of Outputs

1

Ripple and Noise

150mV Pk-Pk

Isolation Voltage

4kV dc

Input Ratio

2:1

Maximum Output Power

151.2W

Series

RSD 150

Width

36mm

Depth

36mm

Standards/Approvals

EN/IEC

Length

189mm

Weight

0.8kg

Minimum Operating Temperature

-40°C

Efficiency

91%

Maximum Operating Temperature

70°C

Mean Well 150W Railway Certified Regulated Isolated DC-DC Converter - RSD 150 Series


150W enclosed single output isolated DC to DC converters with a 2:1 wide input range and a 1U low profile of 36mm. The design of these single output isolated DC to DC converters complies with railway certificates (EN50155, IEC60571, IEC61373, EN50121-3-2) making them suitable for use in vehicles that are equipped with DC power source. These railway certified isolated DC to DC converters have a high efficiency circuit design and are semi-encapsulated for PCB protection.

2:1 wide input range

Up to 92% efficiency

4000VDC I/O isolation

Compliance to EN50155 (railway certification)

Free air convection cooling

Semi-encapsulated for PCB protection

Built-in constant current limiting circuit

Use of 105°C long life electrolytic capacitors

100% full load burn-in test

5G anti-vibration ability

LED indication for power-on

Short circuit, overload, over voltage, over temperature and input reverse polarity protection

EMC compliance to EN55022 (CISPR22) Conduction Emission: Class A, Radiation Emission: Class B ; EN50121-3-2

Note

MTBF to MIL-HDBK-217F (25°C )
Power derates above 55°C (without base plate), no derating with base plate

Standards

Meet IEC60950-1(LVD)
Railway standards: Meet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC
