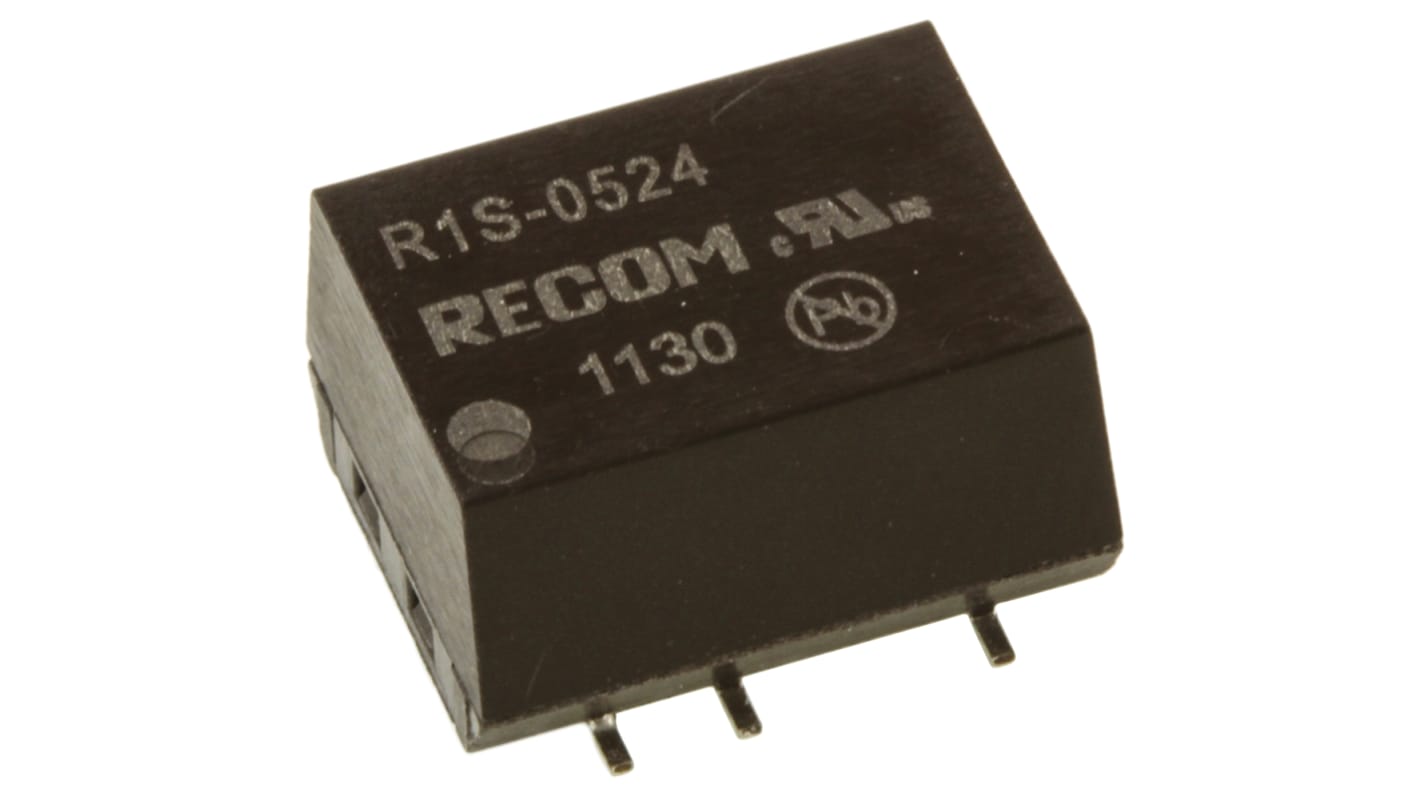

Recom R1S DC-DC Converter, 24V dc/ 42mA Output, 4.5 → 5.5 V dc Input, 1W, Surface Mount, +100°C Max Temp -40°C
- RS Stock No.:
- 706-3626
- Mfr. Part No.:
- R1S-0524
- Brand:
- Recom
6 In stock - FREE next working day delivery available
Added
Price Each
£6.56
(exc. VAT)
£7.87
(inc. VAT)
Units | Per unit |
1 - 4 | £6.56 |
5 - 9 | £6.36 |
10 - 24 | £6.17 |
25 - 49 | £5.97 |
50 + | £5.77 |
- RS Stock No.:
- 706-3626
- Mfr. Part No.:
- R1S-0524
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 1W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R1S & R1D Series
Enclosed un-potted open frame type converters
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 84%
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 84%
Note
Operating temperature is without derating.
MTBF to MIL-HDBK 217F (+25°C).
MTBF to MIL-HDBK 217F (+25°C).
Standards
UL60950-1
Approvals
CB, CSA, UL recognised component
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Input Voltage Range | 4.5 → 5.5 V dc |
Power Rating | 1W |
Input Voltage Nominal | 5 V dc |
Output Current | 42mA |
Mounting Type | Surface Mount |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 8 |
Isolation Voltage | 1kV dc |
Length | 12.75mm |
Depth | 6.7mm |
Series | R1S |
Load Regulation | ±6% |
Minimum Temperature | -40°C |
Maximum Temperature | +100°C |
