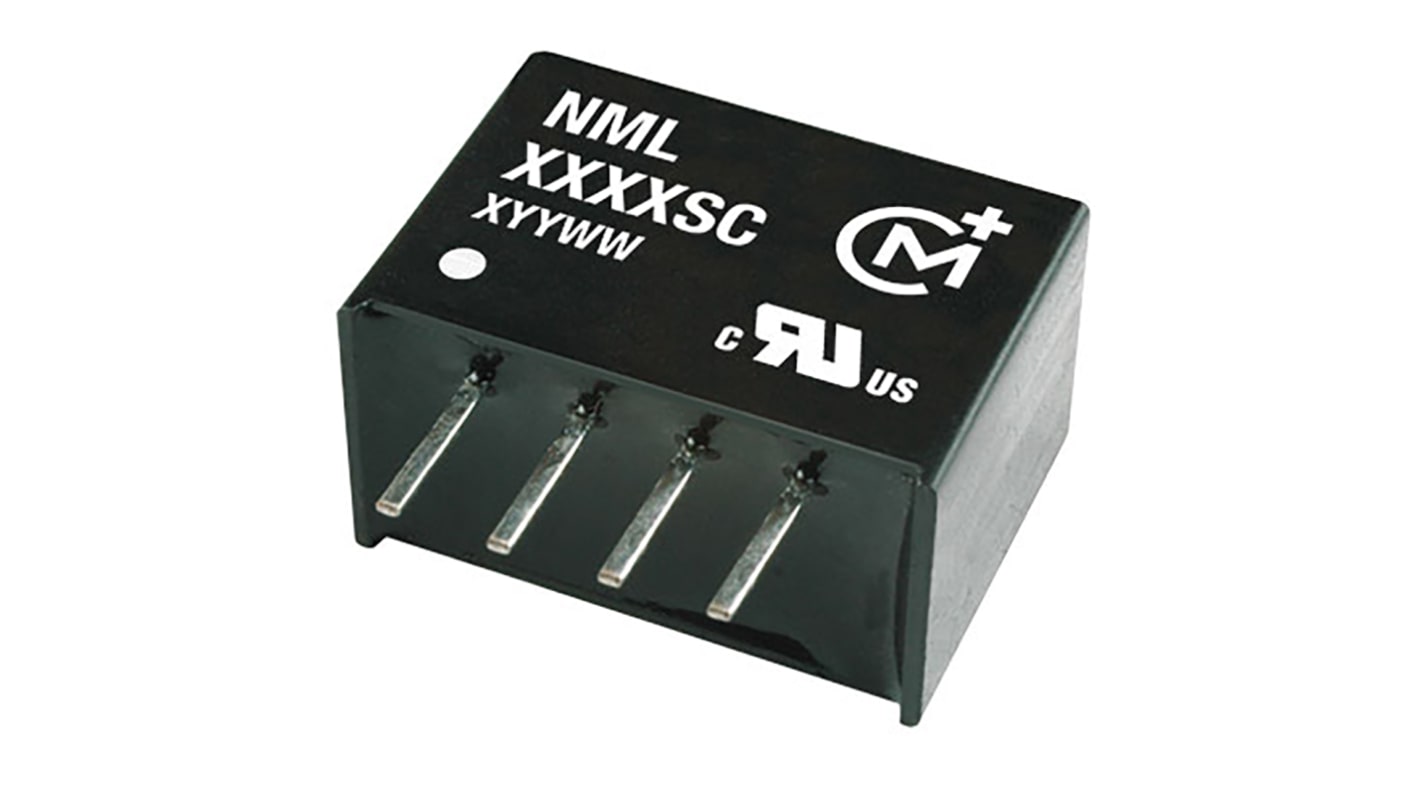

Murata Power Solutions NML DC/DC Converter, 15V dc/ 133 mA, 12V Input, 10.8V Input 2 W, Through Hole, Through Hole, 85
- RS Stock No.:
- 689-5267
- Mfr. Part No.:
- NML1215SC
- Brand:
- Murata Power Solutions
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 689-5267
- Mfr. Part No.:
- NML1215SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 12V | |
| Minimum Input Voltage | 10.8V | |
| Output Current 1 | 133mA | |
| Mount Type | Through Hole, Through Hole | |
| MTBF | 328000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 200mV Pk-Pk | |
| Number of Pins | 4 | |
| Isolation Voltage | 1kV dc | |
| Maximum Output Power | 2W | |
| Package Type | SIP | |
| Standards/Approvals | RoHS | |
| Length | 14mm | |
| Weight | 2g | |
| Width | 10mm | |
| Series | NML | |
| Depth | 10mm | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 85% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 12V | ||
Minimum Input Voltage 10.8V | ||
Output Current 1 133mA | ||
Mount Type Through Hole, Through Hole | ||
MTBF 328000h | ||
Number of Outputs 1 | ||
Ripple and Noise 200mV Pk-Pk | ||
Number of Pins 4 | ||
Isolation Voltage 1kV dc | ||
Maximum Output Power 2W | ||
Package Type SIP | ||
Standards/Approvals RoHS | ||
Length 14mm | ||
Weight 2g | ||
Width 10mm | ||
Series NML | ||
Depth 10mm | ||
Minimum Operating Temperature -40°C | ||
Efficiency 85% | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
Murata 2W SIP Single Output Unregulated Isolated DC-DC Converter - NML Series
Isolated SIP4 package
1kVdc isolation
Unbalanced loading capability
Fully encapsulated
UL 94V-0 package material
Murata Power Solutions - SIP
