Murata Power Solutions NMH DC/DC Converter, 12V dc/ 83 mA, 26.4V dc Input, 21.6V Input 2 W, Through Hole, 85 °C Max Temp

View all DC-DC Converters
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
689-5138
Mfr. Part No.:
NMH2412DC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Product Type

DC/DC Converter

Output Voltage 1

12V dc

Maximum Input Voltage

26.4V dc

Minimum Input Voltage

21.6V

Output Current 1

83mA

Output Current 2

83mA

Output Voltage 2

-12V dc

Mount Type

Through Hole

Number of Outputs

2

MTBF

183000h

Ripple and Noise

150mV Pk-Pk

Isolation Voltage

1kV dc

Number of Pins

14

Package Type

DIP

Maximum Output Power

2W

Standards/Approvals

RoHS

Length

19.5mm

Depth

6.8mm

Weight

2.85g

Series

NMH

Width

19.5mm

Efficiency

86%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

COO (Country of Origin):
CN

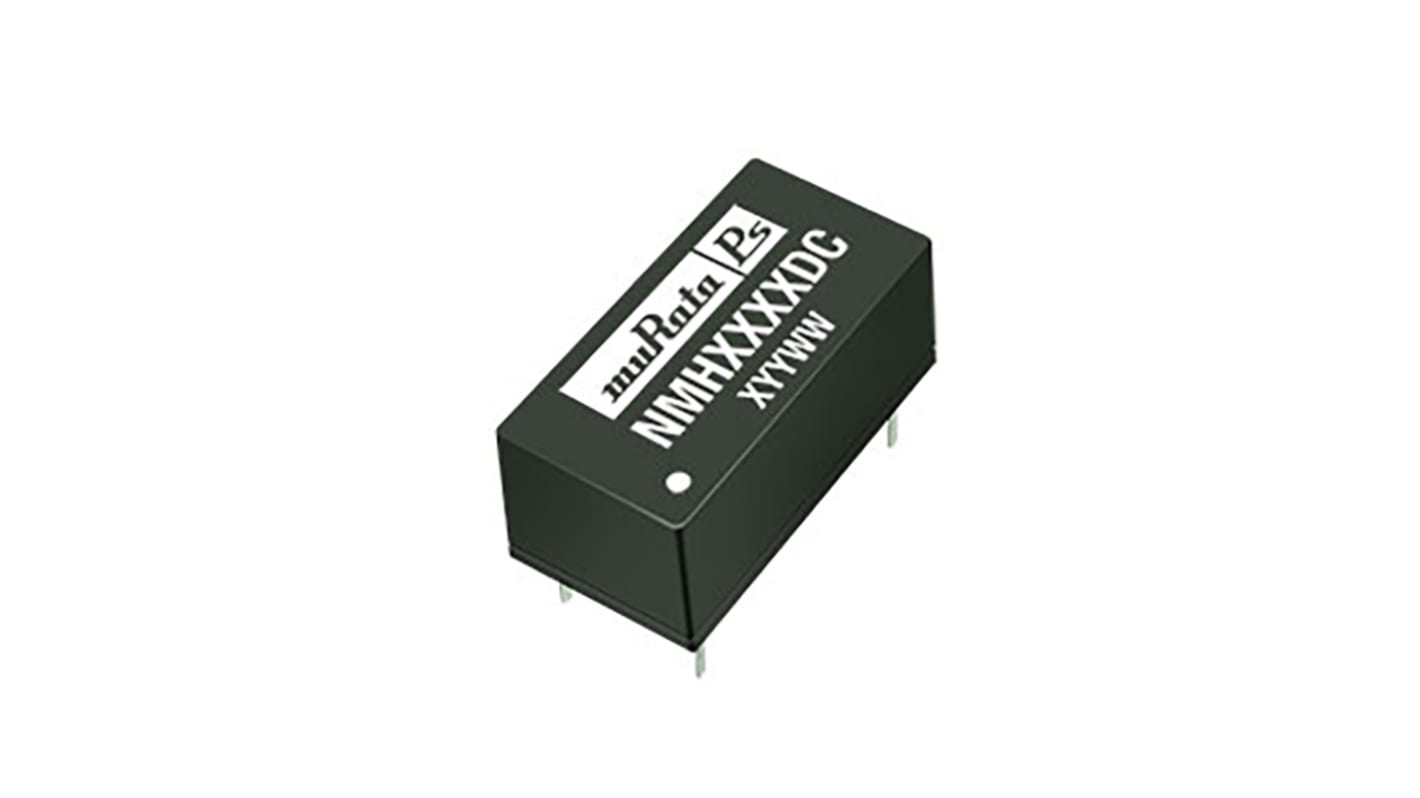

Murata 2W DIP Dual Output Unregulated Isolated DC-DC Converter - NMH Series


High efficiency

Unregulated output

No de-rating

1kV input/output isolation

No external components required

Internal SMD construction

UL 94V-0 package material

DIP14 plastic package

Murata Power Solutions - DIP


Note

MTBF to MIL-HDBK-217F (25°C).
