Murata Power Solutions MEV1 DC/DC Converter, 5V dc/, 13.2V dc Input, 10.8V Input 1 W, Through Hole, 85 °C Max Temp -40
- RS Stock No.:
- 689-4808
- Mfr. Part No.:
- MEV1S1205SC
- Brand:
- Murata Power Solutions
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£5.89
(exc. VAT)
£7.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.89 |
| 5 - 9 | £5.70 |
| 10 - 24 | £5.52 |
| 25 - 49 | £5.35 |
| 50 + | £5.18 |
*price indicative
- RS Stock No.:
- 689-4808
- Mfr. Part No.:
- MEV1S1205SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 13.2V dc | |
| Minimum Input Voltage | 10.8V | |
| Output Current 2 | 200A | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 7569000h | |
| Output Voltage Adjustment Range | 10.8/13.2 V | |
| Ripple and Noise | 15mV Pk-Pk | |
| Number of Pins | 7 | |
| Isolation Voltage | 3kV dc | |
| Maximum Output Power | 1W | |
| Package Type | SIP | |
| Series | MEV1 | |
| Width | 6.8mm | |
| Standards/Approvals | RoHS | |
| Length | 19.5mm | |
| Depth | 10mm | |
| Weight | 2.5g | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 84% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 13.2V dc | ||
Minimum Input Voltage 10.8V | ||
Output Current 2 200A | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 7569000h | ||
Output Voltage Adjustment Range 10.8/13.2 V | ||
Ripple and Noise 15mV Pk-Pk | ||
Number of Pins 7 | ||
Isolation Voltage 3kV dc | ||
Maximum Output Power 1W | ||
Package Type SIP | ||
Series MEV1 | ||
Width 6.8mm | ||
Standards/Approvals RoHS | ||
Length 19.5mm | ||
Depth 10mm | ||
Weight 2.5g | ||
Minimum Operating Temperature -40°C | ||
Efficiency 84% | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN

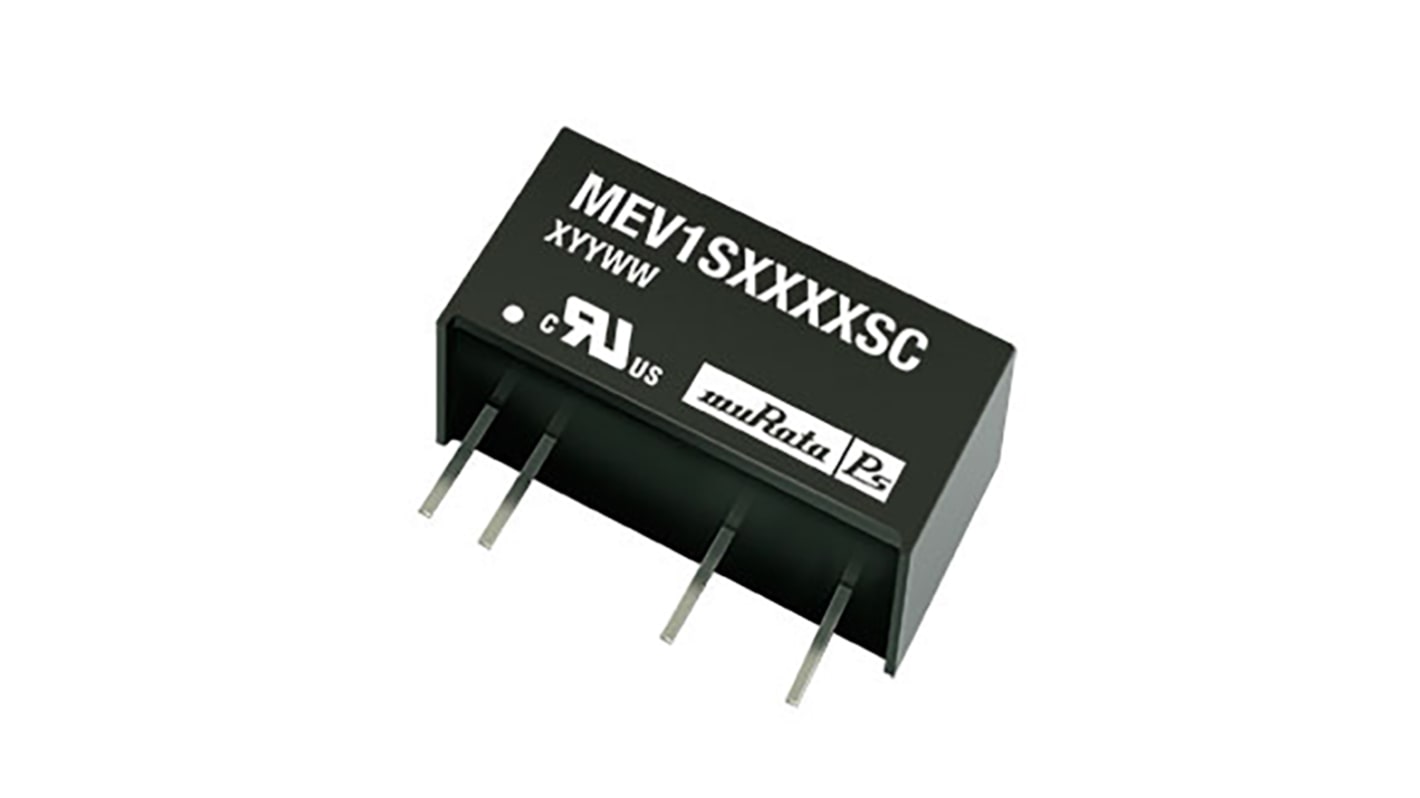

Murata 1W SIP Single Output Unregulated Isolated DC-DC Converter - MEV Series
1 W Single output SIP7 unregulated DC to DC converters with standard industry pinout and efficiency rating of up to 89%. These SIP7 DC to DC converters have an improved regulation performance from 1.8% making them suitable for applications where a wide output voltage variation can not be tolerated. An ideal application for these DC to DC converters is the provision of local supplies on control system boards supplies with the additional benefit of having 3kVDC galvanic isolation to reduce any switching noise.
SIP7 package with industry standard pinout
3kVdc isolation
Efficiency of up to 89%
Wide temperature performance of -40 to + 85°C at full 1W load
Power density to 0.85W/cm3
No heatsink or external components required
Fully encapsulated with toroidal magnetics
No electrolytic or tantalum capacitors
UL94V-0 package material
Murata Power Solutions - SIP
Note
MTBF to MIL-HDBK-217F
