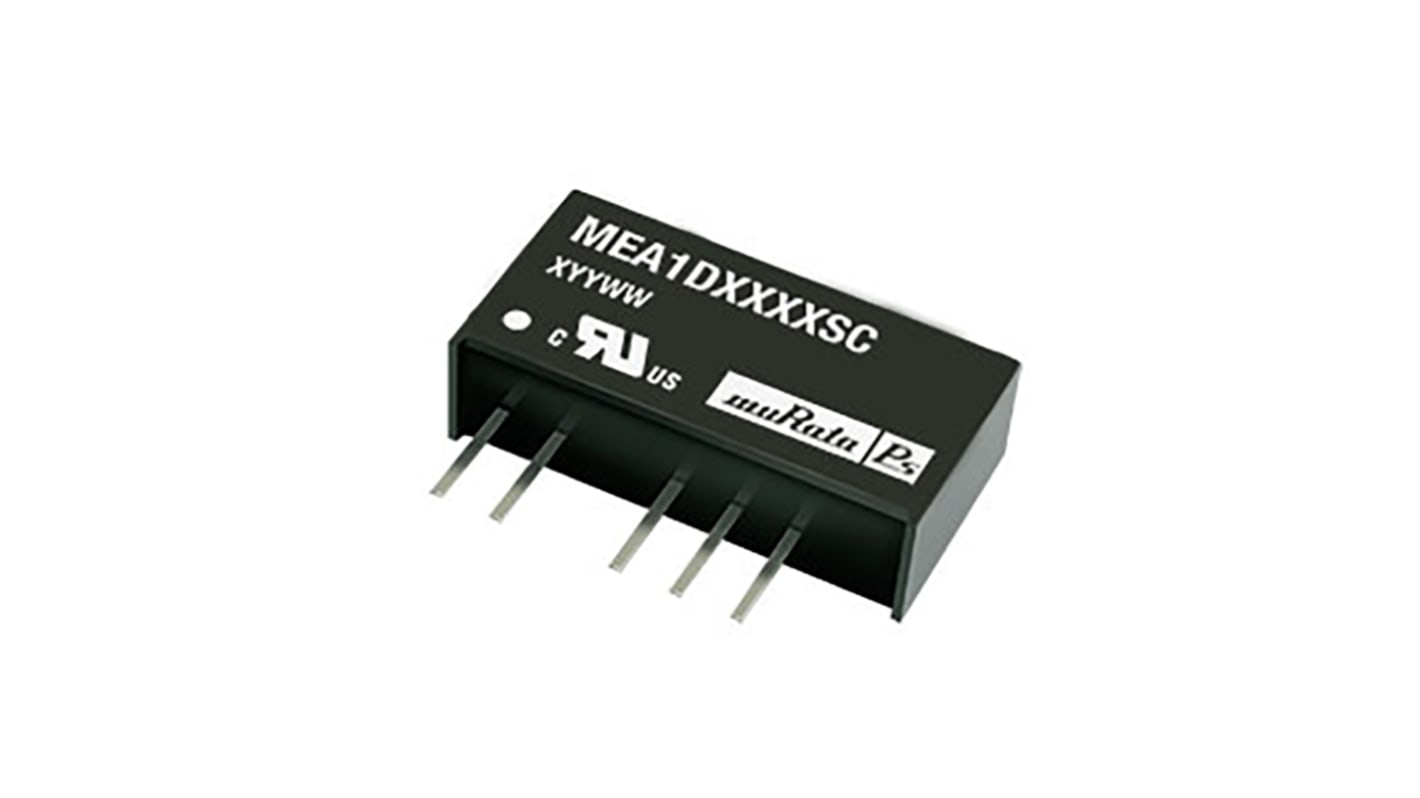

Murata Power Solutions MEA1 DC/DC Converter, 9V/ 56 A, 13.2V Input, 10.8V Input 0.25 W, Through Hole, Through Hole, 85
- RS Stock No.:
- 689-4781
- Mfr. Part No.:
- MEA1D1209SC
- Brand:
- Murata Power Solutions
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 689-4781
- Mfr. Part No.:
- MEA1D1209SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 9V | |
| Maximum Input Voltage | 13.2V | |
| Minimum Input Voltage | 10.8V | |
| Output Current 1 | 56A | |
| Output Current 2 | -56A | |
| Output Voltage 2 | -9V | |
| Mount Type | Through Hole, Through Hole | |
| Number of Outputs | 2 | |
| MTBF | 3083000h | |
| Ripple and Noise | 20mV Pk-Pk | |
| Output Voltage Adjustment Range | 10.8/13.2 V | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 4 | |
| Maximum Output Power | 0.25W | |
| Package Type | SIP | |
| Series | MEA1 | |
| Width | 6.9mm | |
| Length | 19.5mm | |
| Depth | 10mm | |
| Standards/Approvals | RoHS | |
| Weight | 1.3g | |
| Efficiency | 86.5% | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Product Type DC/DC Converter | ||
Output Voltage 1 9V | ||
Maximum Input Voltage 13.2V | ||
Minimum Input Voltage 10.8V | ||
Output Current 1 56A | ||
Output Current 2 -56A | ||
Output Voltage 2 -9V | ||
Mount Type Through Hole, Through Hole | ||
Number of Outputs 2 | ||
MTBF 3083000h | ||
Ripple and Noise 20mV Pk-Pk | ||
Output Voltage Adjustment Range 10.8/13.2 V | ||
Isolation Voltage 1kV dc | ||
Number of Pins 4 | ||
Maximum Output Power 0.25W | ||
Package Type SIP | ||
Series MEA1 | ||
Width 6.9mm | ||
Length 19.5mm | ||
Depth 10mm | ||
Standards/Approvals RoHS | ||
Weight 1.3g | ||
Efficiency 86.5% | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
Murata 1W SIP Dual Output Unregulated Isolated DC-DC Converter - MEA Series
1 W dual output SIP7 unregulated DC to DC converters with standard industry pinout and efficiency rating of up to 89.5%. These SIP7 DC to DC converters have an improved regulation performance of ≤5% making them suitable for applications where a wide output voltage variation can not be tolerated. An Ideal application for these DC to DC converters is the provision of dual rail supplies with the additional benefit of having galvanic isolation to reduce any switching noise. All of the rated power can be drawn from a single output providing the total load does not exceed 1watt.
SIP7 package with industry standard pinout
Efficiency of up to 89.5%
Wide temperature performance of -40 to + 85°C at full 1W load
Power density to 0.85W/cm3
Power sharing on output
No heatsink or external components required
Fully encapsulated with toroidal magnetics
No electrolytic or tantalum capacitors
UL94V-0 package material
Murata Power Solutions - SIP
Note
MTBF to MIL-HDBK-217F
