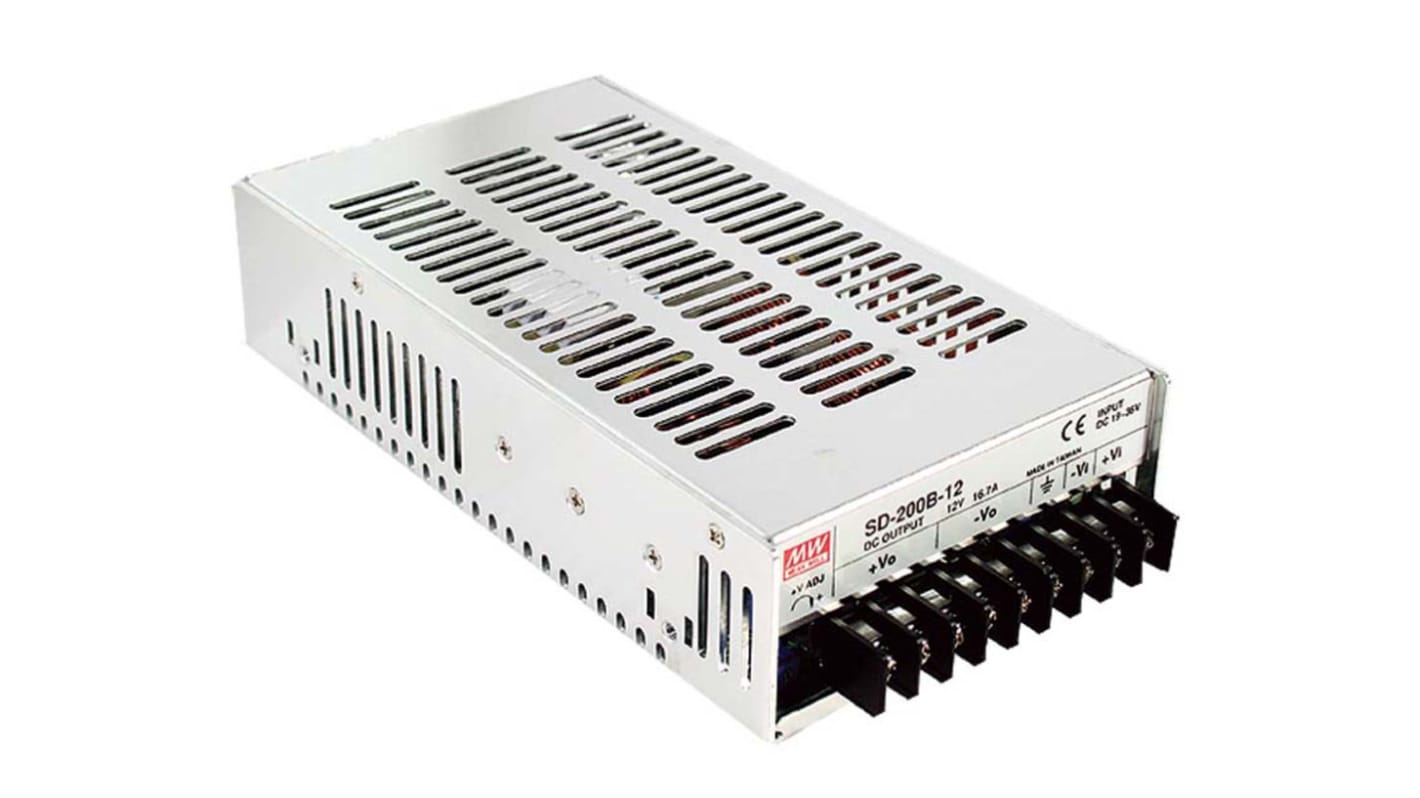

MEAN WELL DC-DC Converter, 12V dc/ 16.7A Output, 19 → 36 V dc Input, 200W, Chassis Mount, +60°C Max Temp -20°C
- RS Stock No.:
- 678-3603
- Distrelec Article No.:
- 169-26-192
- Mfr. Part No.:
- SD-200B-12
- Brand:
- MEAN WELL
Subtotal (1 unit)*
£71.56
(exc. VAT)
£85.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 12 unit(s) shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £71.56 |
*price indicative
- RS Stock No.:
- 678-3603
- Distrelec Article No.:
- 169-26-192
- Mfr. Part No.:
- SD-200B-12
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 19 → 36 V dc | |
| Power Rating | 200W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 16.7A | |
| Mounting Type | Chassis Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 11 → 16V | |
| Isolation Voltage | 1.5kV ac | |
| Depth | 50mm | |
| Length | 215mm | |
| Width | 115mm | |
| Load Regulation | ±1% | |
| Standards Met | 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | |
| Minimum Temperature | -20°C | |
| Efficiency | 82% | |
| Maximum Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Output Voltage 12V dc | ||
Input Voltage Range 19 → 36 V dc | ||
Power Rating 200W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 16.7A | ||
Mounting Type Chassis Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 11 → 16V | ||
Isolation Voltage 1.5kV ac | ||
Depth 50mm | ||
Length 215mm | ||
Width 115mm | ||
Load Regulation ±1% | ||
Standards Met 3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A | ||
Minimum Temperature -20°C | ||
Efficiency 82% | ||
Maximum Temperature +60°C | ||
SD- 200 Series Single Output Enclosed Regulated Isolated DC-DC Converter
Features
- High reliability
- Wide 2:1 input voltage range
- Regulated outputs
- Easy installation - screw terminals
- Adjustable output voltage
- EMC meets EN 55022 Class B
- LED power-on indicator
- Short circuit, overload and overvoltage protection
- 1.5kV input / output isolation
Note
De-rating below 0 and above 40°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
