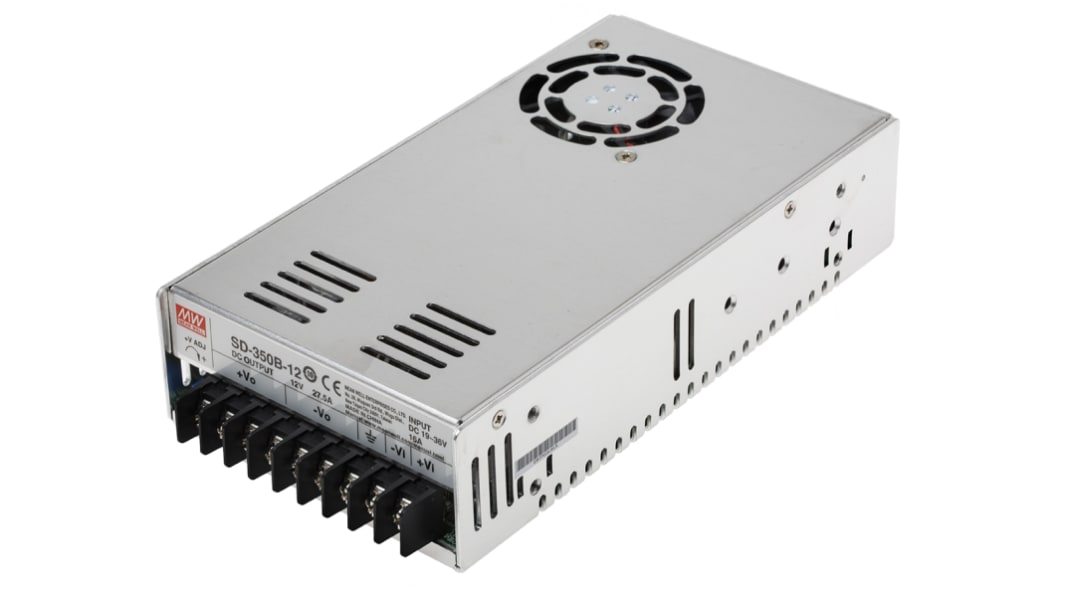

MEAN WELL SD-350 DC/DC Converter, 12V dc/ 0 A, 36V dc Input, 19V Input 330 W, Surface, 60 °C Max Temp -20 °C Min Temp
- RS Stock No.:
- 491-245
- Distrelec Article No.:
- 303-86-479
- Mfr. Part No.:
- SD-350B-12
- Brand:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
£122.86
(exc. VAT)
£147.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 12 unit(s) shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £122.86 |
| 5 - 9 | £119.78 |
| 10 - 24 | £116.71 |
| 25 - 49 | £113.64 |
| 50 + | £104.42 |
*price indicative
- RS Stock No.:
- 491-245
- Distrelec Article No.:
- 303-86-479
- Mfr. Part No.:
- SD-350B-12
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 19V | |
| Output Current 1 | 0A | |
| Output Current 2 | 27.5A | |
| Mount Type | Surface | |
| Input Ratio | 2:1 | |
| Number of Outputs | 1 | |
| MTBF | 1705600h | |
| Ripple and Noise | 120mV Pk-Pk | |
| Output Voltage Adjustment Range | 16 V | |
| Isolation Voltage | 1.5kV ac | |
| Maximum Output Power | 330W | |
| Length | 215mm | |
| Depth | 50mm | |
| Width | 115mm | |
| Series | SD-350 | |
| Standards/Approvals | EN, EAC | |
| Weight | 1.1kg | |
| Maximum Operating Temperature | 60°C | |
| Efficiency | 80% | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 19V | ||
Output Current 1 0A | ||
Output Current 2 27.5A | ||
Mount Type Surface | ||
Input Ratio 2:1 | ||
Number of Outputs 1 | ||
MTBF 1705600h | ||
Ripple and Noise 120mV Pk-Pk | ||
Output Voltage Adjustment Range 16 V | ||
Isolation Voltage 1.5kV ac | ||
Maximum Output Power 330W | ||
Length 215mm | ||
Depth 50mm | ||
Width 115mm | ||
Series SD-350 | ||
Standards/Approvals EN, EAC | ||
Weight 1.1kg | ||
Maximum Operating Temperature 60°C | ||
Efficiency 80% | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- CN
SD- 350 Series Single Output Enclosed Regulated Isolated DC-DC Converter
High reliability
Wide 2:1 input voltage range
Regulated outputs
Easy installation - screw terminals
Adjustable output voltage
EMC meets EN 55022 Class B
LED power-on indicator
Short circuit, overload and overvoltage protection
1.5kV input / output isolation
Note
De-rating below 0 and above 40°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
