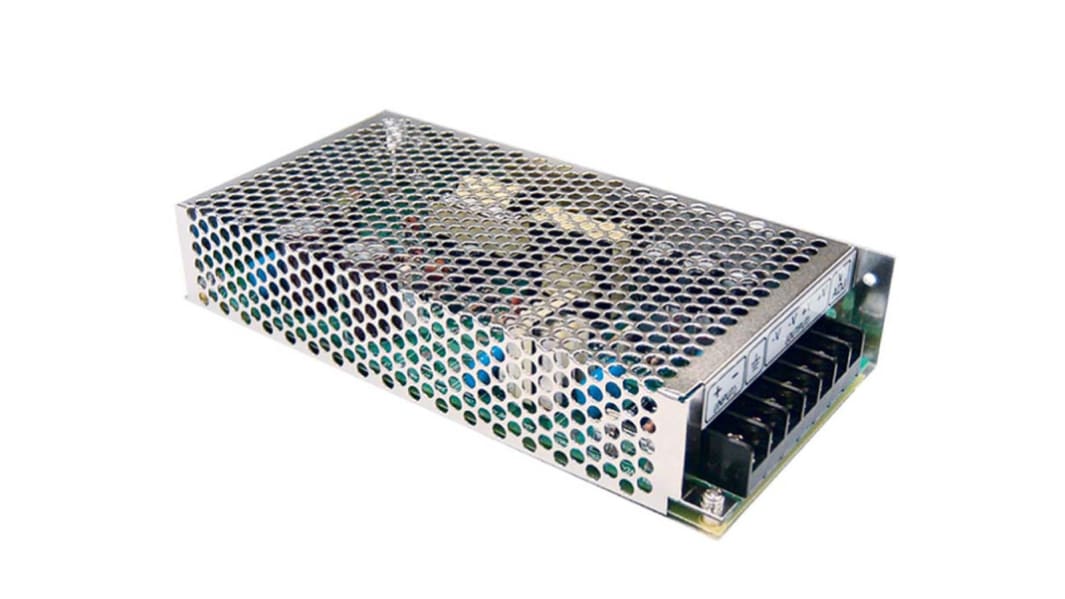

    Mean Well DC-DC Converter, 5V dc/ 20A Output, 19 → 36 V dc Input, 100W, Chassis Mount

    RS Stock No.:
    678-3587
    Mfr. Part No.:
    SD-100B-5
    Brand:
    Mean Well
    Mean Well
    View all DC-DC Converters
    7 In stock - FREE next working day delivery available
    Add to Basket
    Units

    Added

    Price Each

    £45.24

    (exc. VAT)

    £54.29

    (inc. VAT)

    UnitsPer unit
    1 - 4£45.24
    5 - 9£44.11
    10 - 24£42.98
    25 - 49£41.85
    50 +£38.45
    RS Stock No.:
    678-3587
    Mfr. Part No.:
    SD-100B-5
    Brand:
    Mean Well

    Legislation and Compliance


    Product Details

    SD-100 Series Single Output Enclosed Regulated Isolated DC-DC Converter


    High reliability
    Wide 2:1 input voltage range
    Regulated outputs
    Easy installation - screw terminals
    Adjustable output voltage
    EMC meets EN 55022 Class B
    LED power-on indicator
    Short circuit, overload and overvoltage protection
    1.5kV input / output isolation

    Note

    Stock nos. 678-3587, 491-241 & 183-679 de-rate below 0 and above 30°C.
    Stock nos. 678-3580, 491-239, 678-3584 & 678-3593 de-rate below 0 and above 40°C.
    Stock nos. 183-657, & 183-708 de-rate below 0 and above 50°C.
    MTBF to MIL-HDBK-217F (25°C).

    Specifications

    AttributeValue
    Output Voltage5V dc
    Input Voltage Range19 → 36 V dc
    Power Rating100W
    Input Voltage Nominal24 V dc
    Output Current20A
    Mounting TypeChassis Mount
    Number of Outputs1
    Output Voltage Adjustment Range4.5 → 5.5V
    IsolatedYes
    Isolation Voltage1.5kV ac
    Length199mm
    Depth38mm
    Width98mm
    Load Regulation±0.5%
    Minimum Temperature-10°C
    Efficiency74%
    Maximum Temperature+60°C
    Standards Met3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A
