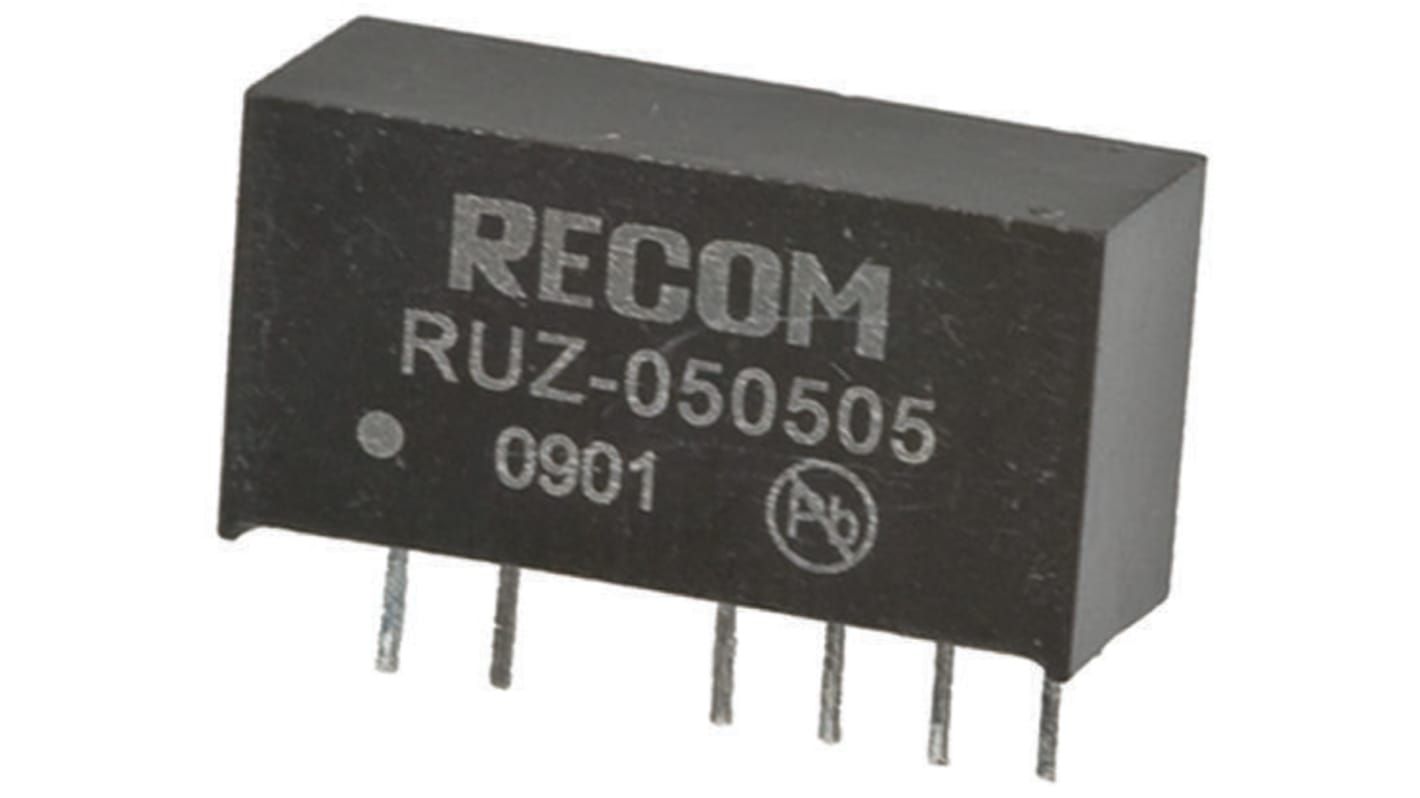

Recom RUZ DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 672-8858P
- Mfr. Part No.:
- RUZ-050505
- Brand:
- Recom
Bulk discount available
Subtotal 5 units (supplied in a tube)*
£62.35
(exc. VAT)
£74.80
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 25 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 - 9 | £12.47 |
| 10 - 24 | £12.09 |
| 25 - 49 | £11.70 |
| 50 + | £11.32 |
*price indicative
- RS Stock No.:
- 672-8858P
- Mfr. Part No.:
- RUZ-050505
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 3.2kV ac | |
| Depth | 10.2mm | |
| Length | 19.65mm | |
| Series | RUZ | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 3.2kV ac | ||
Depth 10.2mm | ||
Length 19.65mm | ||
Series RUZ | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
Recom 2W SIP Dual Output Unregulated Isolated DC-DC Converter - RUZ Series
Unregulated outputs
1kVdc isolation
Dual output from a single input rail
Power sharing on outputs
Short circuit protected
No external components required
Efficiency at full load to 82%
UL94V-0 package material
SIP7 package
1kVdc isolation
Dual output from a single input rail
Power sharing on outputs
Short circuit protected
No external components required
Efficiency at full load to 82%
UL94V-0 package material
SIP7 package
Note
MTBF to MIL-HDBK 217F.
Operating temperature is without derating.
Operating temperature is without derating.
Standards
EN-60950-1
