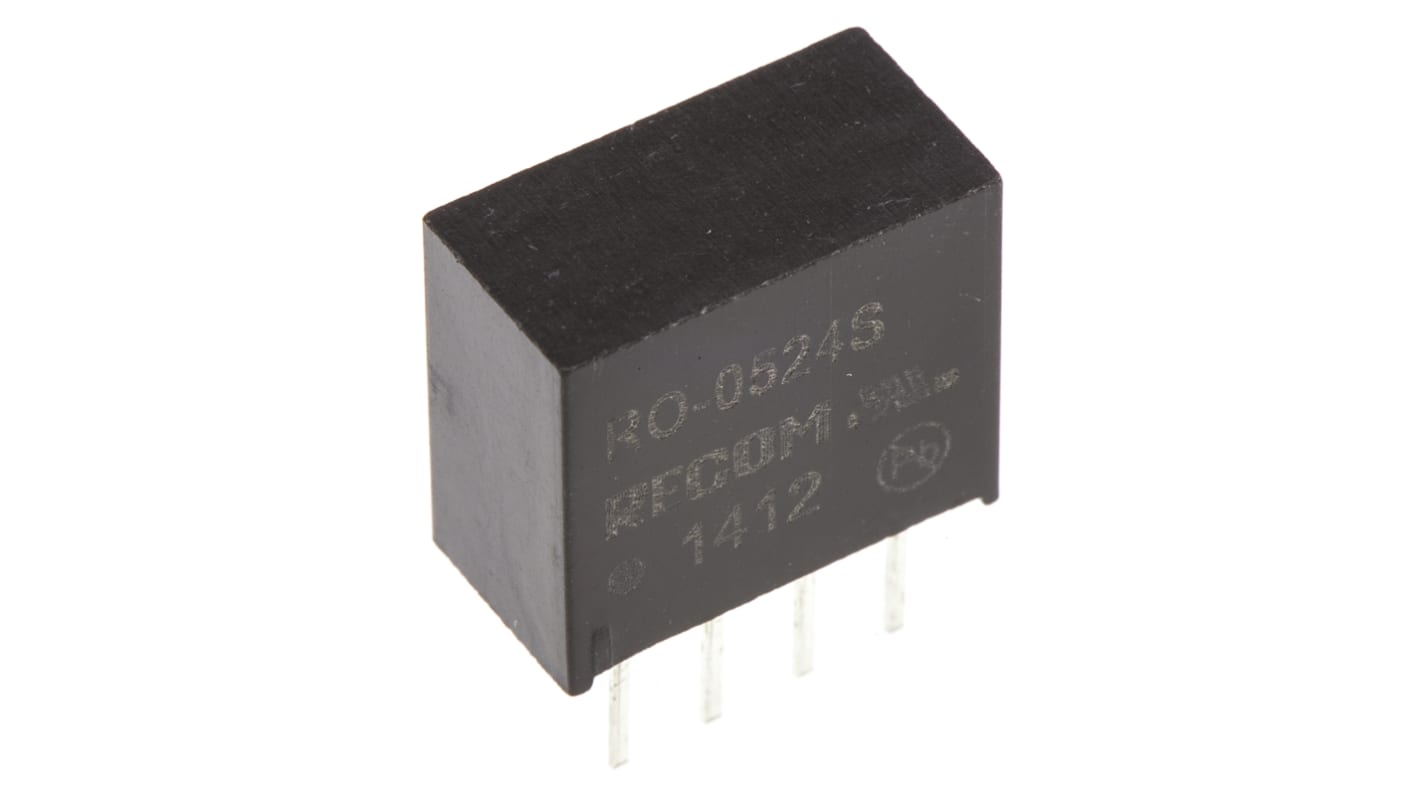

Recom RO DC-DC Converter, 24V dc/ 42mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£5.54

(exc. VAT)

£6.65

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 49 unit(s) ready to ship
  • Plus 13 unit(s) ready to ship from another location
  • Plus 53 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£5.54
5 - 9£5.39
10 - 24£5.21
25 - 49£5.05
50 +£4.88

*price indicative

Packaging Options:
RS Stock No.:
672-8773
Mfr. Part No.:
RO-0524S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage

24V dc

Input Voltage Range

4.5 → 5.5 V dc

Power Rating

1W

Input Voltage Nominal

5 V dc

Output Current

42mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

SIP

Isolation Voltage

1kV dc

Length

11.5mm

Depth

10mm

Width

6mm

Series

RO

Load Regulation

0.15

Minimum Temperature

-40°C

Standards Met

REACH Compliant

Efficiency

85%

Maximum Temperature

+85°C

COO (Country of Origin):
TW

RECOM DC-DC Converter, 1kV DC Isolation Voltage, 1.4g Weight - RO Series - RO-0524S


If stable power delivery to your PCB-linked parts is what you're looking for, this DC-DC converter from RECOM delivers. It boosts and cleans 5V DC supply signals, removing noise and ripples to deliver a clear 24V DC output. The unit is 85% efficient, so you can rest assured minimal energy is lost to heat. It comes in a non-conductive plastic housing that does double-duty by providing impact resistance as well as insulation to prevent electric shocks. A 1W power rating makes this the right choice for light-duty applications.

Features & Benefits


• Compact dimensions of 11.5 (L) x 6.0 (W) x 10.0mm (H) ensure it fits right into setups with limited space
• Through-hole mounting achieves a permanent, vibration-proof link to your board
• Designed to offer long-term performance, thanks to a mean time between failures of 985,000 hours at +25°C
• Light weight of 1.4g to minimise board strain

Applications


• Gaming consoles
• Medical equipment
• Process and packaging industry

What's the isolation voltage of this DC-DC converter?


Isolation voltage is the amount of surge voltage that the unit can stop from reaching your circuit. For this component, the value is 1kV DC.
