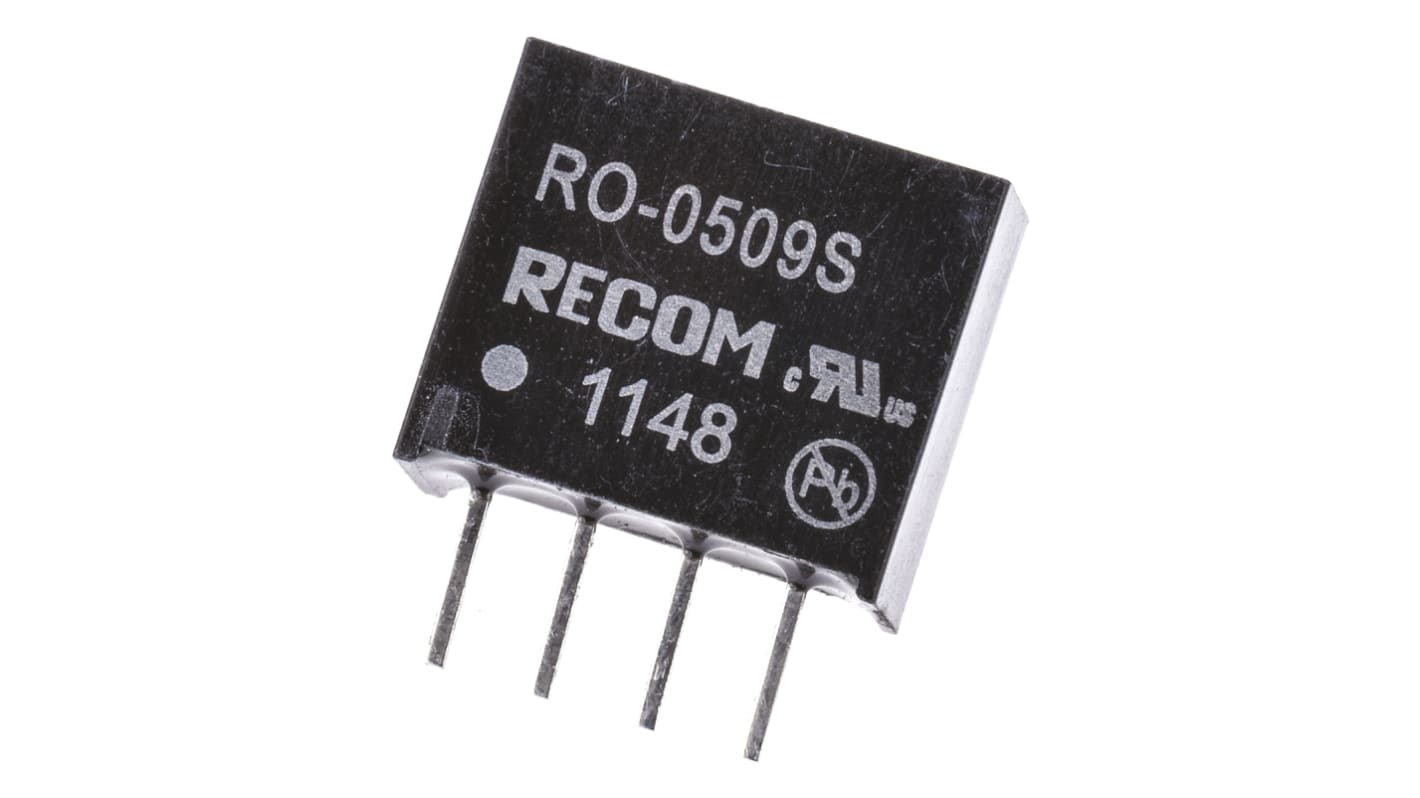

Recom RO DC-DC Converter, 9V dc/ 111mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 672-8760
- Mfr. Part No.:
- RO-0509S
- Brand:
- Recom
17 In stock - FREE next working day delivery available
Price Each
£5.59
(exc. VAT)
£6.71
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £5.59 |
| 5 - 9 | £5.42 |
| 10 - 24 | £5.25 |
| 25 - 49 | £5.09 |
| 50 + | £4.92 |
- RS Stock No.:
- 672-8760
- Mfr. Part No.:
- RO-0509S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RECOM DC-DC Converter, 1kV DC Isolation Voltage, 1.2% Line Regulation - RO Series - RO-0509S
Be sure your power supply steps up to the job with this DC-DC converter from RECOM. It takes a 5V DC input and boosts it to a 9V DC output. This lets you feed components such as LCD displays, drivers and transistors without a glitch. Thanks to 1kV isolation and integral short-circuit protection, you can be sure the unit works safely. As it's fully encapsulated, it's reliable in harsh environments and can operate in temperatures between -40°C and +85°C without losing performance.
Features & Benefits
• Through-hole mounting with standard pinout means it slots easily onto your board
• Up to 80% efficiency at full load for minimal waste
• Flame-retardant package helps prevent fire from spreading
• Up to 80% efficiency at full load for minimal waste
• Flame-retardant package helps prevent fire from spreading
Applications
• Audio equipment
• Test and instrumentation devices
• Portable appliances
• Test and instrumentation devices
• Portable appliances
What's the benefit of using a non-regulated DC-DC converter?
A non-regulated DC-DC converter uses fewer components, so the overall package is compact. This unit has dimensions of 11.5 (L) x 6 (W) x 10mm (H), making it a doddle to squeeze onto packed boards where there's a lot going on.
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 9V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 111mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP |
| Isolation Voltage | 1kV dc |
| Depth | 10mm |
| Width | 6mm |
| Length | 11.5mm |
| Series | RO |
| Minimum Temperature | -40°C |
| Standards Met | REACH Compliant |
| Maximum Temperature | +85°C |
