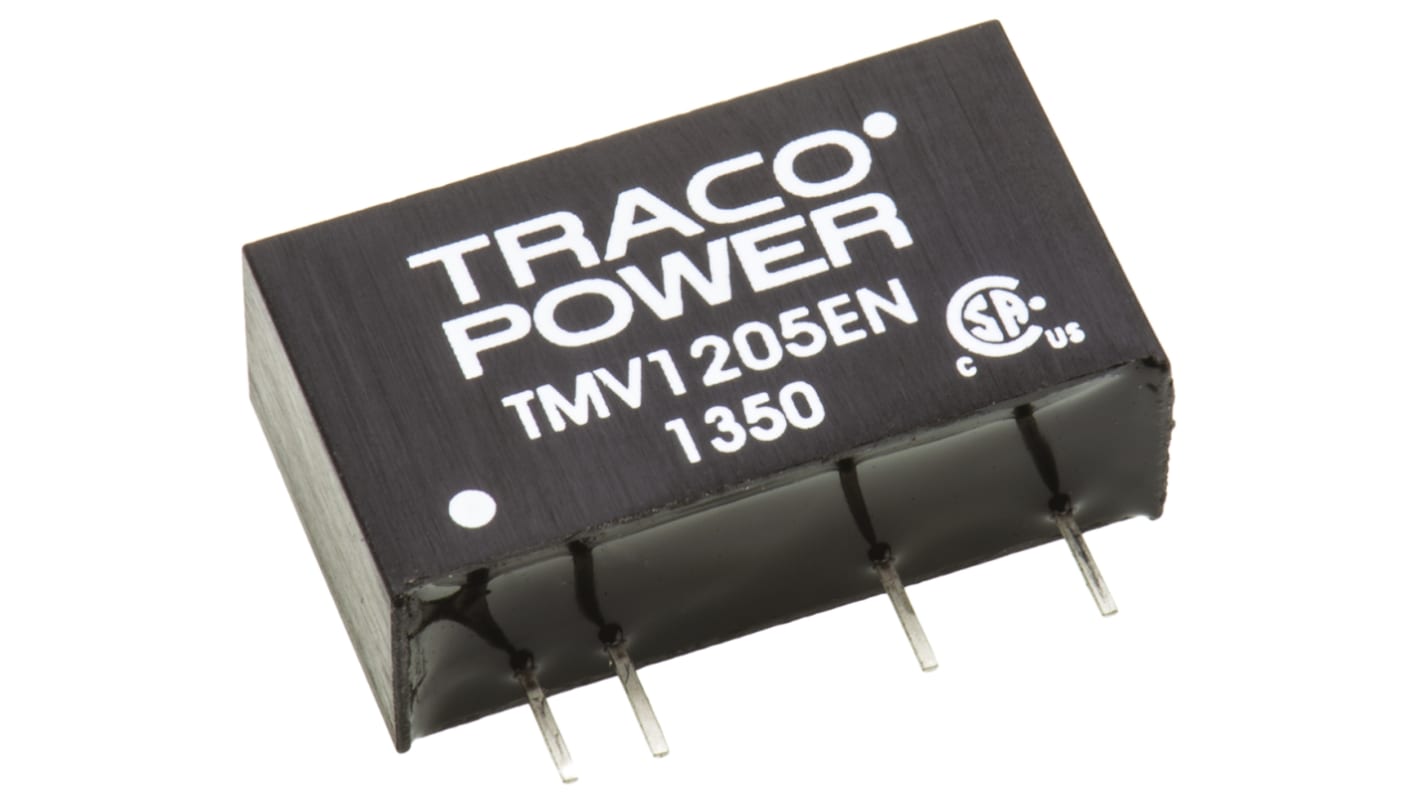

TRACOPOWER TMV EN DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 666-4098
- Mfr. Part No.:
- TMV 1205EN
- Brand:
- TRACOPOWER
Price Each
£9.09
(exc. VAT)
£10.91
(inc. VAT)
4 In stock - FREE next working day delivery available
Units | Per unit |
---|---|
1 - 4 | £9.09 |
5 - 9 | £8.81 |
10 - 24 | £8.54 |
25 - 49 | £8.18 |
50 + | £7.81 |
- RS Stock No.:
- 666-4098
- Mfr. Part No.:
- TMV 1205EN
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMV-EN Series
The Traco TMV-EN Series is a family of 1W single/dual output semi-regulated DC/DC converters with an ultra- miniature design and high input/output isolation of 6000Vdc. These semi-regulated DC/DC converters are ideal for use within power drivers where unregulated DC/DC converters do not meet the input voltage range at load change. The TMV-EN series is ideal for applications such as distributed power systems, mixed analog/digital subsystems, portable test equipments, local power networks and battery backed systems.
High isolation test voltage, 6kV peak
Reinforced insulation, rated for 250Vrms working voltage
Unregulated outputs
Short circuit protection, 1sec (limited)
UL94V-0 package material
Small footprint SIP-7 package
Reinforced insulation, rated for 250Vrms working voltage
Unregulated outputs
Short circuit protection, 1sec (limited)
UL94V-0 package material
Small footprint SIP-7 package
Note
De-rating 4% per °C above 70°C.
MTBF to MIL-HDBK-217F (25°C).
MTBF to MIL-HDBK-217F (25°C).
Standards
IEC/EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1-03
Approvals
CB, CSA
![](https://media.rs-online.com/t_line/L6664082-01.gif)
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 10.8 → 13.2 V dc |
Power Rating | 1W |
Input Voltage Nominal | 12 V dc |
Output Current | 200mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP 7 |
Isolation Voltage | 3kV dc |
Depth | 12.5mm |
Length | 22mm |
Railway Approved | No |
Series | TMV EN |
Load Regulation | ±10% |
Minimum Temperature | -40°C |
Medical Approved | Yes |
Maximum Temperature | +85°C |
