Murata Power Solutions NMF DC/DC Converter, 15V dc/ 67 mA, 5V dc Input, 4.75V Input 1 W, Through Hole, 70 °C Max Temp 0
- RS Stock No.:
- 544-3109
- Mfr. Part No.:
- NMF0515SC
- Brand:
- Murata Power Solutions
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 544-3109
- Mfr. Part No.:
- NMF0515SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 4.75V | |
| Maximum Input Voltage | 5V dc | |
| Output Current 1 | 67mA | |
| Output Current 2 | 67mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 316000h | |
| Ripple and Noise | 60mV Pk-Pk | |
| Output Voltage Adjustment Range | 4.75/5.25 V | |
| Number of Pins | 7 | |
| Isolation Voltage | 1kV dc | |
| Maximum Output Power | 1W | |
| Package Type | SIP | |
| Width | 10mm | |
| Length | 19.5mm | |
| Depth | 10mm | |
| Weight | 2.1g | |
| Standards/Approvals | RoHS | |
| Series | NMF | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Efficiency | 62% | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 4.75V | ||
Maximum Input Voltage 5V dc | ||
Output Current 1 67mA | ||
Output Current 2 67mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 316000h | ||
Ripple and Noise 60mV Pk-Pk | ||
Output Voltage Adjustment Range 4.75/5.25 V | ||
Number of Pins 7 | ||
Isolation Voltage 1kV dc | ||
Maximum Output Power 1W | ||
Package Type SIP | ||
Width 10mm | ||
Length 19.5mm | ||
Depth 10mm | ||
Weight 2.1g | ||
Standards/Approvals RoHS | ||
Series NMF | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Efficiency 62% | ||

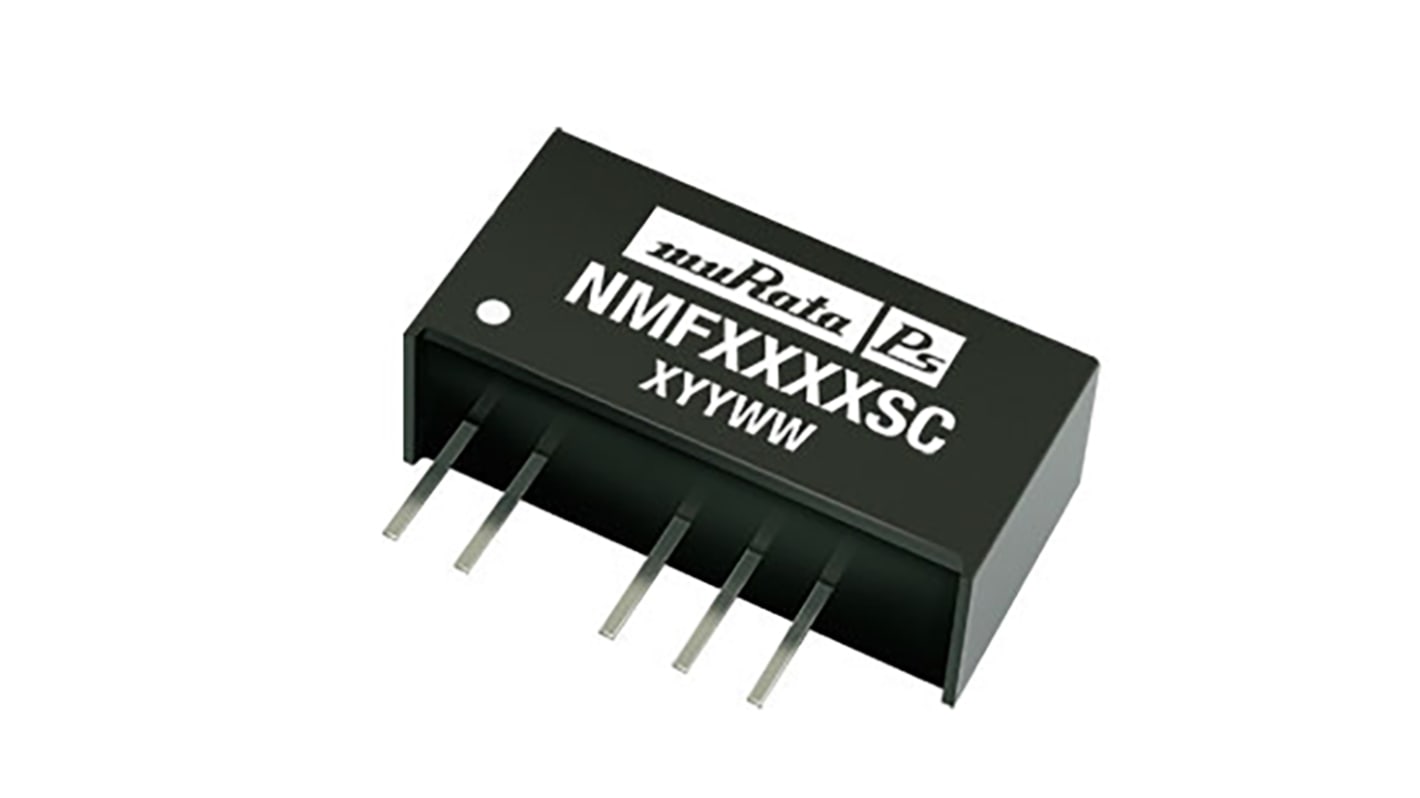

Murata 1W SIP Single Output Regulated Isolated DC-DC Converter - NMF Series
Regulated output
1kV input/output isolation
No external components required
Internal SMD construction
SIP7 plastic package
UL 94V-0 package material
Murata Power Solutions - SIP
Note
MTBF to MIL-HDBK-217F (25°C).
