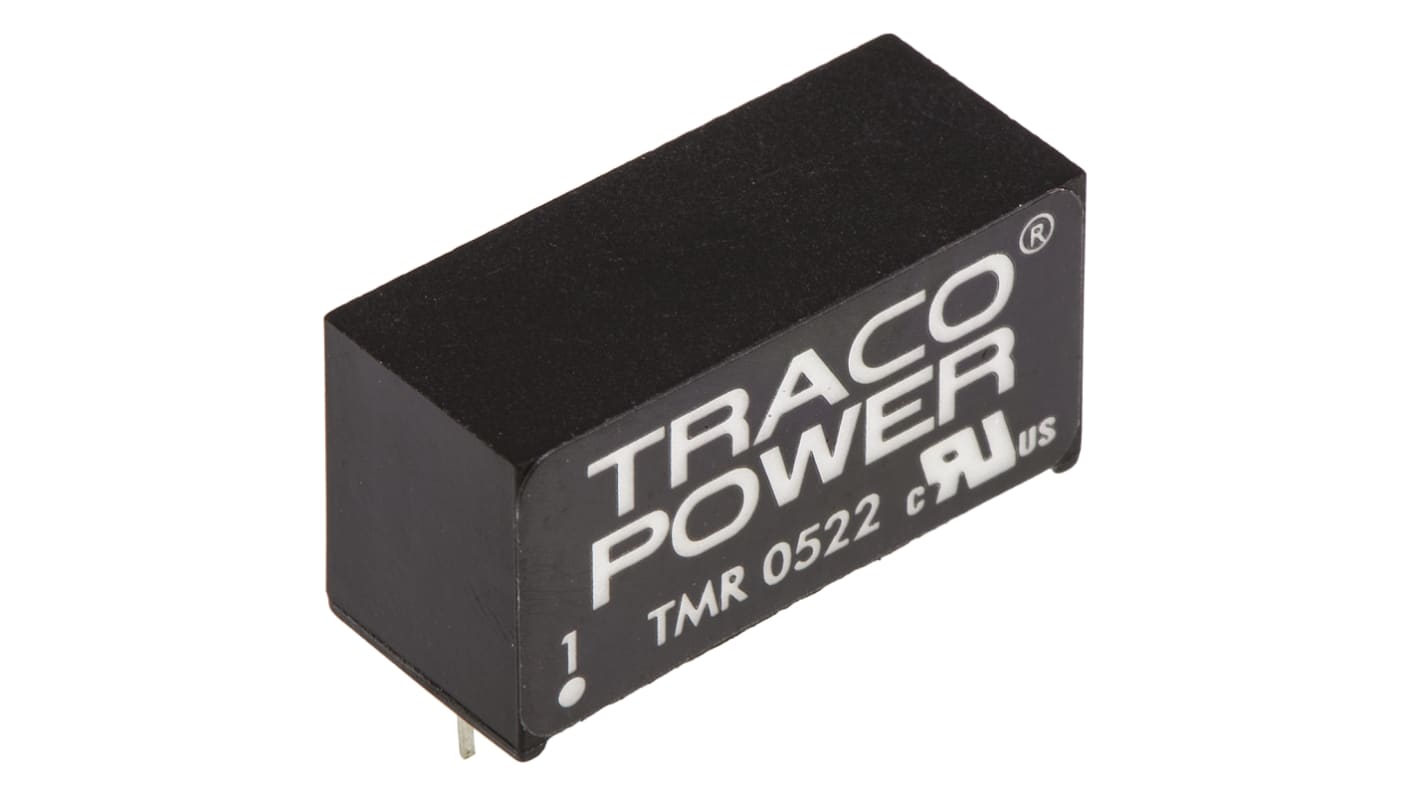

TRACOPOWER TMR 2 DC-DC Converter, ±12V dc/ 83mA Output, 4.5 → 9 V dc Input, 2W, PCB Mount, +92°C Max Temp -40°C

RS Stock No.:: 510-6197
Mfr. Part No.:: TMR 0522
Brand:: TRACOPOWER

TRACOPOWER TMR 2 DC-DC Converter, ±12V dc/ 83mA Output, 4.5 → 9 V dc Input, 2W, PCB Mount, +92°C Max Temp -40°C

19 In stock - FREE next working day delivery available

4 available from Europe for delivery within 2 working day(s).

Price Each

£12.89

(exc. VAT)

£15.47

(inc. VAT)

Units	Per unit
1 - 4	£12.89
5 - 9	£12.50
10 - 24	£12.12
25 - 49	£11.60
50 +	£11.09

RS Stock No.:: 510-6197
Mfr. Part No.:: TMR 0522
Brand:: TRACOPOWER

Traco 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - TMR 2 Series

The Tracopower TMR series is a family of isolated 2W DC-DC converter modules with regulated output, featuring wide 2:1 input voltage ranges. This DC-DC converter comes in a compact SIP-8 plastic package with small footprint occupying only 2.0 cm2 (0.3 square in.) of board space. An excellent efficiency allows –40°C to +85°C operation temperatures. Further features of the TMR series include remote On/Off control and continuous short circuit protection. The ultra-compact dimensions of these DC-DC converters make them an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.

Wide 2:1 input voltage range
Compact SIP-8 package
Small footprint
Full SMD design
Temperature range –40° to +85°C
High efficiency
Excellent load and line regulation
Indefinite short-circuit protection
I/O isolation 1000VDC
Remote On/Off control
Fully RoHS compliant
3-year product warranty

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL

TRACOPOWER TMR 2 Series DC-DC Converter, 82% Efficiency, 5V DC Nominal Input Voltage - TMR 0522

This DC-DC converter from TRACOPOWER is a high-efficiency, isolated converter designed for a 5V input voltage. With a power rating of 2W, it features dual outputs with a compact SIP-8 package for through-hole mounting. The converter offers excellent load and line regulation, along with remote On/Off control and continuous short circuit protection, making it ideal for use in various electronic applications.

Features & Benefits

• Compact SIP-8 package for space-saving installation
• High efficiency operation from -40°C to +85°C
• Remote On/Off control for added convenience
• Indefinite short-circuit protection for enhanced safety
• I/O isolation of 1500VDC for reliable performance

Applications

• Suitable for use in communication equipment
• Ideal for instrumentation • Can be used for industrial electronics projects

Can this converter handle a wide input voltage range?

Yes, this DC-DC converter is designed to operate within a wide 2:1 input voltage range.

Does this converter provide isolation for enhanced safety?

Yes, this converter offers an isolation voltage of 1500VDC for secure performance.

What is the operating temperature range for this converter?

It can operate in temperatures ranging from -40°C to +85°C.

Does this converter come with short-circuit protection?

Yes, this converter features continuous short-circuit protection for added safety.

Is this converter suitable for industrial applications?

Yes, this converter is ideal for use in various industrial electronics projects.

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	4.5 → 9 V dc
Power Rating	2W
Input Voltage Nominal	5 V dc
Output Current	83mA
Mounting Type	PCB Mount
Isolated	Yes
Number of Outputs	2
Package	SIP 8
Isolation Voltage	1.6kV dc
Width	9.1mm
Length	21.8mm
Depth	11.2mm
Series	TMR 2
Load Regulation	±1%
Minimum Temperature	-40°C
Standards Met	cULus Listed, IEC/EN 60950-1, UL 60950-1
Efficiency	82%
Maximum Temperature	+92°C
