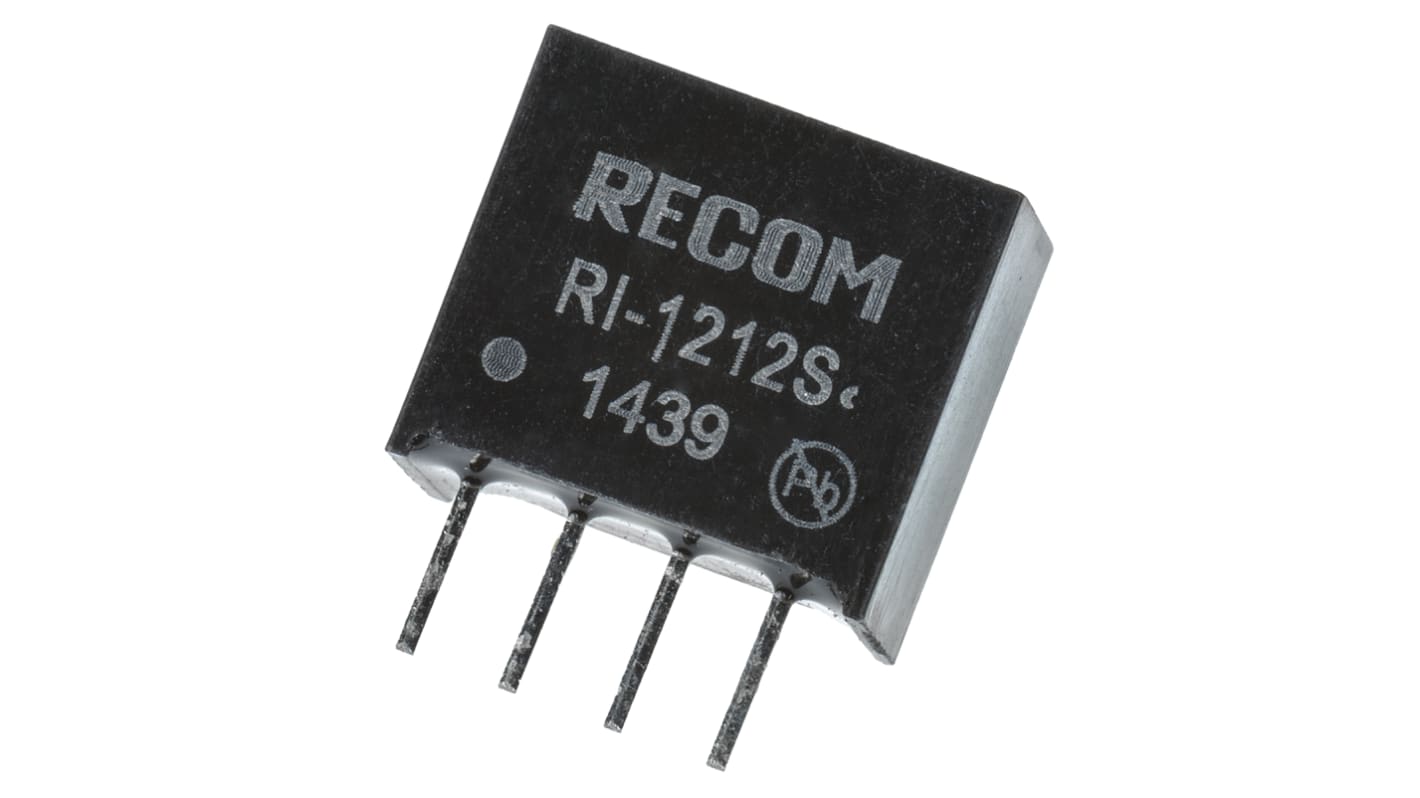

Recom RI DC-DC Converter, 12V dc/ 167mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 459-8163
- Mfr. Part No.:
- RI-1212S
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£7.13
(exc. VAT)
£8.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 42 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £7.13 |
| 5 - 9 | £6.92 |
| 10 - 24 | £6.70 |
| 25 - 49 | £6.49 |
| 50 + | £6.27 |
*price indicative
- RS Stock No.:
- 459-8163
- Mfr. Part No.:
- RI-1212S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 167mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Length | 11.5mm | |
| Depth | 10.2mm | |
| Width | 7.55mm | |
| Series | RI | |
| Load Regulation | ±10% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 12V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 167mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Length 11.5mm | ||
Depth 10.2mm | ||
Width 7.55mm | ||
Series RI | ||
Load Regulation ±10% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, Voltage Input ±10%, Voltage Output ±5% - RI Series - RI-1212S
Need to isolate your circuit where space is tight? This unregulated DC-DC converter from RECOM will take an input of 12V DC ±10% and output an isolated 12V DC ±5%. That ensures your people and equipment are safe from any dangerous voltages on the supply side. It's housed in a compact SiP package measuring just 11.5 (L) x 7.5 (W) 10.2mm (D). That means the 2-watt converter is packed into a footprint only slightly larger than that of the RO Series 1-watt converters.
Features & Benefits
• 1kVDC isolation protects the load and your people from power surges on the supply side
• Efficiency up to 87% minimises power wastage
• No heatsink needed, helping you build a compact system
• Operating temperature range of -40°C to +85°C means you can use it in harsh industrial environments
• No external components required, for ease of installation
• Efficiency up to 87% minimises power wastage
• No heatsink needed, helping you build a compact system
• Operating temperature range of -40°C to +85°C means you can use it in harsh industrial environments
• No external components required, for ease of installation
Applications
• Medical devices
• Smart lighting
• Vehicle electrics
• Smart lighting
• Vehicle electrics
Is the package fire-safe?
This DC-DC converter is housed in a flame-retardant package that won't burn for more than 10 seconds, helping to prevent the spread of a fire.
